Cradlepoint IBR1700
Cloud-Managed Networking for Police Vehicles, Ambulances, Buses, Fleets & More

Cradlepoint IBR1700

Cradlepoint Products
CradlePoint IBR1700
NetCloud Essentials for Mobile Routers (Prime) with IBR1700-600M, 1-yr
1-yr NetCloud Essentials for Mobile Routers (Prime) with support and IBR1700 router with WiFi (600Mbps modem), no AC power supply or antennas, North America
#MA1-1700600M-NNA
Our Price: $1,299.00
NetCloud Essentials for Mobile Routers (Prime) with IBR1700-600M, 3-yr
3-yr NetCloud Essentials for Mobile Routers (Prime) with support and IBR1700 router with WiFi (600Mbps modem), no AC power supply or antennas, North America
#MA3-1700600M-NNA
Our Price: $1,549.00
NetCloud Essentials for Mobile Routers (Prime) with IBR1700-600M, 5-yr
5-yr NetCloud Essentials for Mobile Routers (Prime) with support and IBR1700 router with WiFi (600Mbps modem), no AC power supply or antennas, North America
#MA5-1700600M-NNA
Our Price: $1,809.00

Click here to jump to more pricing!

Overview:

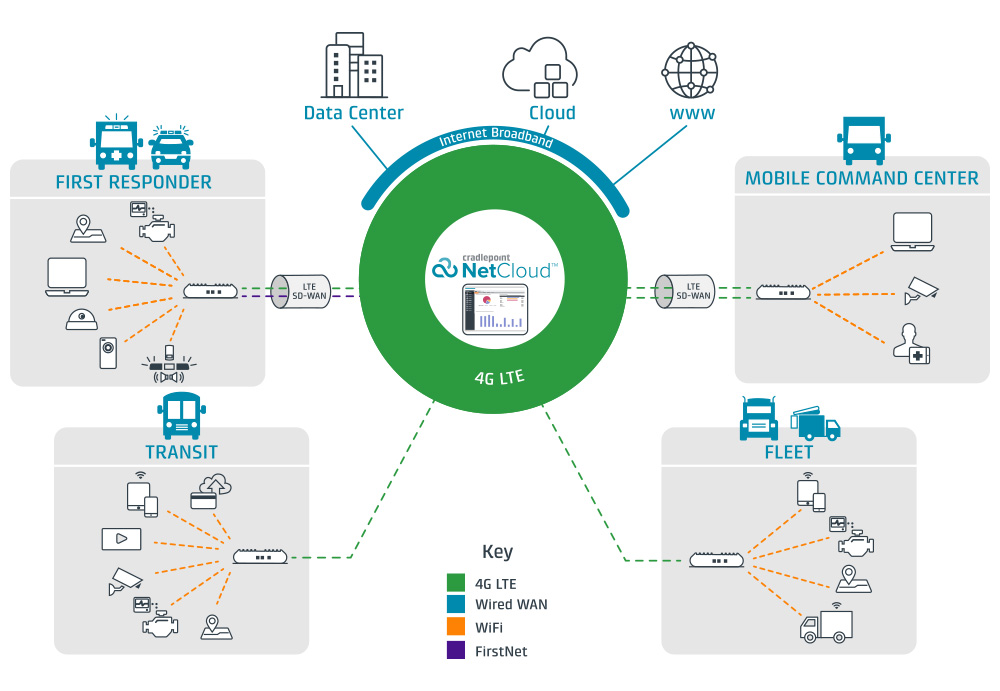

For organizations that depend on field forces and mobile networks—like first responders, transportation departments, utility crews, insurance disaster teams, and many others—secure and reliable 4G LTE connectivity is essential. Vehicles and mobile command centers have become the field communications hub, allowing users to access mission-critical applications and the Internet from anywhere, and keeping data flowing to the cloud from on-board telemetry, sensors, surveillance cameras, and other devices.

feat

Cradlepoint’s Elastic EdgeSM vision provides a blueprint for next-generation mobile networks that deliver pervasive connectivity, cloud-like agility, and software extensibility with enterprise-class visibility, security, and control. All-inclusive NetCloud Solution Packages for Mobile Networks, based on COR Series routers, are flexible, reliable, and cloud-managed.

Ruggedized All-in-One Solution

Purpose-built to withstand extreme environments, the COR Series replaces multiple “boxes” with a ruggedized, all-in-one mobile network solution that is ideal for in-vehicle and command center installations. Each model supports up to two 4G LTE modems, a multi-port Ethernet switch, 802.11ac WiFi, GPS, and ports for ignition and sensor integration. The Linux-based NetCloud OS software provides advanced routing, SD-WAN for LTE, and security functionality. Everything is simple to configure, orchestrate, and manage from the cloud using NetCloud Manager.

Mobile SD-WAN

Cradlepoint brings the reliability and efficiency of SD-WAN technology to mobile networking. NetCloud OS optimizes multi-link 4G LTE connectivity and combines application-based visibility, security, and control with dynamic, policy-based traffic steering based on cellular signal strength, throughput, latency, and data plan consumption. Other unique features include Auto-QoS, intelligent selection of carriers and APNs, and the ability to persist application sessions during periods of temporary signal loss.

GPS & Telematics Integration

Precision GPS and telematics integration enable a wide range of location-based applications, such as Automatic Vehicle Location (AVL), asset tracking with geofencing, and vehicle performance data. With secure data center and cloud connectivity and real-time data, fleet and field managers have a wealth of actionable data at their fingertips to make better-informed decisions—saving time and money while improving business outcomes.

Unified Internet Security

Many mobile networks require strong Internet security for on-board public WiFi and cloud application access. NetCloud OS integrates Unified Threat Management (UTM) for direct Internet access with multi-zone firewall, IPS/IDS and content filtering, as well as Federal Information Processing Standard (FIPS) 140-2 support for public safety and government agencies. Cradlepoint’s unified and cloud-managed approach to mobile network security reduces cost and minimizes risks by eliminating extra hardware, increasing visibility and control, and delivering continuous security updates.

Connect & Protect Mobile & IoT Devices

Many field forces utilize laptops, tablets, and smartphones that are not always connected to a secure mobile network. Deploying NetCloud Perimeter Client on these devices allows users to access the data center and cloud from any Internet connection over a perimeter-secured and encrypted cloud network. For on-board IoT devices such as sensors, cameras, and digital signage, NetCloud Perimeter Gateway on the router provides secure, persistent device-to-cloud connections that can be set up in minutes and are self-optimizing.

Cloud Management Optimized for LTE

NetCloud Manager makes it easy to configure, deploy, and manage a mobile network from anywhere with minimal impact on cellular data, thanks to Cradlepoint’s efficient Stream management protocol that is optimized for LTE. Additionally, advanced analytics provide comprehensive visibility into cellular, application, and WiFi utilization and security—all from a single web console. Now IT organizations can do more with less resources than ever before.

Cradlepoint Mobile Solutions are First Responder Ready

As public safety and first responder organizations around the country begin to move to public safety wireless networks such as FirstNet®, they can rely on Cradlepoint for their in-vehicle connectivity solutions. A trusted provider of mobile solutions for state and local organizations around the US, Cradlepoint is proud to connect and serve our nation’s first responders, giving them reliable and rugged solutions that they can count on.

Extensibility Dock

Mobile deployments come in all sizes. That is why Cradlepoint offers an Extensibility Dock for the COR IBR900 Series that extends connectivity with a second, modular 4G LTE modem; two Ethernet ports; and programmable, general purpose I/O ports. The Extensibility Dock allows customers to configure the right size solution for each specific deployment, or easily expand a vehicle’s capabilities at any time as uptime or connectivity needs change.

Features:

WAN:

  • Dual-modem capable with MC400 modem slot for 2nd modem
  • 600M: LTE Advanced 600 Mbps LTE/HSPA+ (SIM-based, Auto-carrier Selection for all North American, European, and Asia Pacific carriers; includes support for 700 MHz Band 28 in Asia Pacific)
  • WiFi as WAN, with WPA2 Enterprise Authentication for WiFi as WAN2
  • 3rd radio for dedicated back haul
  • WiFi client mode
  • Failover/Failback
  • Load Balancing
  • Advanced Modem Failure Check
  • WAN Port Speed Control
  • WAN/LAN Affinity
  • IP Passthrough
  • Standby
  • Multi-PDN
  • Smart WAN Selection
  • Serial PAD mode
  • DynDNS
  • AutoQoS
  • QoS (DSCP and Priority Queuing)

LAN:

  • VLAN 802.1Q
  • DHCP Server, Client, Relay
  • DNS and DNS Proxy
  • DMZ
  • Multicast/Multicast Proxy
  • MAC Address Filtering
  • STP2
  • GPS broadcast to LAN

WIFI:

  • Dual-Band, Simultaneous Tri Band 2×2 2.4GHz + 2×2 5GHz + 4×4 5GHz WiFi
  • 802.11 a/b/g/n/ac wave 2 MU-MIMO and 256 QAM support
  • Up to 192 connected devices (64 per radio – one @ 2.4 GHz and two @ 5 GHz)
  • Multiple SSIDs: 2 per radio (6 total)
  • WPA2 Enterprise (WiFi)
  • Hotspot/Captive Portal
  • SSID-based Priority
  • Client Mode for faster data offload

MANAGEMENT:

  • Cradlepoint NetCloud Manager
    • Secure remote cloud configuration
    • Real-time diagnostics/troubleshooting
    • Remote connect / Out-of-Band Management
    • Geoview location services
    • Pool data alerts
  • Client and Traffic Visibility and Control
  • Web UI, API, CLI
  • Active GPS support
  • Data usage alerts
  • Advanced troubleshooting (support)
  • Device alerts
  • SDK support
  • SNMP
  • SMS control
  • Serial redirector
  • Auto APN Recovery
  • Syslog

VPN & ROUTING

  • IPsec Tunnel – up to ten concurrent sessions
  • IKEv2 support (includes MOBIKE)
  • OpenVPN (SSL VPN)
  • L2TP
  • GRE Tunnel
  • OSPF/BGP/RIP
  • Route Filters (Access Control Lists, Prefix Filters, Route Maps, Communities for BGP)
  • Policy-based Routing
  • Per-Interface Routing
  • Static Routing
  • NAT
  • NAT-less Routing
  • WAN Affinity
  • Virtual Server/Port Forwarding
  • VTI Tunnel Support
  • NEMO/DMNR
  • IPv6
  • VRRP
  • STP
  • NHRP
  • OpenVPN support

SECURITY:

  • RADIUS and TACACS+ support
  • NetCloud Perimeter compatible
  • 802.1x authentication for Ethernet
  • Certificate support
  • Application-level gateways
  • MAC Address Filtering
  • Zscaler Internet Security Compatible
  • Advanced Security Mode (local user management only)

Specifications:


Cradlepoint IBR1700 Series Specifications
WAN
  • Dual-modem capable with MC400 slot
  • Integrated 600M LTE Advanced 600 Mbps modem (with DC-HSPA+ failover)
  • Five LAN/WAN switchable 10/100/1000 Ethernet ports – one default WAN (cable/DSL/T1/satellite/Metro Ethernet)
  • WiFi as WAN, Metro WiFi; 2×2 MIMO “N” 2.4 GHz or 4×4 5 GHz; 802.11 a/b/g/n/ac wave 2
LAN
  • Simultaneous Tri-Band WiFi; 802.11 a/b/g/n/ac wave 2
  • Five LAN/WAN switchable 10/100/1000 Ethernet ports – four default LAN
Ports
  • Power + GPIO (1 input / ignition sense input, 1 output)
  • 20-pin power + GPIO port:
    • Alternate DC power input
    • Two analog inputs
    • One input / ignition sense input
    • Four configurable input/output
    • One low current 5V output (50mA max)
  • USB 2.0
  • Five Ethernet LAN/WAN
  • Two cellular antenna connectors (SMA)
  • One active GPS antenna connector (SMA)
  • Six WiFi antenna connectors (R-SMA)
Temperature -30 °C to 70 °C (-22 °F to 158 °F) operating
Humidity (non-condensing)
  • 5% to 95% operating
  • 5% to 95% storage
Power
  • DC input steady state voltage range: 9–33VDC (requires 5.0A inline fuse for vehicle installations)
  • Reverse polarity and transient voltage protection per ISO 7637-2
  • Ignition sensing (automatic ON and time-delay OFF)
WIFI POWER (FCC):
  • 2402–2483.5 MHz (2.4 GHz band): 29.2 dBm conducted
  • 5150–5250 MHz (5 GHz band 1): 29.0 dBm conducted
  • 5725–5850 MHz (5 GHz band 3): 30.0 dBm conducted
Accessories
  • Power & Mounting
    • Two meter locking power and GPIO cable (direct wire) (Part # 170585-000)
    • COR extended temperature (-30C to 70C) power supply (line cord not included) Part #: 170648-001
    • US line cord Part #: 170623-001
    • IBR1700 Rack-Mount Brackets Part #: 170750-000
  • ANTENNAS – 3G/4G Modem, WiFi, & GPS:
    • 700 MHz – 2700 MHz Wide Band Directional Antenna (Yagi/Log- Periodic) Part #: 170588-000
    • 12” Mag-Mount Antenna with SMA Male Connector Part #: 170605-000
    • 4” Mini Mag-Mount Antenna with SMA Male Connector Part #: 170606-000
    • 2.4/5 GHz Dual-band, Dual-concurrent WiFi Antenna Part #: 170628-000 (WiFi models only)
    • Universal 3G/4G/LTE Modem Antenna Part #: 170649-000
    • GPS Screw-Mount Antenna Part #: 170651-000
    • GPS Mag-Mount Antenna Part #: 170652-000
    • Multi-Band Omni-Directional Antenna Part #: 170668-000
    • Indoor/Outdoor Panel Patch Part #: 170669-000
    • Universal LTE/4G/3G / 2dBi/3dBi antenna with SMA connector for all AER, ARC, COR, and MC400 products (Part # 170704-001)
  • VEHICLE ANTENNAS:
    • 3-in-1 GPS & Modem Screw-Mount Part #: 170653-000
    • 3-in-1 Adhesive-Mount Antenna Part #: 170653-001
    • 5-in-1 GPS, Modem & WiFi Screw-mount Part #: 170654-000
    • Low Profile 5-in-1 MIMO LTE, MIMO WiFi (2.4/5 GHz), & GPS Screw Mount Antenna with 5M Cables Part #: 170654- 001

Software:

Cradlepoint’s NetCloud

Cloud Networking for Branch Office, Retail, and More

Cradlepoint’s NetCloud platform includes an industryleading router operating system, an award-winning management platform optimized for cellular, and virtual private cloud networking. When combined with Cradlepoint routers, this integrated platform of flexible, extensible, and rapidly deployable applications enables an entirely new way to easily build, secure, control, and manage end-to-end private networks in the cloud.

NetCloud OS

Firewall, Advanced Routing-Optimized for LTE
NetCloud OS is the heart of our industry-leading LTE routers. Sustained commitment to new features and capabilities ensures your network is always up to date and secure.

NetCloud Manager

Quickly Deploy, Manage & Monitor Your Network
NetCloud Manager is a cloud management service that enables zero-touch deployment, remote management, alerting, and network analytics for all Cradlepoint routers.

NetCloud Engine

Software-Defined. Security-Driven. Cloud-Delivered.
NetCloud Engine leverages SoftwareDefined Networking (SDN) to instantly create secure Virtual Cloud Networks over more cost-effective wired and wireless broadband Internet services.

Security Applications

Enhance network security with best-in-class applications from Cradlepoint Technology Partners. Create, deploy, and manage network security applications at remote locations with the Cradlepoint NetCloud platform. Improve productivity, reduce costs, and enhance the security intelligence of your network.

Zscaler Internet SecurityZscaler Internet Security

Configured in minutes, best-inclass Zscaler Internet Security protects your organization from web-based threats.

CP Secure Threat ManagementCP Secure Threat Management

A comprehensive intrusion prevention and detection system (IPS/IDS) for full defense-in-depth.

AER Platform Extensibility
AER Platform Extensibility

Cradlepoint Extensibility enables customers and developers to build one-of-a-kind applications and vertical solutions by extending key elements of the Cradlepoint platform. By leveraging our hardware, firmware, and cloud services, developers can add differentiation and unique value to the solutions they offer.

Router SDK (Open Beta)
Build custom vertical applications securely running at the Edge, protected on device, and deployed through the cloud. Manage, deploy, and monitor customer Edge applications from the cloud across the entire fleet.

NetCloud API
Cradlepoint’s API provides the building blocks developers need to craft applications that access the data from a software platform.

Developer Community (Open Beta)
The Cradlepoint Developer Community enables members to leverage knowledge, share, and collaborate with other developers.

CradleCare Support:

CradleCare SupportFrom initial device deployment to long-term operations, Cradlepoint Global Support offers world-class resources and expertise to keep your network secure, simple and efficient. Cradlepoint offers multiple tiers of support to provide you exactly what you need.

With Cradlepoint Global Support and CradleCare, you can:

  • Maximize revenue through always-on uptime and response times
  • Save time with our web-based Connect Portal and Knowledge Base
  • Collaborate with our multi-certified technical team
  • Maintain PCI Compliance with up-to-date router and modem firmware

The following chart provides an overview of Cradlepoint's support and maintenance offerings:

Included with every Cradlepoint purchase CradleCare Basic CradleCare

Web-based Cradlepoint Connect Portal:

  • 24x7x365 access to our Knowledge Base and Firmware download library
  • 12x5 email support (for Enterprise Cloud Manager and NetCloud Gateway only)
  • Knowledge Base access
  • Firmware upgrades
  • Standard warranty with extended warranty options

Included +

  • Covers all products and services
  • 12x5 phone, email and chat support for Cradlepoint routers, ECM and NetCloud Gateway
  • Knowledge Base access
  • Firmware upgrades
  • Standard warranty with extended warranty options

CradleCare Basic +

  • 24x7 qualified phone support and 12x5 email/chat support for Cradlepoint routers, ECM and NetCloud Gateway
  • Advanced Exchange: Next business day replacement
  • Service level targets
  • Assigned Enterprise Support Engineer (for deployments of 50 routers or more)
  • Enterprise engineering resources for network design and best practices implementation
  • Priority consideration of future feature requests and beta trials
  • Knowledge Base access
  • Firmware upgrades
  • Extended Warranty for routers for the term of CradleCare license

Extended Warranties

Extended Warranties can be purchased in subsequent years, and as a follow-on warranty at the conclusion of the standard warranty period. No gap in coverage is allowed: the new warranty must be in place before the existing warranty expires.

Standard One-Year Warranty (With Extended Warranty Option) Includes:

  • Access to Cradlepoint Connect portal and Knowledge Base
  • Hardware repair/replacement with 3-5 day shipping
  • Software bug fixes
  • An option to extend your warranty to 2, 3, or 5 years at the conclusion of the standard warranty period*

*Hardware warranties cannot be extended beyond 5 years from the date of purchase.

Documentation:

Download the Cradlepoint COR Series Datasheet (.PDF)

Download the Cradlepoint IBR1700 Spec Sheet (.PDF)

Pricing Note:

CradlePoint IBR1700
NetCloud Essentials for Mobile Routers (Prime) with IBR1700-600M, 1-yr
1-yr NetCloud Essentials for Mobile Routers (Prime) with support and IBR1700 router with WiFi (600Mbps modem), no AC power supply or antennas, North America
#MA1-1700600M-NNA
Our Price: $1,299.00
NetCloud Essentials for Mobile Routers (Prime) with IBR1700-600M, 3-yr
3-yr NetCloud Essentials for Mobile Routers (Prime) with support and IBR1700 router with WiFi (600Mbps modem), no AC power supply or antennas, North America
#MA3-1700600M-NNA
Our Price: $1,549.00
NetCloud Essentials for Mobile Routers (Prime) with IBR1700-600M, 5-yr
5-yr NetCloud Essentials for Mobile Routers (Prime) with support and IBR1700 router with WiFi (600Mbps modem), no AC power supply or antennas, North America
#MA5-1700600M-NNA
Our Price: $1,809.00
NetCloud Advanced for Mobile Routers
NetCloud Advanced for Mobile Routers (Enterprise), 1-yr
1-yr upgrade to NetCloud Advanced for Mobile Routers (Enterprise)
#MA1-NCADV
Our Price: $120.00
NetCloud Advanced for Mobile Routers (Enterprise), 3-yr
3-yr upgrade to NetCloud Advanced for Mobile Routers (Enterprise)
#MA3-NCADV
Our Price: $288.00
NetCloud Advanced for Mobile Routers (Enterprise), 5-yr
5-yr upgrade to NetCloud Advanced for Mobile Routers (Enterprise)
#MA5-NCADV
Our Price: $450.00
Renewal NetCloud Essentials for Mobile Routers (Prime)
NetCloud Advanced for Mobile Routers (Enterprise), 1-yr
1-yr renewal of NetCloud Essentials for Mobile Routers (Prime)
#MA1-NCESS-R
Our Price: $180.00
NetCloud Advanced for Mobile Routers (Enterprise), 3-yr
3-yr renewal of NetCloud Essentials for Mobile Routers (Prime)
#MA3-NCESS-R
Our Price: $540.00
NetCloud Advanced for Mobile Routers (Enterprise), 5-yr
5-yr renewal of NetCloud Essentials for Mobile Routers (Prime)
#MA5-NCESS-R
Our Price: $900.00
Renewal NetCloud Advanced for Mobile Routers (Enterprise)
NetCloud Advanced for Mobile Routers (Enterprise), 1-yr
1-yr renewal of NetCloud Advanced for Mobile Routers (Enterprise)
#MA1-NCADV-R
Our Price: $120.00
NetCloud Advanced for Mobile Routers (Enterprise), 3-yr
3-yr renewal of NetCloud Advanced for Mobile Routers (Enterprise)
#MA3-NCADV-R
Our Price: $360.00
NetCloud Advanced for Mobile Routers (Enterprise), 5-yr
5-yr renewal of NetCloud Advanced for Mobile Routers (Enterprise)
#MA5-NCADV-R
Our Price: $600.00
