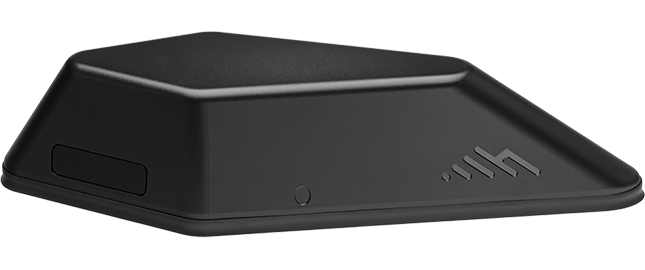

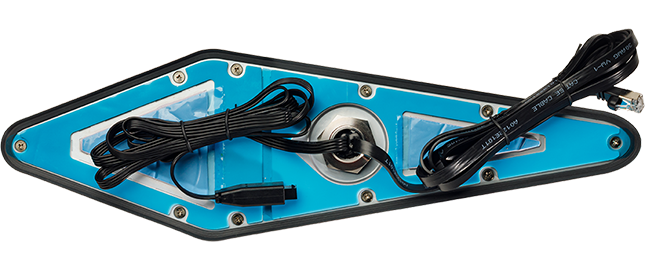

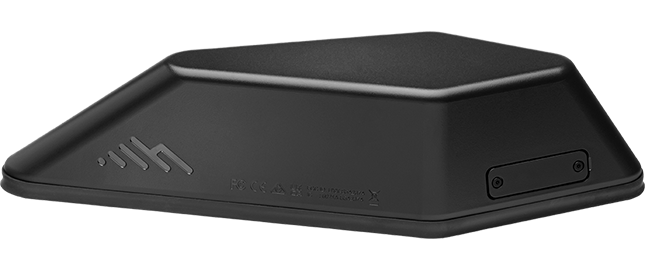

Cradlepoint R2100 Series 5G Ruggedized Router
5G outdoor router for vehicles and IoT
4FF SIM optional but not included, integrated antennas, no AC power supply
Get a Quote!
4FF SIM optional but not included, integrated antennas, no AC power supply
Get a Quote!
4FF SIM optional but not included, integrated antennas, no AC power supply
Get a Quote!
Click here to jump to more pricing!
Overview:
Built for vehicle and IoT deployments
The R2100 Series 5G Ruggedized Router is designed for vehicle and IoT deployments. This high-bandwidth, exterior-mounted solution provides mass transit, public safety, and other organizations optimal cellular performance in a uniquely flexible form factor. Designed to be mounted on the rooftop of a vehicle or attached to IoT cabinet enclosures, the R2100 integrates the modem, antennas, and router into a single aerodynamic, ruggedized casing allowing for simplified deployment. The R2100 is available with or without Wi-Fi 6 and can be deployed as a self-contained router or to supplement an existing router as a 5G adapter.
The R2100 Series is part of a NetCloud Mobile Performance or NetCloud Ruggedized IoT Package. Cradlepoint NetCloud provides connectivity, network, security, and location services to connect everything in the vehicle or IoT deployment while providing access to IT for remote management, troubleshooting, and analytics. When coupled with the Advanced Mobile Performance service plan, organizations gain a full suite of security and AVL capabilities, including threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality with location tracking and cellular coverage maps. The R2100 can also support the NetCloud Exchange services, which provide Zero Trust Network Access and 5G Optimized SD-WAN.
Firewall Throughput:
900 Mbps
WAN Connectivity:
5G Low/Mid-Band & Cat 20 LTE
LAN Connectivity:
Wi-Fi 6, 2.5 GbE
Management:
NetCloud
Notable Benefits
- Deploy the integrated 5G NR / Cat 20 LTE modem, antenna, and Wi-Fi 6-equipped router in one complete package
- Install as a self-contained 5G router or supplement an existing router as a 5G adapter
- Provide easy installation with a power cable or Power over Ethernet (PoE) and no coax cables
- Define policies through centralized cloud-based management for easy deployment at scale
- Prioritize access on public safety networks for reliable, secure connectivity
- Create a cellular coverage map of your area’s 5G and LTE coverage
- Integrate into Automatic Vehicle Location systems with GNSS/GPS
5G Ruggedized Router for High-Performance Vehicle and IoT Connectivity
The Cradlepoint R2100 Series 5G Ruggedized Router is available with the NetCloud Performance Mobile Service plan or the NetCloud Ruggedized IoT Service plan. Designed to be mounted on the roof of a vehicle or attached to IoT cabinet enclosures, the R2100 integrates the modem, antennas, and router into a single aerodynamic, ruggedized casing allowing for simplified deployment. The R2100 is sold with or without Wi-Fi 6 and can be deployed as a self-contained router or to supplement an existing router as a 5G adapter.
High Performance Captive Modem
Customers can add 5G to a current installation by deploying the R2100 Series as a Captive Modem with supported Cradlepoint controlling routers. This allows them both to be managed in NetCloud Manager as a single entity. The NetCloud management system treats the R2100 as an internal modem, eliminating the need for a separate license. Similarly, for select controlling routers, the R2100 Series can serve as an additional Wi-Fi source in captive mode to expand coverage for applications such as video offload. The R2100 Series can be PoE powered while providing a high-performance 5G connection over Ethernet.
Key Software Capabilities:
The R2100 Series 5G Ruggedized Router is enabled by a NetCloud Service subscription plan which includes everything needed to unlock the power of 5G at the network edge and connect devices to critical applications and services. It all works together, making it easy to deploy, connect, and secure edge applications at scale across the organization. The service includes a warranty for as long as there is an active subscription, online training, live and online support, and all software and firmware updates.

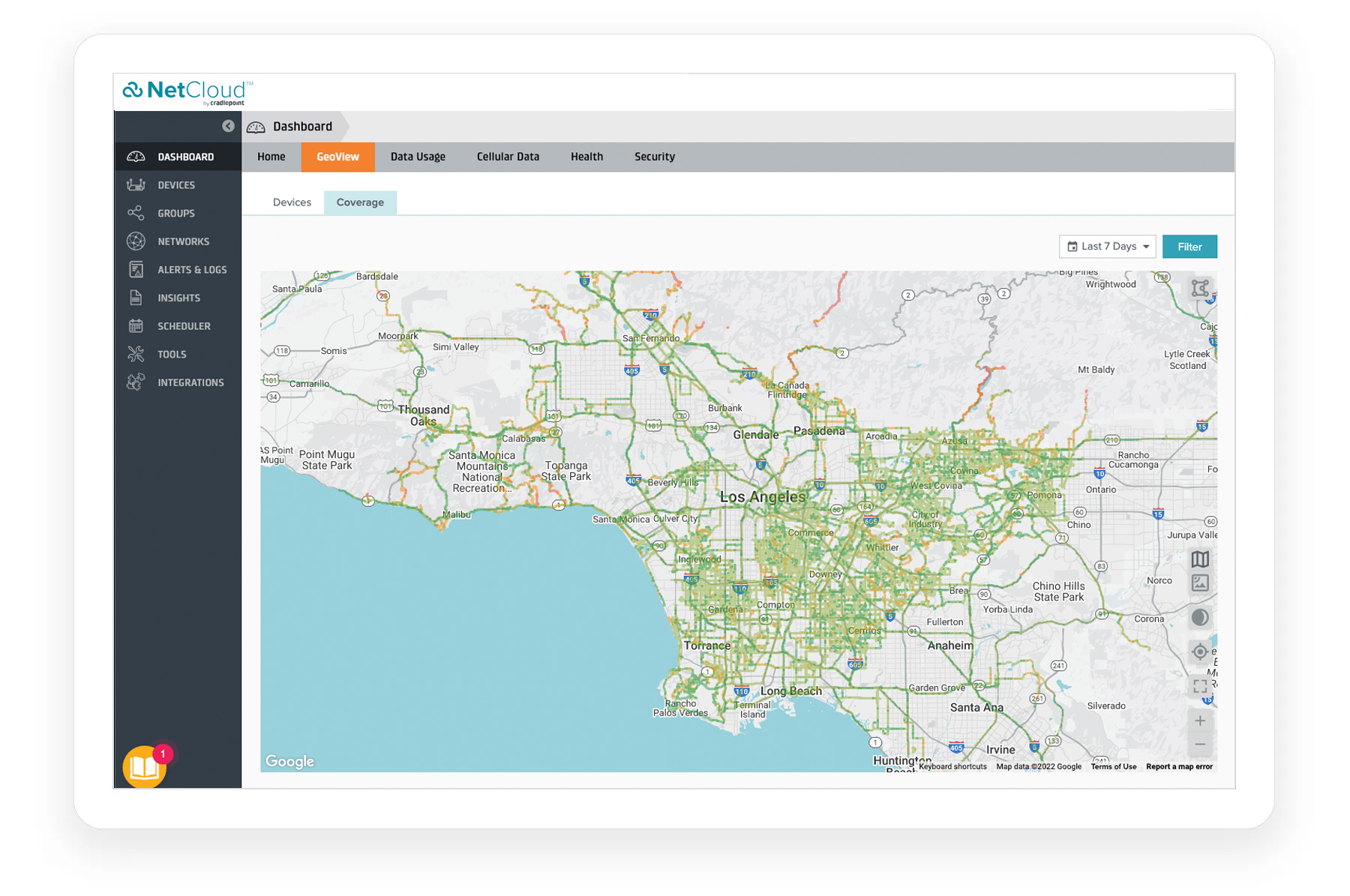

Coverage Map
NetCloud Advanced Mobile Performance Service uses GNSS/GPS and 5G/4G cellular health to provide precise analytics about location and signal strength. Data can be mapped to display both the current and historical locations of a vehicle, as well as generate detailed coverage maps that display cellular health, allowing users to gain operational insights and solve problems.

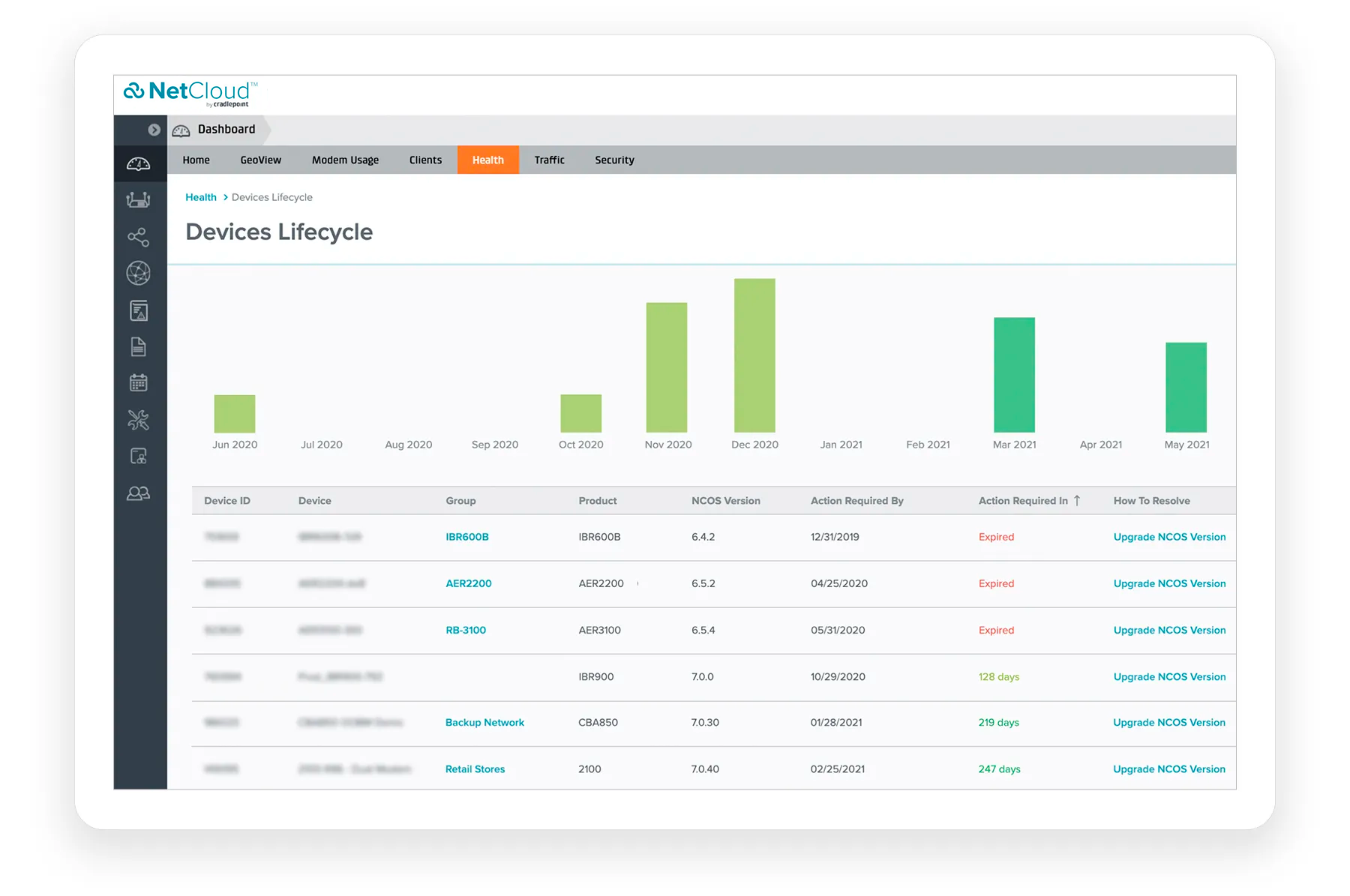

Advanced Software Lifecycle Management
NetCloud improves the typical software lifecycle management process. New features are continuously delivered to NetCloud and become available for the router without interrupting network performance. Software versions are tracked for every endpoint, with the latest update just a click away. Straightforward subscription and license management is easily accessible and provided to keep the network running without interruption.

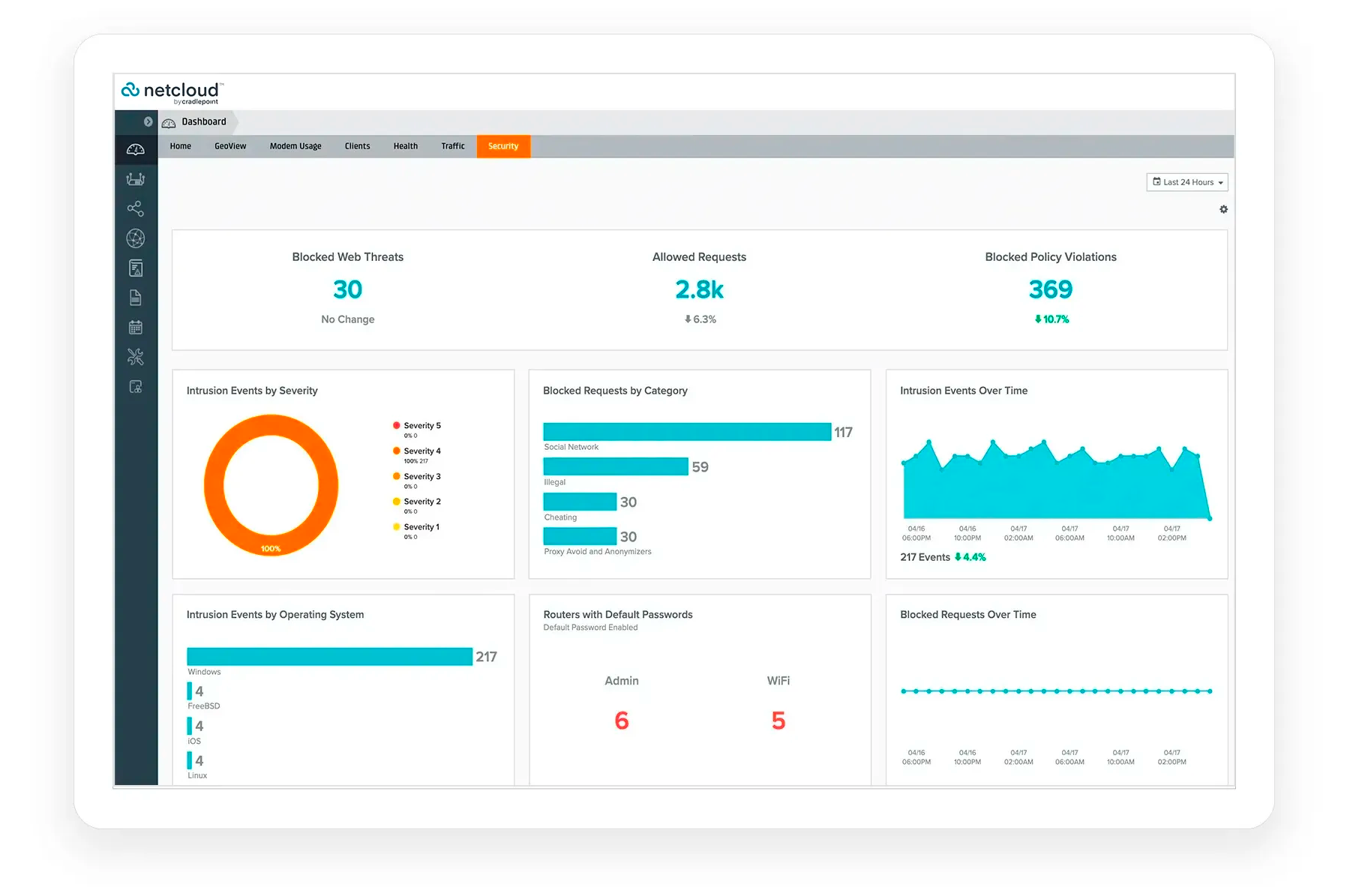

Security Services
NetCloud Advanced Mobile Performance Service includes security features that include application aware zone-based firewall, CP Secure Threat Management (IPS/IDS), and CP Secure Web Filter for protecting your network and meeting the evolving security needs of in-vehicle environments.
The R2100 supports NetCloud Exchange (NXC), a unified network and security WAN architecture built upon zero-trust principles and optimized for 5G. NCX helps lean IT organizations simplify deployment and management with shared policies and simplified processes.

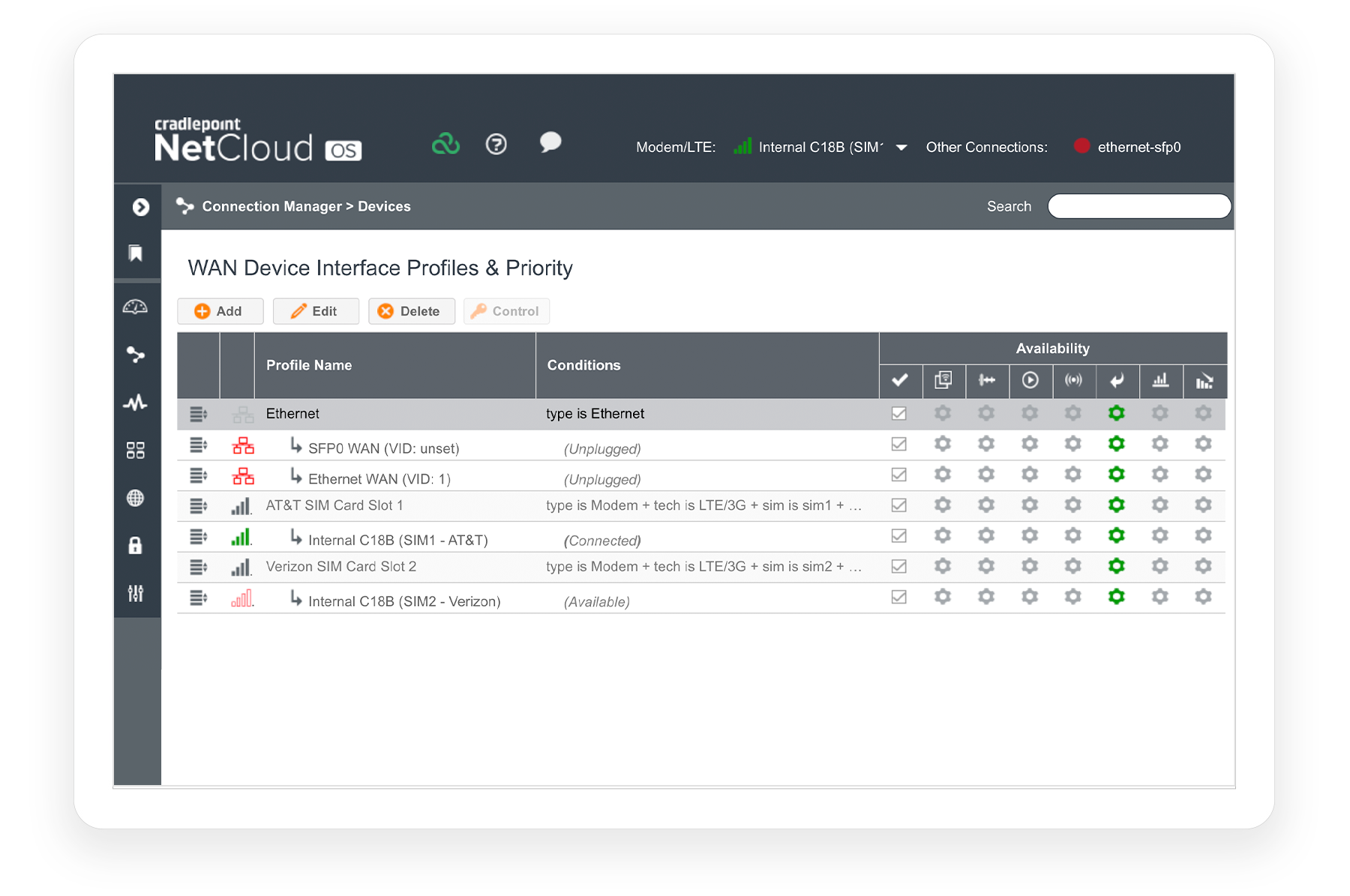

Connection Manager
Connection Manager provides the ability to manage all WAN connection types, including wireless, Wi-Fi as WAN, and wired, from a single software-defined policy. Our proprietary modem software enables users to quickly establish robust Wireless WAN connectivity while maintaining the highest level of resiliency.
Specifications:
Hardware Specifications
The following features are delivered through the hardware.
| R2100 Ruggedized Router Specifications | |
|---|---|
| Interfaces | |
| Modem | Embedded 5G NR FR1 low-, mid-band, and 4G LTE Category 20 modem |
| Ethernet | 1 x 2.5 GbE RJ45 (LAN only)
|
| Wi-Fi | Dual-radio, dual-band, concurrent operation (2.4 GHz and 5 GHz)
|
| Bluetooth | N/A |
| Expansion | N/A |
| GNSS / GPS | Passive GNSS (multiplex with internal cellular antennas) |
| Environmental | |
| Temperature |
|
| Humidity |
|
| Ingress Protection / Corrosion |
|
| Ingress Protection | IK09 (protected against 10 joules impact) |
| Power | |
| Required | One of the following:
|
| Features | Ignition sensing (automatic ON and time-delay OFF) |
| Consumption | R2105:
R2155:
|
| Physical | |
| Size | 115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in) |
| Weight | 1.46 kg (3 lb 4 oz) |
| Reliability | |
| Calculated MTBF | 1,895,792 hours (Telcordia SR332 at 25 °C) |
| Certifications | |
| Safety |
|
| Vehicle |
|
| Rail | N/A |
| Materials |
|
| Security | FIPS 140-3 Level 1 Module in Process (R2100 FIPS models only) |
| Edge Computing | |
| CPU | Quad-core ARMv8 64-bit |
| Memory | Up to 1.8 GB |
| Flash Storage | Up to 8 GB |
| Applications | Docker containerized applications |
| Cloud Services | |
| Service Plans | NetCloud Service for Mobile Performance, NetCloud Service for Ruggedized IoT |
| Service Add-Ons | NetCloud Exchange, NetCloud Advanced |
| Support | NetCloud Packages include support for the full subscription term. |
| Warranty | All Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active NetCloud Service Plan. |
| Device Management | NetCloud Manager for the full subscription term. |
| Software Updates | NetCloud Manager for the full subscription term. |
| Wi-Fi Power | |
| FCC |
|
| European Union |
|
| Canada |
|
| Global Safe Mode | 2.4 GHz: 20.0 dBm EIRP |
| Performance | |
| Stateful Firewall Throughput | 900 Mbps |
| IPS Throughput | 650 Mbps |
| Application Aware Services & Analytics | 650 Mbps |
| IPsec VPN Throughput | 300 Mbps |
| Concurrent VPN Tunnels | 10 |
| Concurrent Sessions (TCP) | 32,000 |
| Typical Client Count | 100 |
Enterprise-Class Modem Specifications
| Specification | R2105-5GB | R2155-5GB |
|---|---|---|
| Technology | 5G FR1 NSA/SA and 4G LTE
|
5G FR1 NSA/SA and 4G LTE
|
| Fallback | WCDMA/UMTS/HSPA+ | WCDMA/UMTS/HSPA+ |
| Carrier Aggregation | LTE Only
LTE + 5G NR ENDC
|
LTE Only
LTE + 5G NR ENDC
|
| Peak Rates |
|
|
| MIMO | 4x4 MIMO | 4x4 MIMO |
| Modulation | 5GB FR1
|
5GB FR1
|
| 4G/LTE Bands | FDD
TDD
|
FDD
TDD
|
| 5G NR Bands | NSA and SA
|
NSA and SA
|
| 3G Bands | B1, B2, B4, B5, B6, B8, B9, B19 | B1, B2, B4, B5, B6, B8, B9, B19 |
| Power | LTE
LTE + 5G NR ENDC
5G NR
|
LTE
LTE + 5G NR ENDC
5G NR
|
| Antennas | 4 x cellular internal antennas | 4 x cellular internal antennas |
| GNSS/GPS | Passive GNSS | Passive GNSS |
| SMS | Yes | Yes |
| Regulatory | FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ) | FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ) |
| Network Operator Standards | PTCRB (U.S., Canada), GCF (Worldwide) | PTCRB (U.S., Canada), GCF (Worldwide) |
| Network Operator Certifications | AT&T, T-Mobile, Verizon* | AT&T, T-Mobile, Verizon* |
| Public Safety Network Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline |
| Private Cellular Network | Yes, includes FCC Part 96 (CBRS Band 48) | Yes, includes FCC Part 96 (CBRS Band 48) |
* Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications. A carrier listed in the approvals section means Cradlepoint completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.
Software Features:
Software feature availability depends on the service plan selected. Learn more about the NetCloud Service packages.
NetCloud Ruggedized IoT Service Features and NetCloud Mobile Service Features
Cellular Intelligence
- Cellular health with live stats and diagnostics
- Carrier Selection Intelligence
- Location services with serving cell tower
- Advanced logic on failover and failback connections
- Carrier data usage management and alerting
- Coverage map
5G SASE
- Zero Trust Private Access
- Zero Trust Internet Access
- Zero Trust SD-WAN
Cloud Management
- Zero-touch deployment
- Network visualization and monitoring
- Bulk configuration and software updates
- Live stats for cellular, wired, and Wi-Fi
- Application performance and quality of experience analytics
- Multi-layered dashboards and shareable reports
- User and license management
Private Network Compatibility
- NetCloud Private Networks
- Ericsson Private 5G
Remote Troubleshooting
- Real-time diagnostics and alerts
- Integrated 5G speed test with results history
- Out-of-Band Management for third-party routers
- In-Band Management for third-party LAN devices
Extensibility
- SDK, API, and prebuilt third-party integrations
- IoT ecosystem integration (Microsoft, AWS)
- Edge compute (SDK or Docker containers)
Router-based Networking and Security
- Dynamic routing and Wi-Fi as WAN
- Zone-based firewall
- IDS/IPS and web filtering
- Application-aware firewall and traffic steering policies
Documentation:
Download the Cradlepoint R2100 Series 5G Ruggedized Router Datasheet (.PDF)
