Cradlepoint A2415 Outdoor Cellular Access Point
Plug-and-play small cell radio with best-of-class range and reliability
Get a Quote!
Get a Quote!
Get a Quote!
Click here to jump to more pricing!
Overview:
The NetCloud Private Network solution includes plug-and-play Cellular Access Points (CAPs) that support the 4G LTE CBRS spectrum band 48. Sometimes referred to as small cells, these CAPs form the private Radio Access Network (RAN) that cellular endpoints and clients connect to and are authenticated through the Mobility Gateway. All indoor and outdoor CAPs work together to create contiguous private network connectivity across the entire customer landscape.
Network controlled, prescriptive device mobility
RF coverage range for miles
SIM-based authentication eliminates the risk posed by traditional credential-based attacks
Built-in automated acquisition of dedicated CBRS spectrum
Notable Benefits
- Plug and play CAPs with automated provisioning and quick boot up.
- Fit for function coverage options with internal or external antenna options.
- Flexible backhaul options with ethernet or fiber.
- Utilizes dedicated spectrum and advanced interference management, significantly reducing the risk of connection drops and ensuring superior connectivity.
- Carrier Aggregation, Dual Carrier, and Time Division Duplex (TDD) modes 1, 2, and 6 enable customizable uplink and downlink throughputs.
Coverage Measured in Miles
Cellular Access Points offer significant coverage advantages over Wi-Fi outdoors and public cellular services indoors. These CAPs extend far beyond the limited range of Wi-Fi, providing reliable connectivity for extensive outdoor industrial, agricultural, and operational areas. Indoors, they surpass public cellular services in coverage and capacity, tailored to the specific requirements of the facility. Unlike public cellular, which can suffer from signal degradation and congestion, NCPN CAPs ensure robust signal penetration and dedicated bandwidth, facilitating advanced applications such as automation, secure communications, and real-time data analytics in environments like warehouse yards and industrial manufacturing facilities.
Reliability You Can Count On
NetCloud Private Networks excels in network determinism, client mobility, and overall reliability, markedly outperforming Wi-Fi. PCNs ensure predictable network behavior with guaranteed bandwidth, essential for critical applications. Unlike Wi-Fi, where client devices determine handoffs, potentially leading to connectivity gaps, NCPN manages client mobility seamlessly across multiple CAPs, ensuring devices maintain stable connections. This system-wide approach to managing connections enhances the reliability of the LAN, reducing downtime and maintaining consistent network performance.
NetCloud Private Networks elegantly balances deployment and management simplicity, with powerful insights and control
NetCloud Private Networks is an end-to-end cloud-native private cellular network solution designed for the needs of today’s dynamic enterprise IT ecosystems. NCPN is packaged to make it easy to prioritize security and quality of service while also enabling plug-and-play deployments that scale with an API-first design philosophy. NetCloud Private Networks is built from the ground up using zero-trust principles and is based on a granular and dynamic policy framework that is core to the architecture. This provides an added layer of security over and above SIM-based authentication.

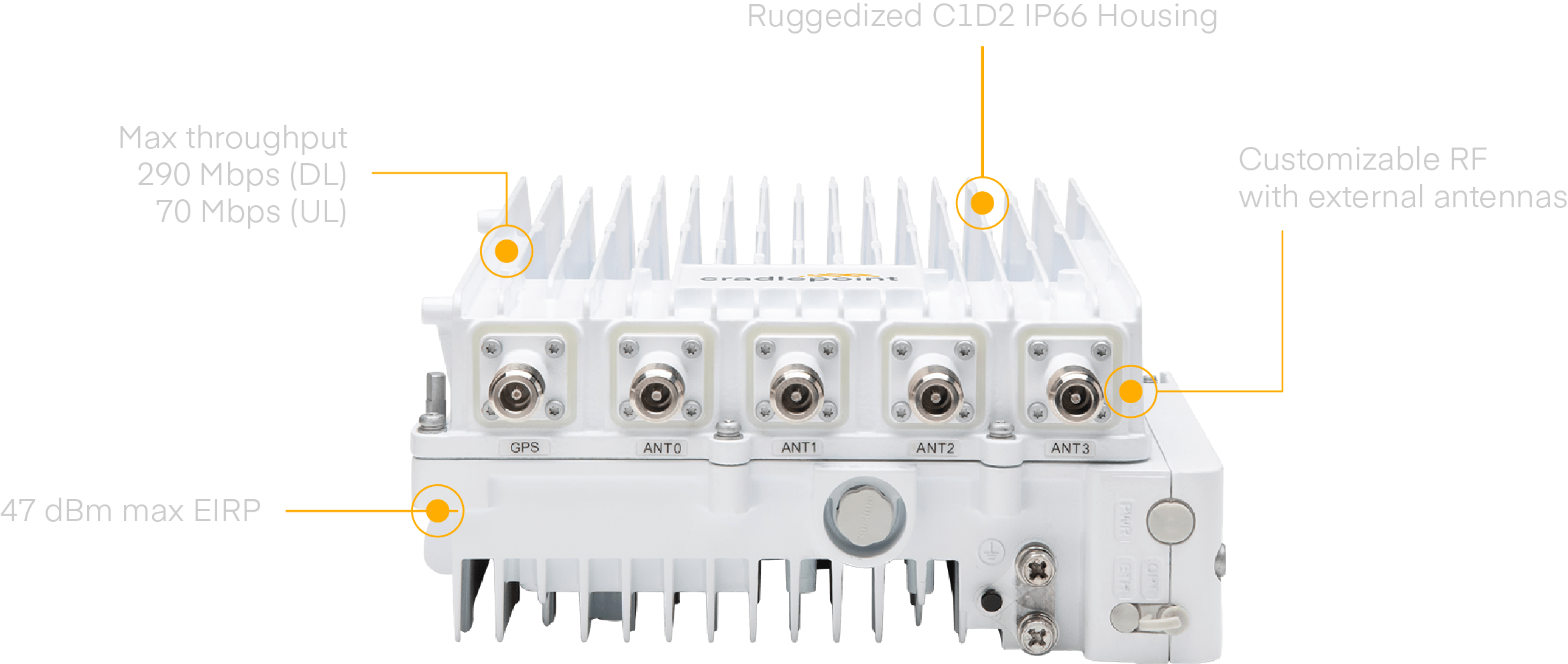

Specifications:
A2415 Cellular Access Point Specifications | |
---|---|
Interfaces | |
Ethernet |
|

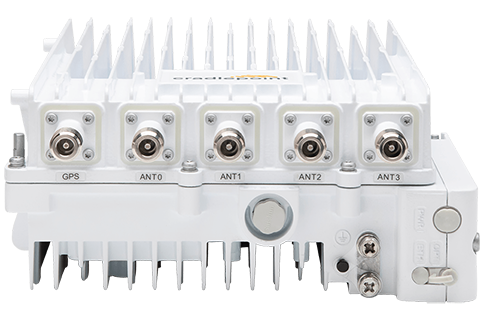

Cellular | 4 external, N-type female antenna connectors |
GNSS / GPS | External GPS antenna, N-type connector |
Environmental | |
Temperature |
|
Humidity |
|
Ingress Protection | IP66 |
Physical | |
Size | 333 x 240 x 105 mm (13.1 x 9.4 x 4.1 in) |
Weight | 7.5 kg (16.5 lbs) |
Power | |
Input | -40 VDC to -57 VDC, nominal -48 VDC |
Maximum Load |
|
Certifications | |
Safety | UL/cUL |
Radio | FCC |
Cellular | OnGo Alliance** |
Radio Specifications | |
Operating Modes |
|
Active Clients |
|
Single Carrier Peak Rates (based on 20 MHz BW) | TDD Config 1
TDD Config 2
TDD Config 6
|
Dual Carrier Peak Rates (based on 40 MHz BW) | TDD Config 1
TDD Config 2
TDD Config 6
|
Carrier Aggregation Peak Rates (based on 40 MHz BW) | TDD Config 1
TDD Config 2
TDD Config 6
|
Carrier Aggregation |
|
MIMO | 2x2 |
Modulation |
|
4G/LTE Bands | B48 |
Cellular Power |
|
Cellular Antennas | N-type male connectors, external (not included) |
Channel Bandwidth | 10 and 20 MHz |
*1000baseLX, 1310nm, 10km optical SFP included (Qty 2)
**Certification in progress; availability coming soon.
Software Features:
The NetCloud Essentials software license for this Cellular Access Point includes powerful features that are summarized below and listed in more detail in the NetCloud Service Feature Matrix.
Ease of Installation
- Zero-touch deployment
- Automatic CBRS SAS integration
- Less than 3 minutes for network boot-up
- IP transport agnostic
Security
- IPsec tunnel security
- SIM-based authentication
- Always-on network traffic encryption
Traffic Prioritization
- SIM-based slicing
- Traffic Class assignment by QCI and GBR
- Uplink/downlink bit rate limit
- DSCP tagging

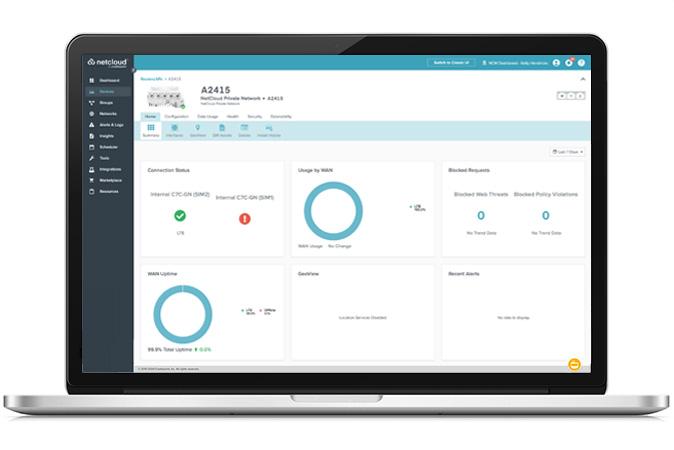

Cloud Management
- Network visualization and monitoring
- Bulk configuration and software updates
- Live stats for cellular, wired, and Wi-Fi
- NetCloud APIs
- Adjustable handover thresholds
- Channel and transmit power controls
Visibility and Alerts
- Real-time operational alerts
- Operational status visibility
- Health metrics
- Usage dashboard
- Troubleshooting log download
Documentation:
Download the Cradlepoint A2415 Outdoor Cellular Access Point Datasheet (.PDF)
Pricing Note:
- Pricing and product availability subject to change without notice.
