Cradlepoint E102 Series Enterprise Router
Connects small offices using a dedicated secure network

Cradlepoint Products
NetCloud Enterprise Branch Essential Plan + E102 Cat 7 Modem (300 Mbps)
NetCloud Enterprise Branch Essentials Plan and E102 Router with Wi-Fi (300 Mbps modem), 1 Year
#BK01-0102C7C-GN
Our Price: $699.00
NetCloud Enterprise Branch Essentials Plan and E102 Router with Wi-Fi (300 Mbps modem), 3 Years
#BK03-0102C7C-GN
Our Price: $1,149.00
NetCloud Enterprise Branch Essentials Plan and E102 Router with Wi-Fi (300 Mbps modem), 5 Years
#BK05-0102C7C-GN
Our Price: $1,599.00
NetCloud Enterprise Branch Essential and Advanced Plan + E102 Cat 7 Modem (300 Mbps)
NetCloud Enterprise Branch Essentials + Advanced Plan and E102 Router with Wi-Fi (300 Mbps modem), 1 Year
#BKA1-0102C7C-GN
Our Price: $874.00
NetCloud Enterprise Branch Essentials + Advanced Plan and E102 Router with Wi-Fi (300 Mbps modem), 3 Years
#BKA3-0102C7C-GN
Our Price: $1,674.00
NetCloud Enterprise Branch Essentials + Advanced Plan and E102 Router with Wi-Fi (300 Mbps modem), 5 Years
#BKA5-0102C7C-GN
Our Price: $2,474.00

Click here to jump to more pricing!

Overview:

The Cradlepoint NetCloud Service for Small Branch with the E102 Series Enterprise Router is ideally suited for enabling mission-critical employees to work from home or outside the office with the same services, security, and ease of management. The portable, compact form factor includes full-featured routing, security, traffic shaping, and Wi-Fi, making it easy to connect and maintain connectivity to the Internet for supporting crucial business applications. The embedded LTE modem means that reliable, private connectivity is always available from day one without waiting for a wired connection and without having to depend upon consumer-class, underlying networking conditions.

The purpose-built router — designed for markets outside of North America

The E102 Series Enterprise Router provides reliable LTE, secure connections to the Internet or VPN support, LAN switching, and Wi-Fi 5 to enable comprehensive, all-in-one office network in a portable form factor. Maintain the organizational security and compliance profile through stateful zone- based and application-aware firewall, unified threat management, and Wi-Fi security. Leverage GPS capabilities to locate the position of the equipment and enhance asset tracking detail. The portable router, designed for markets outside the U.S. and Canada, includes full-featured routing, security, traffic shaping, and Wi-Fi, makes it easy to establish a secure, dedicated connection to the headquarters or the Internet to access crucial business applications.

The cloud-based management with NetCloud Service helps rapidly deploy the E102 router without IT staff onsite. From a central location, dynamically define and apply policies, troubleshoot, as well as access at-a-glance status, insights, reports, and analytics dashboards. Use NetCloud to optimize routing, VPN, SD-WAN, and security capabilities on the E102 router.

Cradlepoint NetCloud Service with the E102 router also provides everything needed to connect the remote worker to their corporate applications and services they need most from virtually any location. NetCloud Service for Small Branch with the E102 Series Enterprise Router enables mission-critical employees to work from home or outside the office with the same services, security, and ease of management as in office environments.


icon-firewall-throughput

Firewall Throughput:
850 Mbps

icon-wan-connectivity

WAN Connectivity:
Cat 7, GbE

icon-lan-connectivity

LAN Connectivity:
Wi-Fi 5, GbE

icon-firewall-throughput

Management:
NetCloud


Notable Benefits

  • Connect to the internet or applications anywhere with all-wireless 5G or LTE connectivity.
  • Open temporary locations without compromising security or reliability with an all-in-one design and compact form factor.
  • Extend office networking capabilities to critical remote employees without compromising security or reliability.
  • Reduce network attack surface, build encrypted tunnels, and incorporate zero trust principles with NCX Secure Connect and NCX ZTNA.
  • Define policies through centralized, cloud-based management for easy deployment at scale.
  • Use zero-touch deployment with pre-configured router and pre-inserted SIM to speed installation.

Ideal for Work from Anywhere

For organizations moving to a Small Branch Wireless WAN, the E102 offers the ability to pair LTE with a wired link and use a cellular link as a failover connection, hybrid WAN, or a primary connection. For an all-wireless WAN, the E102 offers LTE performance, which can support the throughput needs of a small- sized office with the ability to add a second cellular connection to increase available bandwidth and reliability.

Work from Anywhere

NetCloud Service for Small Branch, combined with an E102 Series Router, provides a dedicated connection for remote, mission-critical workers, and executives with a similar experience as the office network, with access to critical cloud and corporate data center applications. Instead of relying on uneven levels of household equipment, this Work from Anywhere (WFX) solution offers IT providers cloud-based management to define and distribute policies, set security parameters, isolate corporate assets, and fine-tune bandwidth considerations in a uniform, corporate-class offering that interoperates with existing network solutions.

Key Software Capabilities:


Cradlepoint NetCloud Service for Small Branch provides everything needed to connect the remote worker to their corporate applications and services they need most from virtually any location. The NetCloud Service includes cloud-based management for optimizing routing, VPN, SD-WAN, and security capabilities. The cloud capabilities include defining and applying policies, at-a-glance status insights, reports, troubleshooting, and analytics dashboards. The service includes a warranty for as long as there is an active subscription on the router, online training, live and online support, and all software and firmware updates.


Deployment Capabilities

Zero-touch deployment features allow pre-configured and pre-activated equipment to arrive on location, so the employee is able to power up an E102 Series Router, locate the best cellular connection path, and instantly setup the pre-established office parameters through the NetCloud Service, upon authentication.


Security Services

NetCloud Service includes Unified Edge security features and options to optimize an E102 Series Router to meet and scale to the security needs of distributed environments. The service includes stateful zone-based and application-aware firewall, unified threat management, and authenticated wireless connection that is fully isolated from the surrounding networks.

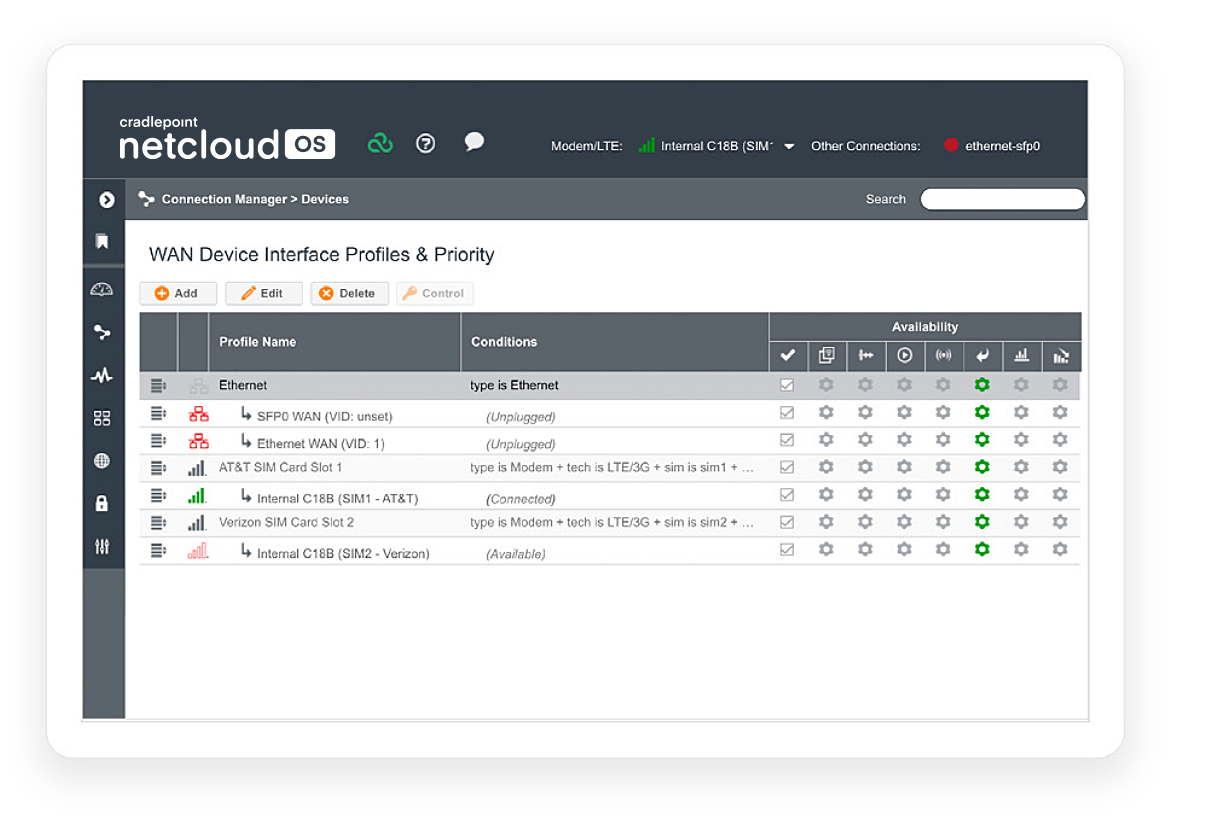

Cloud Services

NetCloud delivers true zero-touch deployment with the ability to define and deliver policy across entire groups of endpoints. Users can create a cloud-orchestrated hub and spoke VPN network and gain insights and analytics required for rapid troubleshooting and diagnostic workflows.

Specifications:

Hardware Specifications

The following features are delivered through the hardware.

E102 Router Specifications

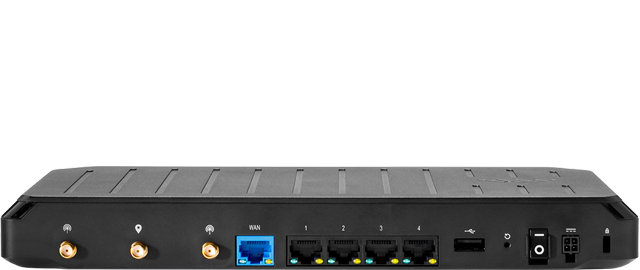

Interfaces
Modem

One of the following:

  • Embedded C7C Modem
    • 2 x SMA cellular antenna connectors
  • Embedded C7C Modem
    • 2 x SMA cellular antenna connectors
Ethernet 5 x GbE RJ45 (LAN/WAN switchable)
Wi-Fi

Dual-radio, dual-band, concurrent operation (2.4 GHz and 5 GHz)

  • 2x2 MU-MIMO 802.11ac Wi-Fi 5 with DFS
  • 300 Mbps (2.4 GHz) and 867 Mbps (5 GHz)
  • Internal 2x2 antenna
Expansion 1 x USB 2.0 Type A (Output: 5 V, 500 mA, 2.5 W)
GNSS / GPS 1 x SMA GNSS antenna connector
Environmental
Temperature
  • Operating: 0 °C to 50 °C (32 °F to 122 °F)
  • Storage: -20 °C to 70 °C (-4 °F to 158 °F)
Humidity
  • Operating: 10% to 90%
  • Storage: 5% to 95%
Power
Required

External power supply (included)

  • Input: 100-240 VAC 1 A
  • Output: 12 VDC 3 A
Consumption
  • Idle: 6 W
  • Typical: 9.5 W
  • Heavy: 12 W
Physical
Size 135 × 270 × 32.4 mm (5.3 × 10.6 × 1.3 in)
Weight 0.62 kg (1 lb 6 oz)
Reliability
Calculated MTBF 453,508 hours (Telcordia SR332 at 25 °C)
Certifications
Safety
  • UL/cUL,
  • CB Scheme,
  • EN 62368-1
Materials RoHS
Security Secureboot
Cloud Services
Service Plans NetCloud Service for Small Branch
Service Add-Ons NetCloud Exchange, NetCloud Advanced
Support NetCloud Packages include support for the full subscription term.
Warranty All Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active NetCloud Service Plan.
Device Management NetCloud Manager for the full subscription term.
Software Updates NetCloud Manager for the full subscription term.
Wi-Fi Power
FCC
  • 2412–2462 (2.4 GHz): 31.58 dBm EIRP
  • 5180–5240 MHz (5 GHz band 1): 27.95 dBm EIRP
  • 5260-5320 MHz (5 GHz band 2a): 27.1 dBm EIRP
  • 5500-5720 MHz (5 GHz band 2c): 28.99 dBm EIRP
  • 5745–5825 MHz (5 GHz band 3): 26.46 dBm EIRP
IC
  • 2412-2462 MHz (2.4 GHz): 31.58 dBm EIRP
  • 5150–5250 MHz (5 GHz band 1): 25.4 dBm EIRP
  • 5250-5350 MHz (5 GHz band 2a): 24.65 dBm EIRP
  • 5470-5725 MHz (5 GHz band 2c): 28.99 dBm EIRP
  • 5745–5850 MHz (5 GHz band 3): 26.46 dBm EIRP
CE
  • 2412-2472 MHz (2.4 GHz): 19.80 dBm EIRP
  • 5180–5240 MHz (5 GHz band 1): 22.70 dBm EIRP
  • 5260-5320 MHz (5 GHz band 2a): 22.59 dBm EIRP
  • 5500-5700 MHz (5 GHz band 2c): 25.98 dBm EIRP
Performance
Stateful Firewall Throughput 850 Mbps
IPS Throughput 250 Mbps
Application Aware Services & Analytics 250 Mbps
IPsec VPN Throughput 40 Mbps
Concurrent VPN Tunnels 20
Concurrent Sessions (TCP) 32,000
Typical Client Count 5

Enterprise-Class Modem Specifications

Specification E102-C7C E102-C7D
Technology Cat 4 LTE (3GPP Rel. 11)
  • Dual SIM slots, 2FF form factor
  • SIM-based auto-carrier selection
Cat 7 LTE (3GPP Rel. 11)
  • Dual SIM slots, 2FF form factor
  • SIM-based auto-carrier selection
Fallback WCDMA/UMTS/HSPA+ WCDMA/UMTS/HSPA+
Carrier Aggregation Up to 2 x CA downlink, 2 x CA uplink Up to 2 x CA downlink, 2 x CA uplink
Peak Downlink Rates
  • LTE: 300 Mbps
  • WCDMA: 42.2 Mbps
  • LTE: 300 Mbps
  • WCDMA: 42.2 Mbps
Peak Uplink Rates
  • LTE: 150 Mbps
  • WCDMA: 5.76 Mbps
  • LTE: 150 Mbps
  • WCDMA: 5.76 Mbps
MIMO 2x2 MIMO 2x2 MIMO
Modulation
  • Up to 64 QAM DL
  • Up to 64 QAM UL
  • Up to 64 QAM DL
  • Up to 64 QAM UL
4G/LTE Bands LTE FDD
  • B2, B4, B5, B7, B12, B13, B14, B25, B26, B66, B71

LTE TDD

  • B41, B42, B43, B48
LTE FDD
  • B1, B3, B7, B8, B20, B28, B32

LTE TDD

  • B38, B40, B41, B42, B43
WCDMA Bands B2, B4, B5 B1, B5, B8
Power LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1 (typical conducted) LTE 22.5 dBm ± 1, DC-HSPA+ 23 dBm ± 1
Antennas SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included) SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included)
GNSS/GPS Active GNSS Active GNSS
SMS Yes Yes
Regulatory IFITEL (MX)** CE (EU), UKCA, RCM (AU/NZ)**
Network Operator Standards PTCRB (Mexico), GCF (Worldwide) GCF (Worldwide)
Network Operator Certifications See note* See note*
Public Safety Network Certifications N/A N/A
Private Cellular Network Yes Yes

* Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications. A carrier listed in the approvals section means Cradlepoint completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.
** Refer to https://cradlepoint.com/products/certifications/ for a list of country/region regulatory certifications.


Software Features:

Software feature availability depends on the service plan selected. Learn more about the NetCloud Service packages.

NetCloud Small Branch Service Features


Cellular Intelligence

  • Cellular health with live stats and diagnostics
  • Carrier selection intelligence
  • Location services with serving cell tower
  • Coverage map (mobile only)
  • Advanced logic on failover and failback connections
  • Carrier data usage management and alerting

SASE

  • Zero Trust Private Access
  • Zero Trust Internet Access
  • Zero Trust SD-WAN

Cloud Management

  • Zero-touch deployment
  • Network visualization and monitoring
  • Bulk configuration and software updates
  • Live stats for cellular, wired, and Wi-Fi
  • Application performance and quality of experience analytics
  • Multi-layered dashboards and shareable reports
  • User and license management

Private Network Compatibility

  • NetCloud Private Networks
  • Ericsson Private 5G

Remote Troubleshooting

  • Real-time diagnostics and alerts
  • Integrated speed test with results history
  • Out-of-Band Management for third-party routers
  • In-Band Management for third-party LAN devices

Extensibility

  • SDK, API, and prebuilt third-party integrations
  • IoT ecosystem integration (Microsoft)

Router-based Networking and Security

  • Dynamic routing and Wi-Fi as WAN
  • Zone-based firewall
  • Application-aware firewall and traffic steering policies
  • IDS/IPS and web filtering

Documentation:

Download the Cradlepoint E102 Series Enterprise Router Datasheet (.PDF)
