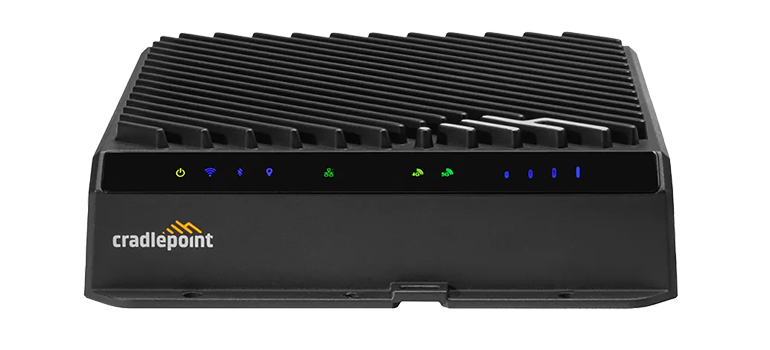

Cradlepoint R1900 Series 5G Ruggedized Router
High-performance 5G router for the ultimate in-vehicle network connectivity

Cradlepoint R1900 Series 5G Ruggedized Router

Cradlepoint Products
NetCloud Mobile Performance Essentials Plan + Router
NetCloud Mobile Performance Essentials Plan and R1900 router with Wi-Fi (5G modem), 1 year
Note: no AC power supply or antennas
#MB01-19005GB-GA
Our Price: $1,999.00
NetCloud Mobile Performance Essentials Plan and R1900 router with Wi-Fi (5G modem), 3 years
Note: no AC power supply or antennas
#MB03-19005GB-GA
Our Price: $2,499.00
NetCloud Mobile Performance Essentials Plan and R1900 router with Wi-Fi (5G modem), 5 years
Note: no AC power supply or antennas
#MB05-19005GB-GA
Our Price: $2,999.00

Click here to jump to more pricing!

Overview:

The purpose-built router

Cradlepoint endpoints provide industry-leading, 5G and Gigabit-Class LTE connectivity as well as Ethernet and Wi-Fi. These purpose-built endpoints are sold with a subscription to NetCloud Service for Mobile which provides streamlined configuration and continuous cloud, modem, and router software feature enhancements.


Cradlepoint’s NetCloud Mobile Performance Service with the R1900 Series Router is a ruggedized 5G networking platform, designed to provide persistent connectivity for in-vehicle deployments. Cradlepoint NetCloud provides connectivity, network, security, location, and IoT services to connect everything in the vehicle, while providing access to IT for remote management, troubleshooting, and analytics.


icon-firewall-throughput

Passthrough Throughput:
940 Mbps

icon-wan-connectivity

WAN Connectivity:
5G Low/Mid-Band & Cat 20 LTE

icon-lan-connectivity

LAN Connectivity:
Wi-Fi 6, GbE, BT 5.1

icon-firewall-throughput

Management:
NetCloud

Notable Features

  • Deploy the ultimate 5G NR / Cat 20 LTE mobile networking solution with industry-leading features
  • Add a second cellular modem with the optional RX30 managed accessory for simultaneous dual-carrier connectivity
  • Take advantage of Wi-Fi 6 for the best possible connections
  • Enable unified edge security with application aware multi-zone firewalls, IDS/IPS, and internet security
  • Define policies through centralized cloud-based management for easy deployment at scale
  • Integrate into Automatic Vehicle Location systems with discrete GNSS and dead reckoning
  • Create a cellular coverage map for complete visibility into your area’s 5G and LTE coverage
  • Extend your deployment with additional PoE ports, GPIOs, NetCloud SDK and API, Bluetooth, and container support for customizable solutions

Ideal for High-Performance In-Vehicle Connectivity

For organizations that depend on field forces and mobile networks, the Cradlepoint R1900 mobile router with the NetCloud Mobile Performance Service plan provides a ruggedized GNSS/GPS-enabled in-vehicle network solution. When coupled with the Advanced Mobile Performance Service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality including location tracking and cellular coverage maps. The R1900 accommodates environmentally harsh environments while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security.

5G Embedded High-Performance Solution

The R1900 mobile router includes an embedded 5G modem that can automatically connect to Cat 20 LTE if the vehicle moves outside of 5G coverage. In addition, the R1900 mobile router is designed to accept the RX30 managed accessories which provide either four additional GbE PoE ports or four additional GbE ports and a second modular modem. It also has the ability to act as a controller for a separate Cradlepoint 5G Wideband Adapter. These two capabilities, along with the continually improved NetCloud platform, ensure the ability for future expansion and the best investment protection available.

Performance


Stateful Firewall Throughput:

940 Mbps

IPS Throughput:

940 Mbps

Application Aware Services & Analytics:

940 Mbps

IPSec VPN Throughput:

400 Mbps


Concurrent VPN Tunnels:

20

Concurrent Sessions (TCP):

32,000

Typical Client Count:

100


Performance testing was conducted based on requirements as defined in RFC2544 using fixed-frame 1518 byte packets. Throughput results reflect unidirectional UDP traffic with less than 1% packet loss as tested with wired connections.

Results do not reflect performance of the cellular wireless operator networks.


Features and Benefits:

Key Software Capabilities

Cradlepoint NetCloud Mobile Performance Service with the R1900 mobile router provides everything needed to unlock the power of 5G and connect vehicles, users, and IoT to critical applications and services. NetCloud includes router software for optimizing routing, VPN, SD-WAN, and security capabilities along with capabilities centralized in the cloud such as group policy definition, reports, troubleshooting, and analytics dashboards as well as cellular coverage maps. The service comes with a warranty for as long as there is an active subscription on the router, online training, live and online support, and continuous software updates for both the router and the modem.


Coverage Map

NetCloud uses GNSS/GPS and 5G/4G cellular health to provide precise analytics about location and signal strength. Data can be mapped to display both the current and historical locations of a vehicle, as well as generate detailed coverage maps that display cellular health, allowing users to gain operational insights and solve problems.

Cradlepoint R1900 feature1


Cradlepoint R1900 feature2

Advanced Software Lifecycle Management

NetCloud improves the typical software lifecycle management process. New features are continuously delivered to NetCloud and become available for the router without interrupting network performance. Software versions are tracked for every endpoint, with the latest update just a click away. Straightforward subscription and license management is easily accessible and provided to keep the network running without interruption.


Security Services

NetCloud Advanced Service includes security features that include application aware zone-based firewall, CP Secure Threat Management (IPS/IDS), and CP Secure Web Filter for protecting your network and meeting the evolving security needs of in-vehicle environments.

Cradlepoint R1900 feature3


Cradlepoint R1900 feature4

Connection Manager

Connection Manager provides the ability to manage all WAN connection types, including wireless, Wi-Fi-as-WAN, and wired, from a single software-defined policy. Our proprietary modem software enables users to quickly establish robust Wireless WAN connectivity while maintaining the highest level of resiliency.

Specifications:


R1900 Router Specifications

Category

Mobile

Cloud Management

Yes

Wireless Connectivity

Dual Connectivity; 5G & Cat 20 LTE

5G Status

5G Embedded

Form Factor

Ruggedized Metal

Ethernet Ports

4 GbE (LAN/WAN switchable)

USB Ports

1

Serial Ports

1

Bluetooth

Yes, embedded Bluetooth 5.1

Dual-Modem Support

Yes, with RX30-MC

Network Operator Standards

PTCRB (U.S.), GCF (global)

Network Operator Certifications

AT&T, T-Mobile, Verizon



Regions

North America, Latin America, Europe, Africa/Middle East, Asia-Pacific



Public Safety Networks

FirstNet Ready™ (LTE now, 5G pending); T-Mobile Connecting Heroes; Verizon Frontline

Firewall Throughput

940 Mbps

VPN Tunnel Count

20



Wi-Fi

Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)



GNSS/GPS

Discrete active GNSS with dead reckoning

PoE

Yes, with RX30-PoE

Operating Temperature

-30 °C to 70 °C (-22 °F to 158 °F)

Rack Mountable

No

Private Cellular Network

Yes (4G, 5G, CBRS)

Size

172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in)

Weight

0.98 kg (2.15 lb)


Enterprise-Class Modem Specifications

Specification R1900-5GB
Technology 5G NR (low-band, mid-band FR1) and 4G LTE Category 20 LTE Advanced Pro with Dual Connectivity
  • Dual SIM slots, 4FF form factor
3G WCDMA/UMTS/HSPA+
Carrier Aggregation LTE only; up to 7CA downlink, 2CA uplink ENDC 5G + LTE; downlink and uplink supported
Peak Downlink Rates Up to 4.14 Gbps — based on 20 Layers LTE + TDD (100 MHz BW, 256 QAM, 4 x 4)
Peak Uplink Rates Up to 660 Mbps — based on 2 Layers LTE + TDD (100 MHz BW, 256 QAM, SISO)
MIMO 4x4 MIMO
QAM Up to 256
4G/LTE Bands B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
5G NR Bands
Firmware 01.07.xx
  • n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79
Firmware 03.09.03
  • n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n66, n71, n77, n78, n79
3G Bands B1, B2, B3, B4, B5, B6, B8, B9, B19
Power LTE only; 23 dBm ± 1 (typical conducted) ENDC 5G + LTE; 20 dBm ± 1 (typical conducted)
Antennas 4 x SMA female connectors
  • External cabled out 600 MHz - 6 GHz cellular antennas (not included)
GNSS/GPS Discrete active GPS with dead reckoning
SMS Yes
Regulatory FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ) (pending)
Network Operator Standards PTCRB (U.S., Canada), GCF (Worldwide)
Network Operator Certifications AT&T, T-Mobile, Verizon*
Public Safety Network Certifications FirstNet Ready™ (LTE now, 5G pending), T-Mobile Connecting Heroes, Verizon Frontline, Verizon Response Verified (pending)
Private Cellular Network Yes, includes FCC Part 96 (CBRS Band 48)

* Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications, to operate on their network. A carrier listed in the approvals section means Cradlepoint completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.


Documentation:

Download the Cradlepoint R1900 series 5G Ruggedized Router Datasheet (.PDF)

Pricing Note:

Cradlepoint Products
NetCloud Mobile Performance Essentials Plan + Router
NetCloud Mobile Performance Essentials Plan and R1900 router with Wi-Fi (5G modem), 1 year
Note: no AC power supply or antennas
#MB01-19005GB-GA
Our Price: $1,999.00
NetCloud Mobile Performance Essentials Plan and R1900 router with Wi-Fi (5G modem), 3 years
Note: no AC power supply or antennas
#MB03-19005GB-GA
Our Price: $2,499.00
NetCloud Mobile Performance Essentials Plan and R1900 router with Wi-Fi (5G modem), 5 years
Note: no AC power supply or antennas
#MB05-19005GB-GA
Our Price: $2,999.00
NetCloud Mobile Performance Essentials + Advanced Plan + Router
NetCloud Mobile Performance Essentials + Advanced Plan, and R1900 router with Wi-Fi (5G modem), 1 year
Note: no AC power supply or antennas
#MBA1-19005GB-GA
Our Price: $2,199.00
NetCloud Mobile Performance Essentials + Advanced Plan, and R1900 router with Wi-Fi (5G modem), 3 years
Note: no AC power supply or antennas
#MBA3-19005GB-GA
Our Price: $3,099.00
NetCloud Mobile Performance Essentials + Advanced Plan, and R1900 router with Wi-Fi (5G modem), 5 years
Note: no AC power supply or antennas
#MBA5-19005GB-GA
Our Price: $3,999.00
NetCloud Mobile Performance Networking - Renewal
NetCloud Mobile Performance Networking — Essentials Packages Renewal, 1 year
#MB01-NCESS-R
Our Price: $246.00
NetCloud Mobile Performance Networking — Essentials Packages Renewal, 3 years
#MB03-NCESS-R
Our Price: $738.00
NetCloud Mobile Performance Networking — Essentials Packages Renewal, 5 years
#MB05-NCESS-R
Our Price: $1,230.00
NetCloud Mobile Performance Networking — Advanced Packages Renewal, 1 year
#MB01-NCADV-R
Our Price: $204.00
NetCloud Mobile Performance Networking — Advanced Packages Renewal, 3 years
#MB03-NCADV-R
Our Price: $612.00
NetCloud Mobile Performance Networking — Advanced Packages Renewal, 5 years
#MB05-NCADV-R
Our Price: $1,020.00
NetCloud Mobile Performance Networking — Essentials + Advanced Packages Renewal, 1 year
#MBA1-NCEA-R
Our Price: $450.00
NetCloud Mobile Performance Networking — Essentials + Advanced Packages Renewal, 3 years
#MBA3-NCEA-R
Our Price: $1,350.00
NetCloud Mobile Performance Networking — Essentials + Advanced Packages Renewal, 5 years
#MBA5-NCEA-R
Our Price: $2,250.00
