Cradlepoint S700 Series Semi-Ruggedized Router
Semi-ruggedized router with GNSS/GPS and zero trust security for mission-critical IoT
Get a Quote!
Our Price: $540.00
Our Price: $609.00
Get a Quote!
Our Price: $745.00
Our Price: $951.00
Click here to jump to more pricing!
Overview:
Built for IoT deployments
The S700 Series with Cradlepoint’s NetCloud Service for IoT is a comprehensive cloud-managed network solution that can be rapidly deployed, easily scaled, and zero-trust secured. It is ideal for high-availability portable or fixed applications such as surveillance cameras, digital signs, oil and gas monitoring, and parallel networking. Offering connectivity through LTE plus wired and Wi-Fi options, the S700 accommodates a variety of use cases in high-availability, portable, or fixed uses. The S700 Series is available with IoT NetCloud Service Plans, which provide features optimized for each unique deployment.
Firewall Throughput:
480 Mbps
WAN Connectivity:
4G Cat 4, GbE
LAN Connectivity:
Wi-Fi 6, GbE
Management:
NetCloud
Notable Benefits
- Define policies through centralized cloud-based management for easy deployment at scale
- Gain reliable connectivity with Cat 4 LTE
- Deploy NetCloud Exchange (NCX), a unified network and security WAN architecture built upon zero-trust principles
- Take advantage of Wi-Fi 6 for the best possible connections
- Extend your deployment and enable customized solutions with connectors, SDKs, and API support
- Locate assets and provide geofencing with active GNSS/GPS
- Prioritize access to public safety networks for reliable, secure connectivity
- Antennas and power adapter not included with all SKUs
Semi-Ruggedized IoT Solution
When coupled with the NetCloud IoT service plan, the S700 router provides a compact, semi-ruggedized 4G LTE router solution for connecting and protecting IoT devices at scale. With an IP30-rated aluminum housing built to withstand vibration and temperature extremes and designed for DIN rail mounting, the S700 is ideal for use in light industrial applications such as oil and gas monitoring or in portable or fixed applications such as surveillance cameras, digital signs, and parallel networking. With an extensive list of features, it can be confidently deployed in the field, in buildings, or in embedded systems to deliver complete visibility, security, and control of connected devices anywhere.
Advanced, Cloud-Managed IoT Solution
For organizations requiring robust connectivity for IoT networks — with installed routers numbering from hundreds to many thousands — Cradlepoint’s NetCloud Service for IoT with the S700 router provides a comprehensive cloud managed network solution. When coupled with advanced IoT features, it provides troubleshooting and diagnostics with in-band and Out-of-Band Management, extensive analytics and insights, and extensibility and integrations such as Microsoft Azure IoT Central. Cradlepoint’s NetCloud-managed IoT endpoints can be rapidly deployed and easily scaled to accommodate the diverse requirements of organizations.
Key Software Capabilities:
Cradlepoint NetCloud Service for the S700 Series Router includes the appropriate router software with powerful cloud management features for managing IoT at scale. The NetCloud Service includes cloud-based management for optimizing routing, secure tunneling, traffic steering, and foundational security capabilities. The cloud capabilities include defining and applying policies, at-a-glance status insights, reports, troubleshooting, and analytics dashboards. The service includes a warranty for as long as an active IoT Essentials or Essentials + Advanced subscription on the router, online training, live and online support, and all software and firmware updates.

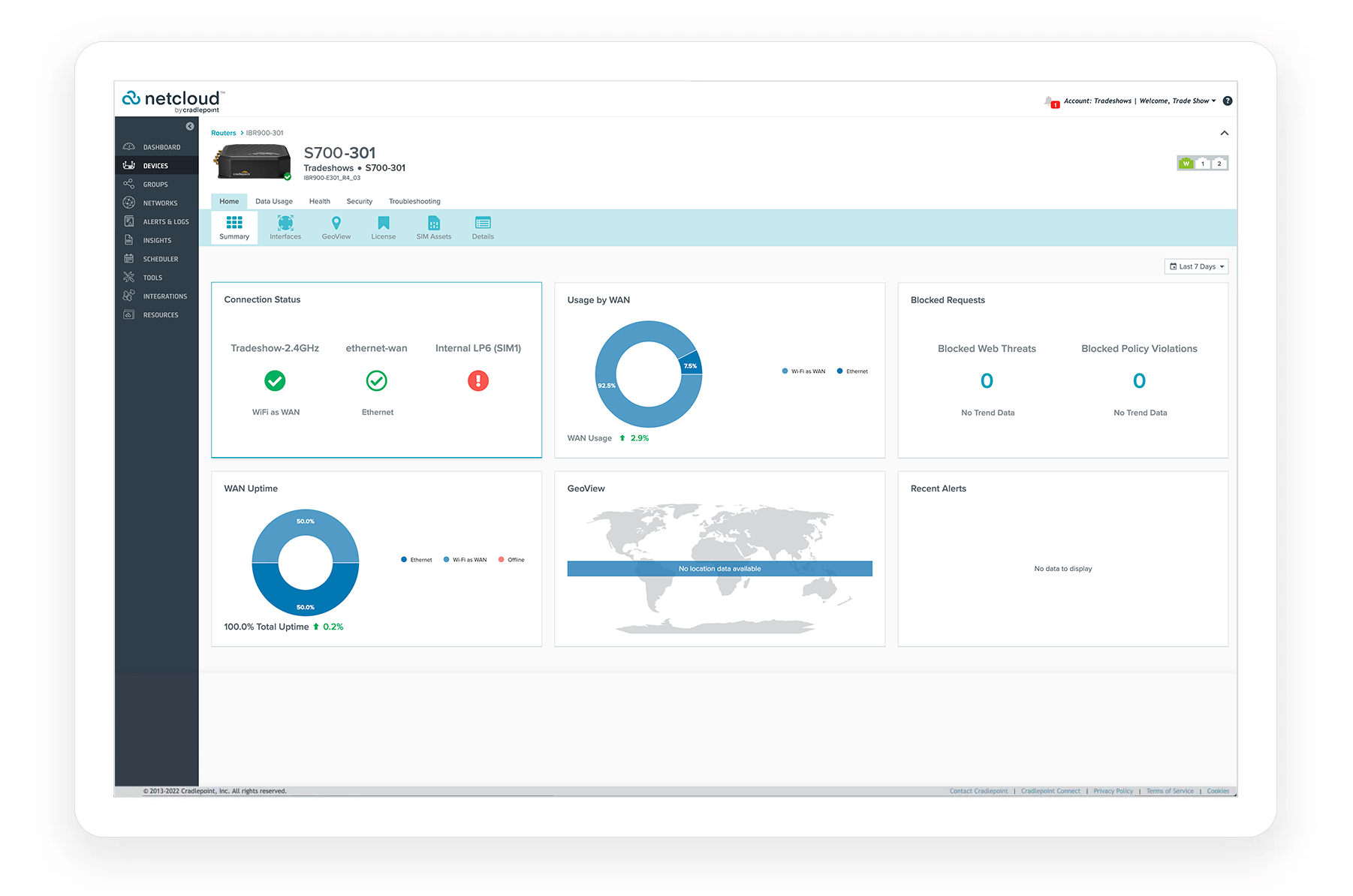

Encrypted Routing Services
The NetCloud Service plus the S700 Series Router provides local processing power to handle demanding, router-delivered services, such as support for VPN tunneling encryption including DMVPN, IPsec, GRE, and other tunneling technologies.

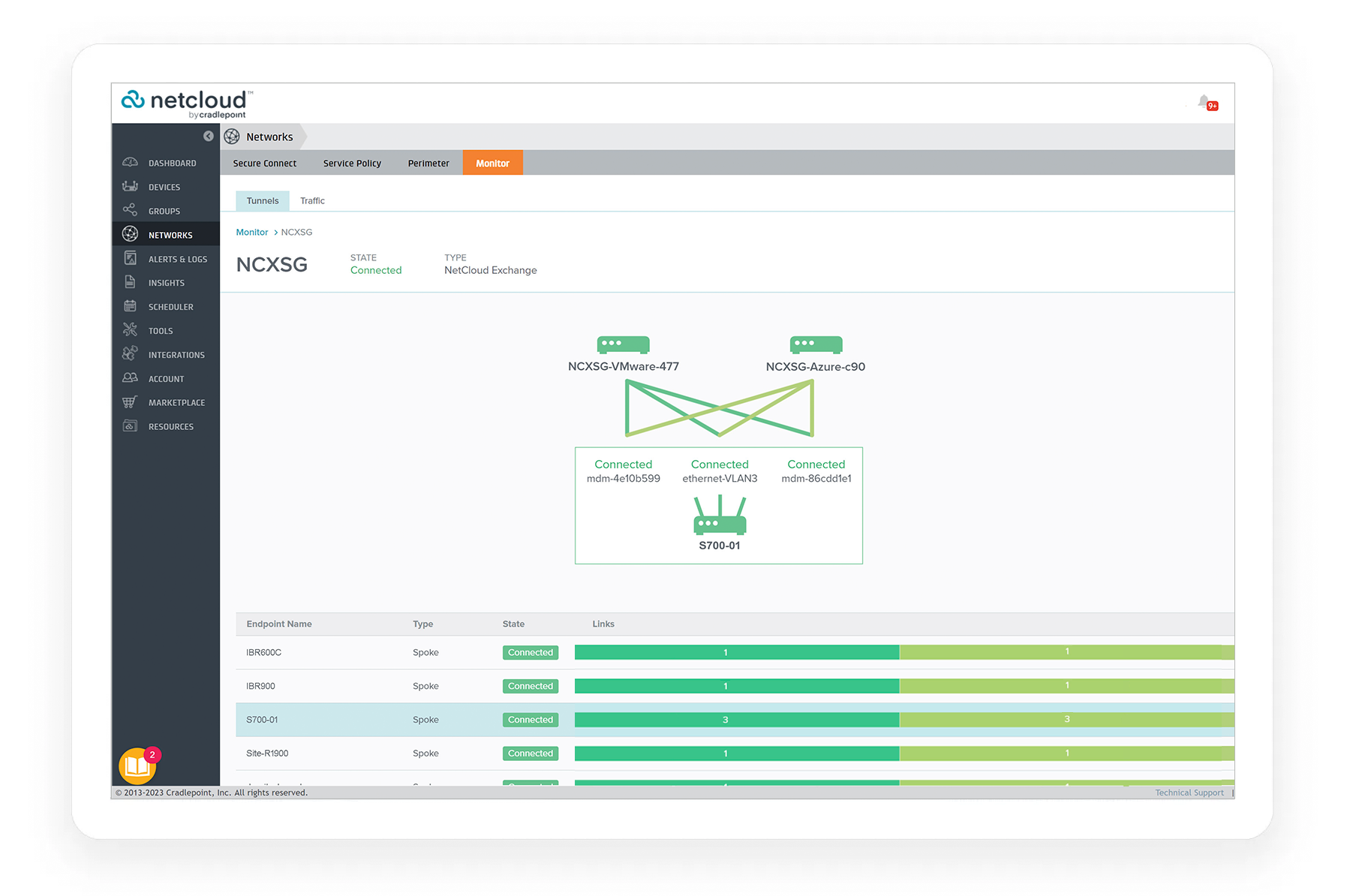

Security Services
Cradlepoint zero trust security networking, delivered through NetCloud Exchange (NCX) Secure Connect, protects the Cradlepoint IoT routers and any connected devices through connect-and-go ease. IoT or other devices simply connect to the router with encrypted tunnels to build micro networks that are instantly hidden from internal and external sites. Access policies are easily defined to enable IoT devices to communicate only with their authorized resources or applications and nothing else. The simple and secure zero trust access, delivered through NCX ZTNA, also enables authorized third parties’ remote access to IoT devices on the WAN for remote monitoring and maintenance.

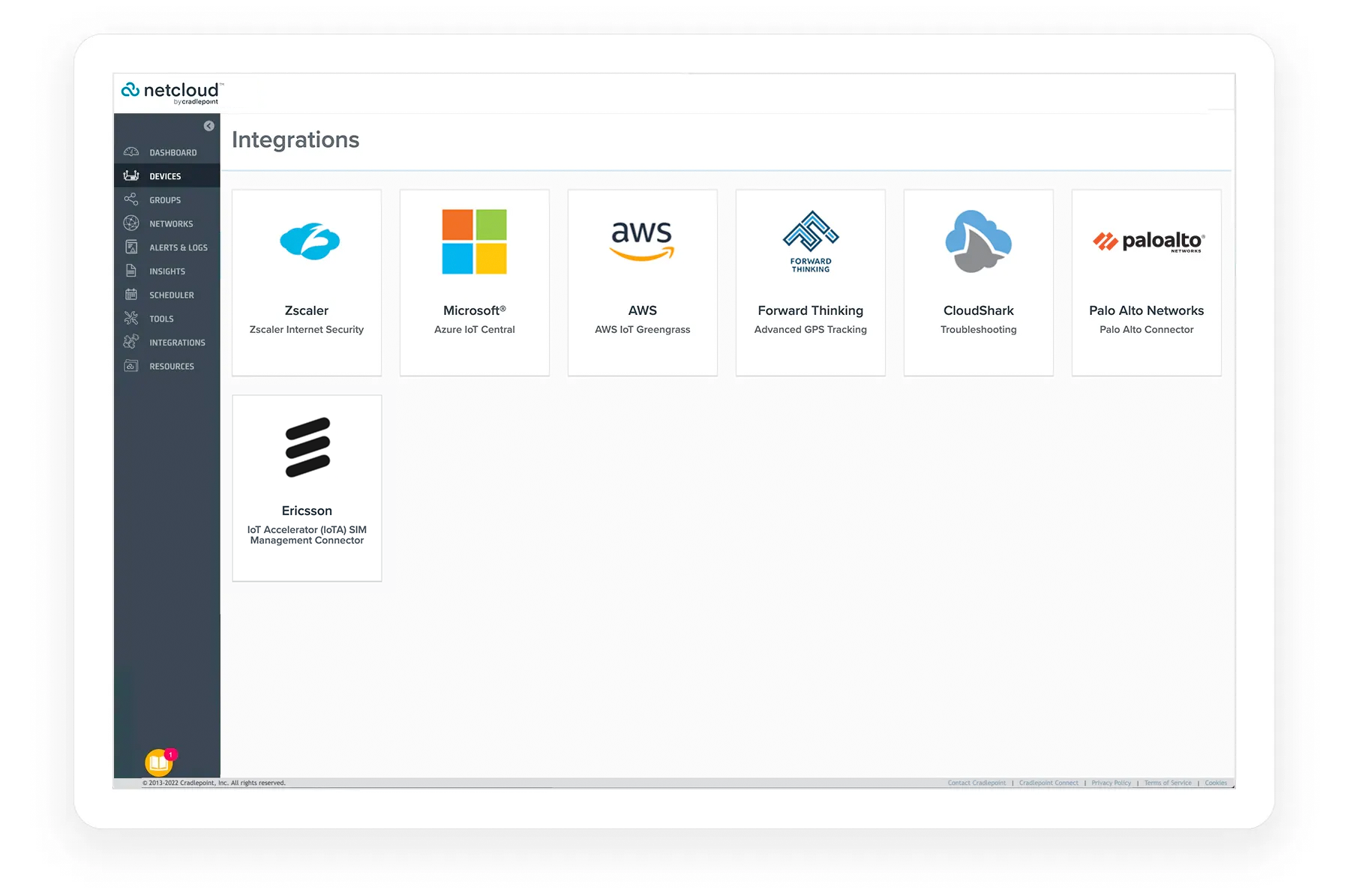

Extensibility and Integrations
NetCloud Service and the S700 Series Router can access network data that third-party applications need to provide higher levels of insights and control. Leverage pre-built connections to partner applications or create custom connections across a variety of use cases using the NetCloud SDK or NetCloud API.

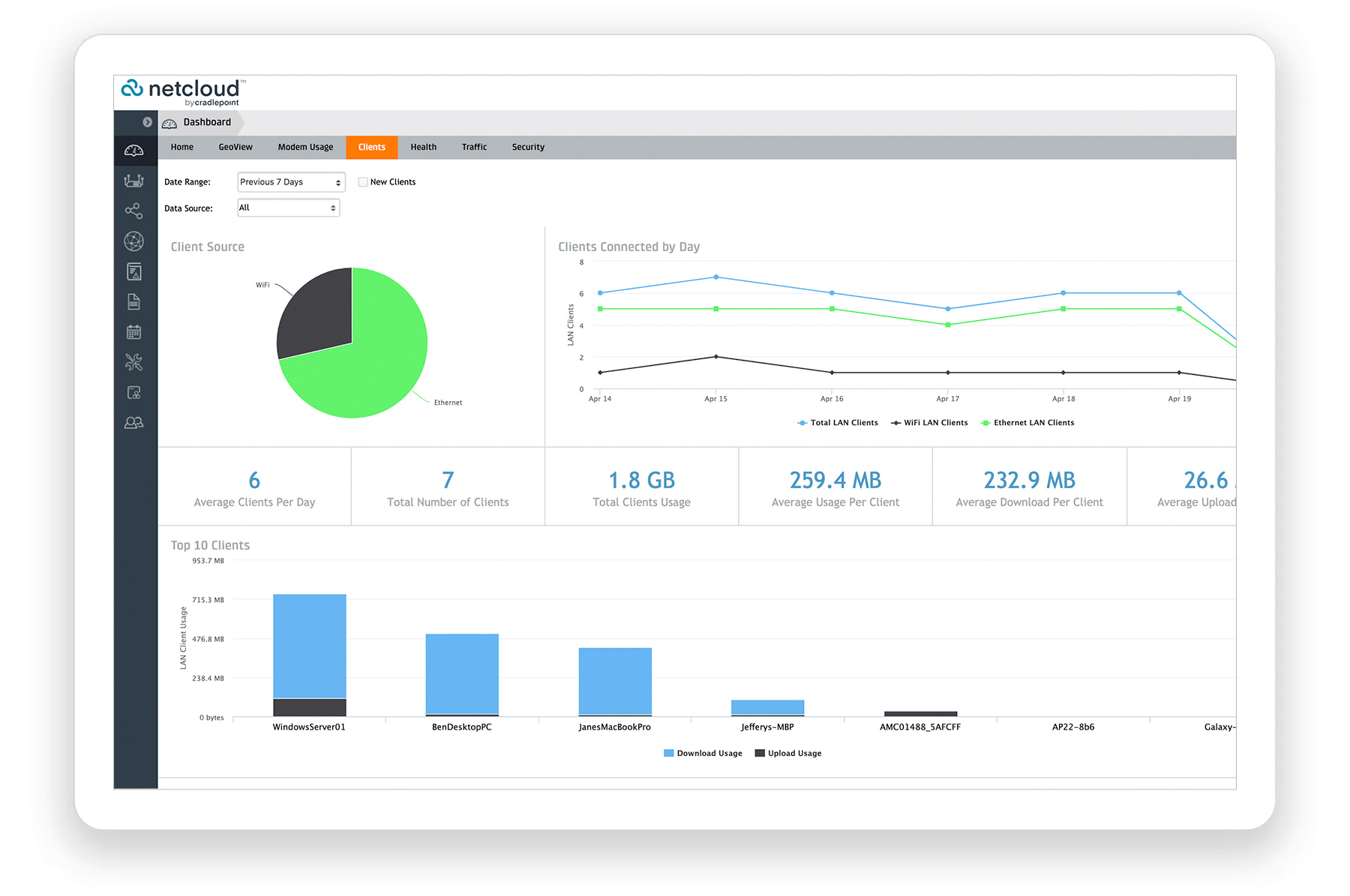

Cloud Services
NetCloud Manager delivers true, zero-touch deployment with the ability to define and deliver policy across entire groups of endpoints. Users can create a cloud-orchestrated hub and spoke VPN network and gain insights and analytics required for rapid troubleshooting and diagnostic workflows.
Specifications:
Hardware Specifications
The following features are delivered through the hardware.
| S700 Semi-Ruggedized Router Specifications | |
|---|---|
| Interfaces | |
| Modem | Embedded Cat 4 LTE modem
|
| Ethernet | 2 x 1 GbE RJ45 (LAN/WAN switchable) |
| Wi-Fi | Dual-radio, dual-band, concurrent operation (2.4 GHz and 5 GHz)
|
| Expansion | 1 x USB 2.0 Type A (output: 5 V, 500 mA, 2.5 W) |
| GNSS / GPS | 1 x SMA GNSS antenna connector |
| Environmental | |
| Temperature |
|
| Humidity |
|
| Ingress Protection | IP30 |
| Power | |
| Required | 9-33 VDC steady state input |
| Features |
|
| Consumption |
|
| Physical | |
| Size | 123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in) |
| Weight | 516 g (18.2 oz) |
| Construction | Aluminum housing |
| Reliability | |
| Calculated MTBF |
|
| Certifications | |
| Safety |
|
| Vehicle | SAE J1455 Operating Sinusoidal Vibe, Category 2 |
| Rail | EN 61373 Category 1, Class B (Railway rolling stock) |
| Materials |
|
| Security | FIPS 140-3 Level 1 Module in Process (S700 and S705 FIPS models only) |
| Shock/Vibration/Humidity |
|
| Edge Computing | |
| CPU | Dual-core ARMv8 64-bit |
| Memory | Up to 512 MB |
| Flash Storage | Up to 8 GB |
| Applications | N/A |
| Cloud Services | |
| Service Plans | NetCloud Service for IoT |
| Service Add-Ons | NetCloud Exchange, NetCloud Advanced |
| Support | NetCloud Packages include support for the full subscription term. |
| Warranty | All Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active NetCloud Service Plan. |
| Device Management | NetCloud Manager for the full subscription term. |
| Software Updates | NetCloud Manager for the full subscription term. |
| Wi-Fi Power | |
| FCC |
|
| Rest of World |
|
| Performance | |
| Stateful Firewall Throughput | 480 Mbps |
| IPS Throughput | 480 Mbps |
| Application Aware Services & Analytics | 480 Mbps |
| IPsec VPN Throughput | 50 Mbps |
| Concurrent VPN Tunnels | 15 |
| Concurrent Sessions (TCP) | 100,000 |
| Typical Client Count | 20 |
Enterprise-Class Modem Specifications
| Specification | S700-C4D | S700-C4E | S750-C4D |
|---|---|---|---|
| Technology | Cat 4 LTE (3GPP Rel. 11), DC-HSPA+
|
Cat 4 LTE (3GPP Rel. 11), DC-HSPA+
|
Cat 4 LTE (3GPP release 11), DC-HSPA+
|
| Fallback | WCDMA/UMTS/HSPA+ | UMTS/HSPA+ | WCDMA/UMTS/HSPA+ |
| Carrier Aggregation | N/A | N/A | N/A |
| Peak Downlink Rates |
|
|
|
| Peak Uplink Rates |
|
|
|
| MIMO | 2x2 MIMO | 2x2 MIMO | 2x2 MIMO |
| Modulation | Up to 16 QAM | Up to 16 QAM | Up to 16 QAM |
| 4G/LTE Bands | LTE FDD
|
LTE FDD
LTE TDD
|
LTE FDD
|
| 3G Bands | B2, B4, B5 | B1, B2, B4, B5, B6, B8, B19 | B2, B4, B5 |
| GSM/EDGE | N/A | B2, B3, B5, B8 | N/A |
| Power | LTE 23 dBm ± 2, DC-HSPA+ 23 dBm ± 1 (typical conducted) | LTE 23 dBm ± 2, DC-HSPA+ 23 dBm ± 1 (typical conducted) | LTE 23 dBm ± 2; HSPA+ 23 dBm ± 1 (typical conducted) |
| Antennas | SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included only with certain packages) | SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included only with certain packages) | SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included only with certain packages) |
| GNSS/GPS | Active GNSS
|
Active GNSS
|
Active GNSS
|
| SMS | Yes | Yes | Yes |
| Regulatory | FCC (U.S.), IC (Canada) | FCC (U.S.), IC (Canada), CE (European Union), RCM (AU/NZ) | FCC (U.S.), IC (Canada) |
| Network Operator Standards | PTCRB (U.S., Canada) | PTCRB (U.S., Canada), GCF (Worldwide) | PTCRB (U.S., Canada) |
| Network Operator Certifications | AT&T, T-Mobile, Verizon* | Verizon* | AT&T, T-Mobile, Verizon |
| Public Safety Network Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline | N/A | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline |
| Private Cellular Network | N/A | N/A | N/A |
* Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications. A carrier listed in the approvals section means Cradlepoint completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.
Software Features:
Software feature availability depends on the service plan selected. Learn more about the NetCloud Service packages.
NetCloud IoT Service Features
Cellular Intelligence
- Cellular health with live stats and diagnostics
- Carrier Selection Intelligence
- Location services with serving cell tower
- SIM Management
- Carrier data usage management and alerting
5G SASE
- Zero Trust Private Access
- Zero Trust Internet Access
- Zero Trust SD-WAN
Cloud Management
- Zero-touch deployment
- Network visualization and monitoring
- Bulk configuration and software updates
- Live stats for cellular, wired, and Wi-Fi
- Application performance and quality of experience analytics
- Multi-layered dashboards and shareable reports
- User and license management
Remote Troubleshooting
- Real-time diagnostics and alerts
- Integrated 5G speed test with results history
- Out-of-Band Management for third-party routers
- In-Band Management for third-party LAN devices
Extensibility
- SDK, API, and prebuilt third-party integrations
Router-based Networking and Security
- Dynamic routing and Wi-Fi as WAN
- Zone-based firewall
Documentation:
Download the Cradlepoint S700 Series Semi-Ruggedized Router Datasheet (.PDF)
