Cradlepoint COR IBR1100
Ruggedized 3G/4G LTE Router Designed with WiFi for Reliable In-Vehicle Connectivity

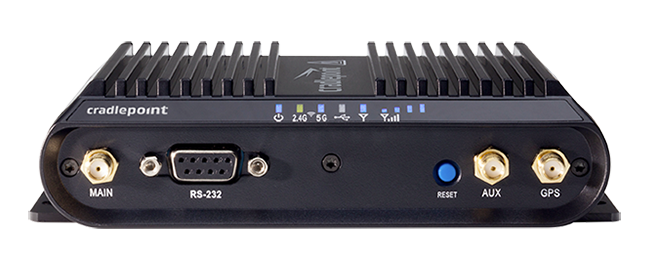

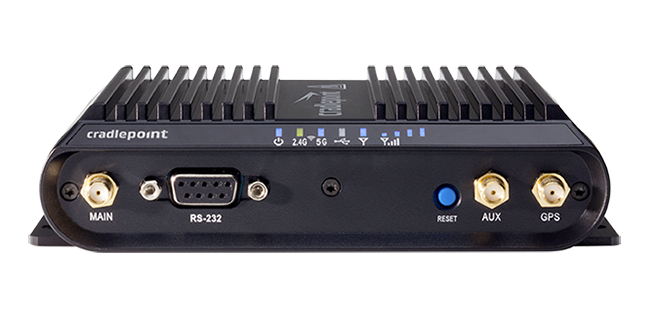

Cradlepoint COR IBR1100

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Overview:

Ideal for Mass Transit, Police Cars, Ambulances, Utilities and More

Ideal for Mass Transit, Police Cars, Ambulances, Utilities and More

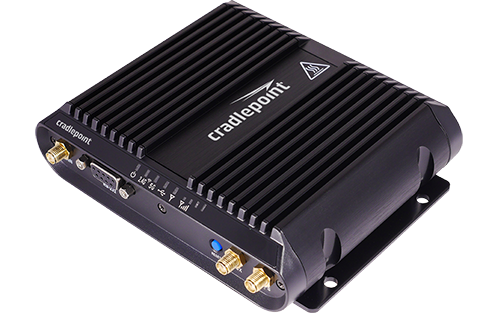

The Cradlepoint COR IBR1100 Series is a compact, ruggedized 3G/4G/LTE networking solution designed for mission-critical connectivity in the most challenging environments. Ideal for in-vehicle networks including police cars, ambulances, and mass transit, this cloud-managed solution provides organizations the ability to scale deployments quickly and manage their vehicle networks easily in real-time. With an extensive list of safety and hardening certifications, the COR IBR1100 is engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, water splash, reverse polarity, and transient voltage.

The COR IBR1100 Series supports Cradlepoint NetCloud Engine, and can be added to secure, cloud-based networks in minutes. It also supports Cradlepoint Extensibility Platform elements and can be customized to support the unique requirements of customer-specific applications.

  • Supports LTE Advanced with SIM-based auto-carrier selection (LP6, LP4 versions only)
  • Dual-modem dock for increased availability
  • Cloud-managed
  • Dual-band, dual concurrent WiFi (802.11 a/b/g/n/ac)
  • Ruggedized for vibration, shock, dust, splash & humidity
  • Ignition sensing
  • Certified 3G/4G/LTE enterprise grade internal modems
  • Software defined radio supports multiple carriers (Gobi)
  • Built-in transient and reverse polarity voltage protection
  • 9–36 DC voltage input range
  • Integrated temperature sensor
  • Active GPS support

Mission-Critical Networking for the Most Challenging Environments

Wired and Wireless Routing Platforms for M2M/IoT & In-Vehicle

Keep your vehicles, machines, and IoT networks connected and cloud-managed 24/7 with the Cradlepoint COR Series, the most reliable, capable, and rugged routers in the industry. Purpose-built for the most demanding M2M / IoT and mobile in-vehicle connectivity.

  • Fully integrated with Cradlepoint NetCloud Platform for cloud management and virtual cloud networking.
  • Supported by Cradlepoint Extensibility Platform & SDK to enable an infinite set of applications and capabilities.

In-Vehicle

Ensure mission-critical connectivity on the move

Key Features:

  • IBR1100 & IBR900 are purposebuilt for vehicles
  • Ruggedized for vibration, shock, dust, splash, humidity
  • Supports LTE Advanced & active GPS
  • Advanced security, VPN, stateful firewall
  • Extensibility Dock for second modem, more ports, etc.
  • Constant network access anywhere

M2M / IoT

The most reliable networking solutions for M2M/IoT

Key Features:

  • Compact form factor & ruggedized for extreme applications
  • Built-in wired & multi-carrier wireless failover
  • Supports advanced routing protocols
  • Extensibility dock for more GPIOs
  • Router SDK enables custom applications

Parallel Networks

Safeguard mission-critical networks such as payment systems, banking & healthcare

Key Features:

  • Air-gapped, highly secure connectivity
  • Simplified, secure network configuration
  • Remote monitoring & alerts
  • Day-1 Internet
  • Decrease PCI scope

Features:

In-Vehchle Networking and More

  • For a broad range of in-vehicle networks & extreme M2M applications
  • Supports LTE Advanced with SIM-based autocarrier selection (LP6, LP4 modems only)
  • Dual-band, dual concurrent WiFi for passenger and device connectivity*
  • Fully ruggedized for vibration, shock, dust, splash & humidity
  • Ignition sensing & built-in transient & reverse polarity voltage protection
  • Active GPS for easy integration into AVL systems (Automatic Vehicle Location)

NetCloud Platform

  • Cloud-managed for ease of deployment, remote management, & reporting
  • Supports NetCloud Engine for easy integration into cloud-based networks

Extensibility

  • COR Extensibility dock for increased availability & bandwidth
  • Supports FirstNet (Band 14) modem (MC400L2) for first responders
  • Supports Router SDK for customized scripts running on the router
  • Supports Router API to utilize router data in 3rd party applications & network management tools

*IBR1100 only

Benefits:

Increase Network Availability

  • Multi-carrier 4G LTE support with dual SIM capability
  • Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi
  • Ruggedized to ensure always-on connectivity
  • Create real-time alerts to monitor uptime

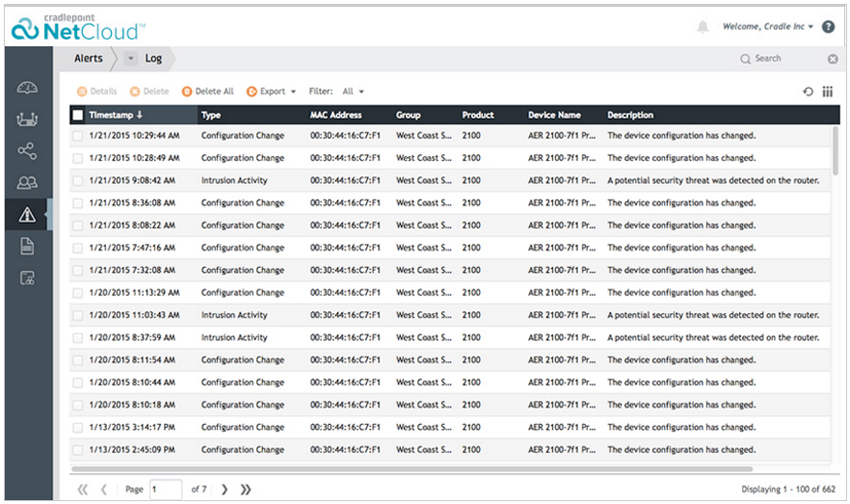

ECM Alerts

Enhance the Connected Experience

  • Improve the ridership experience with high-speed, highly available connectivity
  • Offer secure, guest WiFi to passengers
  • Enable connected devices like digital signage, drivers’ tablets, payment systems, and EMS response systems

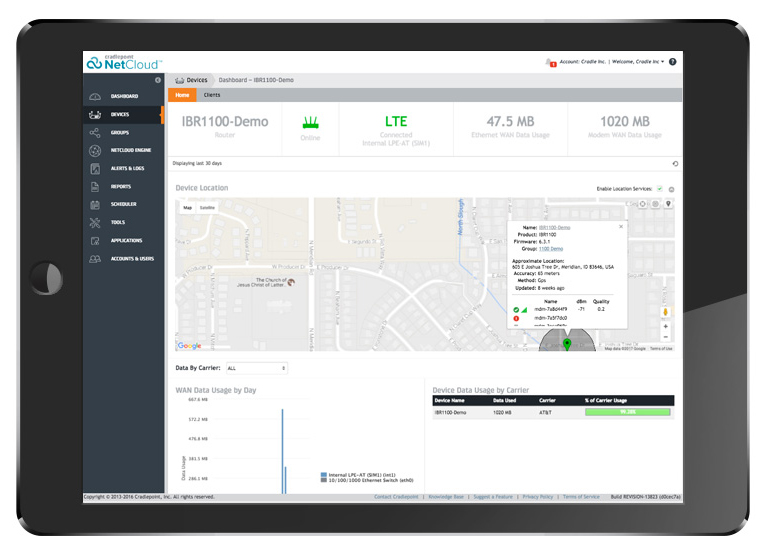

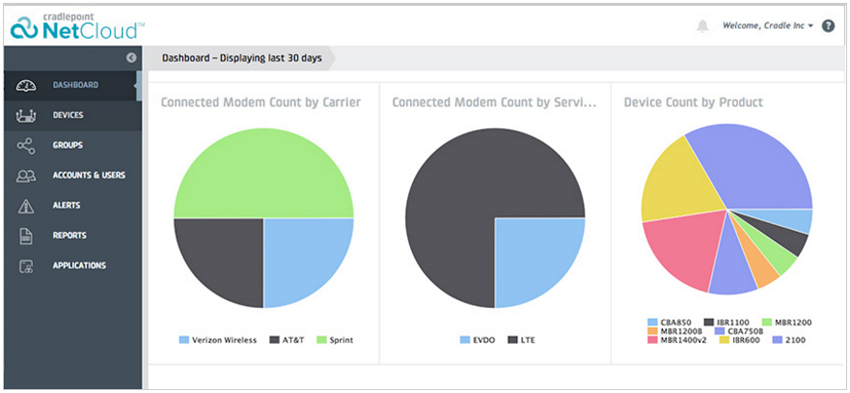

ECM Dashboard

Deploy Quickly, Scale, and Lower Installation Costs

  • Increase speed to deployment with “zero-touch” configuration
  • Simplify installation with built-in voltage protection and ignition sensing
  • Flexible GPS reporting for easy integration with Automatic Vehicle Location (AVL) systems

Deploy Quickly, Scale, and Lower Installation Costs

Secure and Protect

  • Advanced security, VPN, and stateful firewall to protect sensitive data
  • Designed for PCI compliant network architectures
  • Cloud-managed security and content filtering (CIPA compliant)

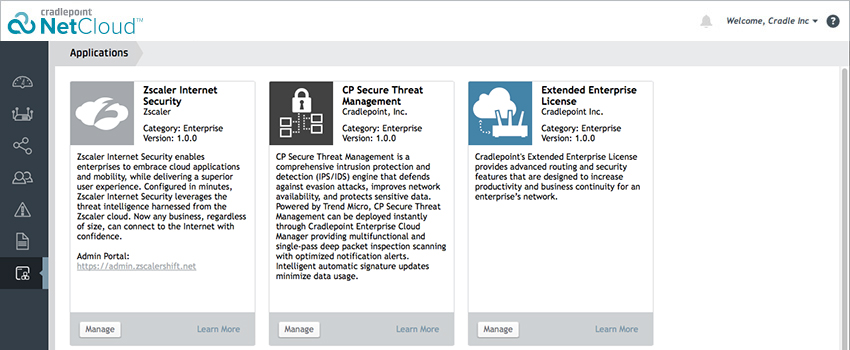

ECM Security Apps

Specifications:


Cradlepoint IBR1100 / IBR1150 Series Specifications
Technical Specifications
WAN

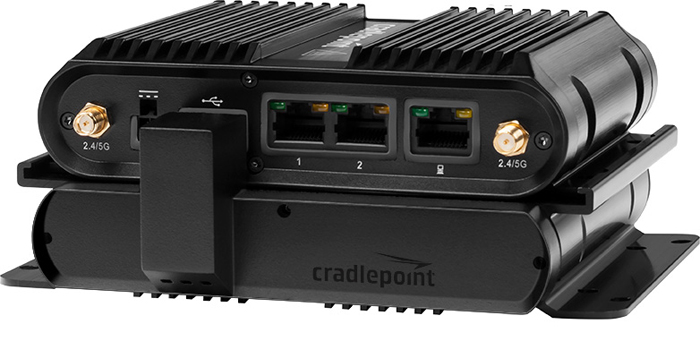

  • Dual-modem capable with optional IBR1100/IBR1150 Dual-Modem Dock
  • Integrated LP6 Category 6 LTE Advanced LTE modem (with DC-HSPA+ failover) or LPE 4G LTE modem (with HSPA+/ EVDO/3G and 2G failover) or LP3 4G LTE modem (with HSPA+ and 2G failover)
  • Three LAN/WAN switchable 10/100 Ethernet ports – one default WAN (cable/DSL/T1/satellite/Metro Ethernet)
  • WiFi as WAN, Metro WiFi; 2x2 MIMO “N” 2.4 GHz or 5 GHz; 802.11 a/b/g/n/ac (IBR1100 only)
LAN
  • Dual-band, dual-concurrent WiFi; 802.11 a/b/g/n/ac (IBR1100 only)
  • Three LAN/WAN switchable 10/100 Ethernet ports – two default LAN
  • Serial console support for out-of-band management of a connected device

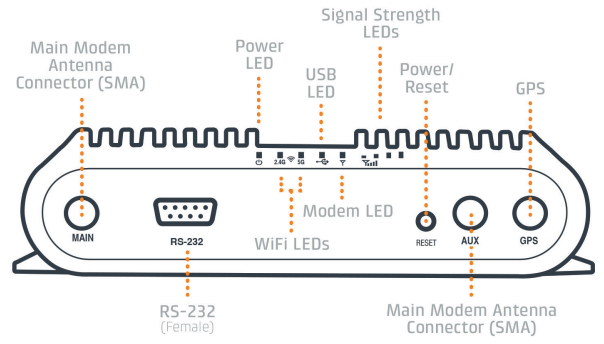

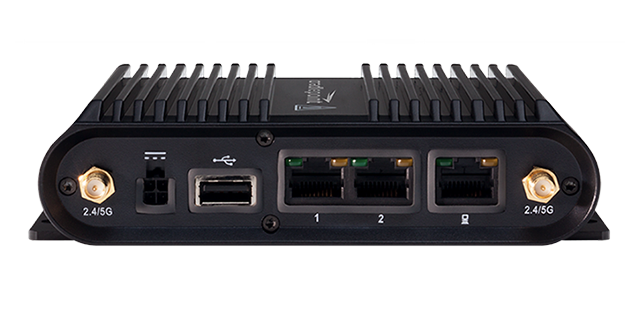

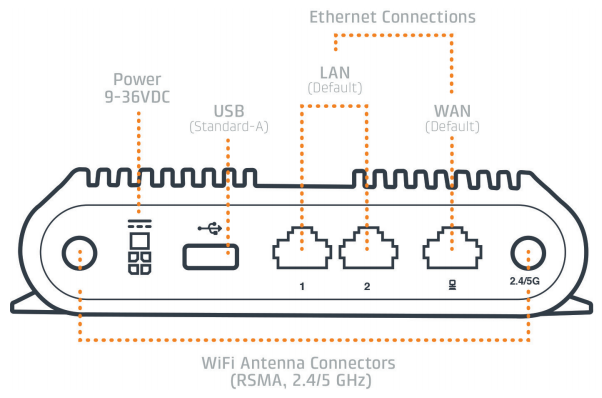

Ports
  • Power
  • 2-wire GPIO
  • USB 2.0
  • 3 Ethernet LAN/WAN
  • 2 cellular antenna connectors (SMA)
  • 1 active GPS antenna connector (SMA)
  • 2 WiFi antenna connectors (R-SMA)
  • Serial DE-9 (commonly called "DB-9") connector – RS-232 (Out-of-Band Management of an external device requires a null modem adapter/cable)
Temperature
  • −30 °C to 70 °C (−22 °F to 158 °F) ambient air operating
  • −40 °C to 85 °C (−40 °F to 185 °F) storage
  • Includes temperature sensor with options for alerts and automatic shutoff
Humidity (non-condensing)
  • 5% to 95% operating non-condensing
  • 5% to 95% storage non-condensing
Power
  • DC input steady state voltage range: 9–36 VDC (requires inline fuse for vehicle installations)
    • For 9–24 VDC installations, use a 3 A fuse
    • For > 24 VDC installations, use a 2.5 A fuse
  • Reverse polarity and transient voltage protection per ISO 7637-2
  • Ignition sensing (automatic ON and time-delay OFF)
  • Power consumption:
    • Idle: typical=400mA@12VDC (4.8W); worst case=800mA@12VDC (9.6W)
    • Tx/Rx: typical=650mA@12VDC (7.8W); worst case=1300mA@12VDC (15.6W)
    • 12VDC 2A adapter recommended
Size 5.3 in x 4.4 in x 1.4 in (134 mm x 112 mm x 35 mm)
Weight 16.1 oz (457 g)
Certifiication
  • FCC, CE, IC
  • WiFi Alliance (IBR1100 only) – 802.11a/b/g/n certified, 802.11ac supported
  • Safety: UL/CUL, CB Scheme, EN60950-1
  • Hazardous Locations: Class I, Div. 2
  • Shock/Vibration/Humidity: compliant with MIL STD 810G and SAEJ1455
  • Ingress Protection: compliant with IP64 (includes protection from dust and splashing water)
  • Materials: WEEE, RoHS, RoHS-2, California Prop 65
  • Vehicle: E-Mark, compliant with ISO 7637-2
  • Telecom: PTCRB/CTIA, GCF-CC
WiFi Power
  • 2.4 GHz band: 17 dBm conducted
  • 5 GHz band: 15 dBm conducted
GPS
  • GPS Protocols: TAIP and NMEA 0183 V3.0
  • Satellite channels: Maximum 30 channels (16 GPS, 14 GLONASS), simultaneous tracking
  • Concurrent standalone GPS, GLONASS, BeiDou and Galileo (LP6 models only)
  • 1 Hz refresh rate
  • Accuracy:
    • < 2m: 50%
    • < 5m: 90%
    • Horizontal: < 2m (50%); < 5m (90%)
    • Altitude: < 4m (50%); < 8m (90%)
    • Velocity: < 0.2 m/s
  • Acquisition:
    • Hot start: 1 second
    • Warm start: 29 seconds
    • Cold start: 32 seconds
  • Sensitivity
    • Tracking: −160 dBm (tracking sensitivity is the lowest GNSS signal level for which the device can still detect an in-view satellite 50% of the time when in sequential tracking mode)
    • Acquisition (standalone): −145 dBm (acquisition sensitivity is the lowest GNSS signal level for which the device can still detect an in-view satellite 50% of the time)
  • Operational limits: altitude < 6000 m or velocity < 100 m/s (either limit may be exceeded, but not both)
Specific Features
WAN
  • Dual-modem capable with optional IBR1100/IBR1150 Dual-Modem Dock
  • LP6: LTE Advanced LTE/HSPA+ (SIM-based Auto-Carrier Selection for all North American carriers)
  • LPE: 4G LTE/HSPA+/EVDO (multi-carrier, North America)
  • LP3: 4G LTE/HSPA+ (Europe, EMEA, and Australia/New Zealand)
  • WiFi as WAN1
  • Failover/Failback
  • Load Balancing
  • Advanced Modem Failure Check
  • WAN Port Speed Control
  • WAN/LAN Affinity
  • IP Passthrough
  • Standby
LAN
  • VLAN 802.1Q
  • DHCP Server, Client, Relay
  • DNS and DNS Proxy
  • DynDNS
  • UPnP
  • DMZ
  • Multicast/Multicast Proxy
  • QoS (DSCP and Priority Queuing)
  • MAC Address Filtering
WiFi (only on IBR1100)
  • Dual-Band, Dual-Concurrent
  • 802.11 a/b/g/n/ac
  • Up to 128 connected devices (64 per channel – 2.4 GHz and 5 GHz)
  • WPA2 Enterprise (WiFi)
  • Hotspot/Captive Portal
  • SSID-based Priority
  • Client Mode (5 GHz only) for faster data offload
Management
  • radlepoint Enterprise Cloud Manager2
  • Web UI, API, CLI
  • Active GPS support on all models
  • Data Usage Alerts (router and per client)
  • Advanced Troubleshooting (support)
  • Device Alerts
  • SNMP
  • SMS control
  • Serial Redirector
  • Auto APN recovery
VPN and Routing
  • IPsec Tunnel – up to five concurrent sessions
  • L2TP3
  • GRE Tunnel
  • OSPF/BGP/RIP3
  • Route Filters (Access Control Lists, Prefix Filters, Route Maps, Communities for BGP)
  • Per-Interface Routing
  • Routing Rules
  • Policy-based Routing
  • NAT-less Routing
  • Virtual Server/Port Forwarding
  • NEMO/DMNR3
  • IPv6
  • VRRP3
  • STP3
  • NHRP3
  • VTI Tunnel support
  • OpenVPN support
  • CP Secure VPN compatible
  • Serial PAD Mode
Security
  • RADIUS and TACACS+ support*
  • 802.1x authentication for Ethernet
  • Zscaler integration3
  • Certificate support
  • ALGs
  • MAC Address Filtering
  • Advanced Security Mode (local user management only)
  • Per-Client Web Filtering
  • IP Filtering
  • Content Filtering (basic)
  • Website Filtering
  • Zone-Based Object Firewall with host address (IP or FQDN), port, and MAC address
Cloud Optimized IP Communications
  • Automated WAN Failover/Failback support
  • WAN Affinity and QoS allow prioritization of VoIP services
  • Advanced VPN connectivity options to HQ
  • SIP ALG and NAT to allow VoIP and UC communications to traverse firewall
  • MAC Address Filtering
  • 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN
  • Private Network support (wired and 4G WAN)
  • Cloud-based management2
What's In The Box
What's In The Box
  • Ruggedized router with integrated business-class 3G/4G modem; includes integrated mounting plate
  • Two meter locking power and GPIO cable (direct wire)
  • Quick Start Guide with warranty information

    NOTE: Due to the diverse needs of customers, the COR IBR1100/IBR1150 package does not include a power adapter or antennas. See the Accessories section below for several power and antenna options.
Support and Warranty
Support and Warranty
  • CradleCare Support available in the US and Canada with technical support, software upgrades, and advanced hardware exchange – 1-, 3-, and 5-year options.
  • Three-year limited hardware warranty available world-wide on IBR900/IBR950 series products when purchased from an approved Cradlepoint Partner or Distributor – extend warranty to five years.
Accessories
Dual-Modem Dock
  • Integrated 4G LTE modem:
    • MC400LP6 (North America)
    • MC400LPE-VZ (Verizon)
    • MC400LPE-AT (AT&T)
    • MC400LPE-SP (Sprint)
    • MC400LPE-GN (generic – for use on T-Mobile in the U.S. and Rogers, Bell, & TELUS in Canada)
    • MC400LP3-EU (Europe)
Power
  • Wall options
    • COR IBR1100/IBR1150 extended temperature (−30 °C to 70 °C) 12VDC 2A locking power adapter – requires separate line cord (Part # 170648-000)
      • Line cord for North America (Part # 170623-001)
      • Line cord for EU (Part # 170623-002)
      • Line cord for UK (Part # 170623-003)
    • COR 12VDC 2A locking power adapter with 0 °C to 40 °C temperature range – includes US, EU, and UK plugs (Part # 170584-002)
  • Vehicle options
    • Vehicle locking power adapter for COR (Part # 170635-000)
    • Two meter locking power and GPIO cable (direct wire) for replacement – included by default (Part # 170585-000)
  • Power adapters
    • Barrel to 4-pin power adapter (Part # 170665-000)

      NOTE: Cradlepoint primarily recommends the extended temperature adapter because it covers the COR IBR1100/IBR1150 full temperature range of −30 °C to 70 °C. Cost-sensitive customers that intend to use the IBR1100/IBR1150 in temperature-controlled office environments can order the 170584-002 adapter, but it limits the operating temperature range to 0 °C to 40 °C.

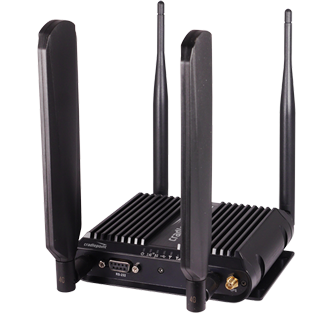

Antennas - 3G/4G Modem, WiFi, & GPS
  • 700 MHz – 2700 MHz Wide Band Directional Antenna (Yagi/Log- Periodic) Part #: 170588-000
  • 12” Mag-Mount Antenna with SMA Male Connector Part #: 170605-000
  • 4” Mini Mag-Mount Antenna with SMA Male Connector Part #: 170606-000
  • 2.4/5 GHz Dual-band Dual-concurrent WiFi Antenna Part #: 170628-000 (WiFi models only)
  • Universal 3G/4G/LTE Modem Antenna Part #: 170649-000
  • GPS Screw-Mount Antenna Part #: 170651-000
  • Vehicle Antennas
    • 3-in-1 GPS & Modem Screw-Mount Part #: 170653-000
    • 5-in-1 GPS, Modem & WiFi Screw-mount Part #: 170654-000

* Native support for authentication. Authorization and accounting support through hotspot/captive portal services.
1 WiFi-related functions are only supported on IBR1100 models
2 Enterprise Cloud Manager requires a subscription
3 Requires an Extended Enterprise License

Business-Grade Modem Specifications:


COR IBR1100 Dual-Modem Dock (optional)

COR IBR1100/IBR1150 LP6 models include an integrated LTE Advanced Category 6 4G LTE modem. The LP6 modems support SIM-Based Auto-Carrier selection so there is only one model for all of North America. Simply insert the SIM and wait for the router to automatically detect the SIM and establish a connection. The LTE bands certified for each carrier are listed below.

COR IBR1100LP6-NA, COR IBR1150LP6-NA

  • Technology: LTE Advanced, HSPA+
  • Downlink Rates: LTE 300 Mbps, HSPA+ 42.2 Mbps
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps
  • Frequency Bands:
    • LTE Bands 1-5, 7, 8, 12, 13, 17, 20, 25, 26, 29, 30, 41
      • Verizon: 2, 4, 5, 13 (XLTE support w/carrier aggregation)
      • AT&T: 2, 4, 5, 12/17, 29, 30
      • Sprint: 25, 26, 41 (LTE Plus Support)
      • T-Mobile: 2, 4, 12 (T-Mobile Wideband LTE Support)
      • Generic: all
  • Carrier Aggregation:
    • 1+ 8
    • 2+ 2/5/12 (17 w/MFBI)/13/29
    • 3+ 7/20
    • 4+ 4/5/12 (17 w/MFBI)/13/29
    • 5+ 2/4/30
    • 7+ 3/7/20
    • 8+ 1
    • 12 (17 w/MFBI) + 2/4/30
    • 13+ 2/4
    • 20+ 3/7
    • 30+ 5/12 (17 w/MFBI)
    • 41+ 41
  • Fallback: WCDMA/DC-HSPA+ (42/5.76 Mbps): Bands 1, 2, 3, 4, 5, 8
  • Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgfcm)
  • GPS: active GPS support
  • SMS: SMS support
  • Industry Standards & Certs: CE, FCC, GCF-CC, IC, PTCRB, AT&T, Sprint, Verizon

COR IBR1100/IBR1150 models include an integrated 4G LTE modem – specific model names include a specific modem (e.g., the COR IBR1100LPE-VZ includes a Verizon LTE modem). Please note that LPE models are flexible and support bands for multiple cellular providers; however, only the frequency bands in bold below are supported by the listed provider.

COR IBR1100LPE-VZ, COR IBR1150LPE-VZ – 4G LTE/HSPA+/EVDO for Verizon

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE (850/900/1800/1900 MHz)
    • CDMA EVDO Rev A/1xRTT (800/1900 MHz)
  • Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1, EVDO 24 dBm +0.5/−1 (typical conducted)
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf-cm)
  • GPS: active GPS support
  • Industry Standards & Certs: FCC, Verizon

COR IBR1100LPE-AT, COR IBR1150LPE-AT – 4G LTE/HSPA+/EVDO for AT&T

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE (850/900/1800/1900 MHz)
    • CDMA EVDO Rev A/1xRTT (800/1900 MHz)
  • Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1, EVDO 24 dBm +0.5/−1 (typical conducted)
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf-cm)
  • GPS: active GPS support
  • Industry Standards & Certs: PTCRB, FCC, IC, AT&T

COR IBR1100LPE-SP, COR IBR1150LPE-SP – 4G LTE/HSPA+/EVDO for Sprint

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE (850/900/1800/1900 MHz)
    • CDMA EVDO Rev A/1xRTT (800/1900 MHz)
  • Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1, EVDO 24 dBm +0.5/−1 (typical conducted)
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf-cm)
  • GPS: active GPS support
  • Industry Standards & Certs: FCC, Sprint

COR IBR1100LPE-GN, COR IBR1150LPE-GN – 4G LTE/HSPA+/EVDO for T-Mobile/US Cellular/Canada

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE Band 2 (1900 MHz), Band 4 (AWS), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE (850/900/1800/1900 MHz)
    • CDMA EVDO Rev A/1xRTT (800/1900 MHz)
  • Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1, EVDO 24 dBm +0.5/−1 (typical conducted)
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf-cm)
  • GPS: active GPS support
  • Industry Standards & Certs: PTCRB, FCC, IC


Below is a list of carrier-supplied modems compatible with the IBR1100/IBR1150.

AT&T

  • USB
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LP6
    • Cradlepoint MC400LPE-AT
    • Sierra Wireless AirCard 340U [Beam]

Band 14 Public Safety LTE

  • USB
    • Cradlepoint MC400L2

Bell Mobility (CA)

  • USB
    • Cradlepoint MC400LPE-GN
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LP6
    • Novatel Wireless U679

POTS (Analog)

  • USB
    • Portsmith PSA1U1M

Rogers (CA)

  • USB
    • Cradlepoint MC400LPE-GN
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LP6
    • Sierra Wireless 330U [LTE Rocket Stick]

Sprint

  • USB
    • Cradlepoint MC400LP6
    • Cradlepoint MC400LPE-SP
    • Cradlepoint MC400LE2-SP
    • Franklin Wireless U770 [Plug-in-Connect Tri-Mode USB]
    • Franklin Wireless U600
    • Franklin Wireless U772 [Franklin U772 Smart USB Modem]
    • NETGEAR 341U

T-Mobile (USA)

  • USB
    • Cradlepoint MC400LP6
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LPE-GN
    • ZTE MF683 [Rocket 3.0]

Telstra/BigPond (AU)

  • USB
    • Sierra Wireless AirCard 320U

TELUS (CA)

  • USB
    • Cradlepoint MC400LPE-GN
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LP6
    • Huawei E3276

Verizon

  • USB
    • Cradlepoint MC400LP6
    • Cradlepoint MC400LPE-VZ
    • Cradlepoint MC400LP4
    • Novatel Wireless U620L [MiFi 4G LTE Global USB Modem U620L]
    • Novatel Wireless Ovation MC551 [ 551L 4G LTE USB Modem]
    • Pantech UML295

Hardware Specifications:

Cradlepoint IBR1100 / IBR1150 Front Specificaitons

Cradlepoint IBR1100 / IBR1150 Back Specificaitons

Software:

Cradlepoint’s NetCloud

Routing Firmware, Management, & Virtual Cloud Networking for M2M/IoT & In-Vehicle

Cradlepoint’s NetCloud platform combines industry-leading router firmware, award-winning Enterprise Cloud Manager, and the new NetCloud Engine network-as-a-service. This integrated platform of flexible, extensible, and rapidly deployable applications enables an entirely new way to easily build, secure, control, and manage end-to-end private networks in the cloud using wired and wireless broadband Internet services.

NetCloud OS

Firewall, Advanced Routing-Optimized for LTE
Firmware is the heart of our industry leading LTE routers. Sustained commitment to new features and capabilities ensures your network is always up to date and secure.

NetCloud Manager

Quickly Deploy, Manage & Monitor Your Network
Cloud Management Service that enables zero-touch deployment, remote management, alerting, and analytics of in-vehicle routers and IoT gateways.

NetCloud Engine

Software-Defined. Security-Driven. Cloud-Delivered.
NetCloud Engine enables virtual cloud networking that leverages cloud, Software-Defined Networking (SDN), and Network Function Virtualization (NFV) technologies.

Security Applications

Enhance network security with best-in-class applications from Cradlepoint Technology Partners. Create, deploy, and manage network security applications at remote locations with the Cradlepoint NetCloud platform. Improve productivity, reduce costs, and enhance the security intelligence of your network.

Zscaler Internet SecurityZscaler Internet Security

Configured in minutes, best-inclass Zscaler Internet Security protects your organization from web-based threats.

CP Secure Threat ManagementCP Secure Threat Management

A comprehensive intrusion prevention and detection system (IPS/IDS) for full defense-in-depth.

COR Platform Extensibility
COR Platform Extensibility

Cradlepoint Extensibility enables customers and developers to build one-of-a-kind applications and vertical solutions by extending key elements of the Cradlepoint platform. By leveraging our hardware, firmware, and cloud services, developers can add differentiation and unique value to the solutions they offer.

COR Extensibility Dock
Extend select Cradlepoint COR Family routers with an additional modem, additional Ethernet ports, and more general purpose input/outputs (GPIOs).

Router SDK (Open Beta)
Build custom vertical applications securely running at the edge, protected on device, and deployed through the cloud. Manage, deploy, and monitor customer Edge applications from the cloud across the entire fleet.

Developer Community (Open Beta)
Developer Community to leverage knowledge, share, and collaborate with other developers—for a one stop shop.

ECM API
Cradlepoint’s API provides the building blocks developers need to craft applications that access the data from a software platform.

Compare:

IoT / M2M & In-Vehicle: COR Routers

Keep machines connected 24x7 with Cradlepoint COR, the industry's most reliable solution for M2M/IoT and Transportation networking.

  IBR900 / IBR950 IBR1100 / IBR1150 IBR600B / IBR650B IBR600C / IBR650C IBR600 / IBR650 IBR350
Router In-Vehicle Router In-Vehicle Router M2M/IoT Router IoT/M2M & In-Vehicle Router M2M/IoT Router M2M/IoT Router
Supports LTE-A Yes Yes With COR Extensibility Dock only With 2nd modem in COR Extensibility Dock only No No
Cloud Management Yes Yes Yes Yes Yes Yes
NetCloud Engine Yes Yes Yes Yes No Yes
Zone-Based Firewall Yes Yes Yes Yes Yes Yes
Zscaler Internet Security Support Yes Yes Yes Yes Yes No
CP Secure Threat Management Support Yes
(FW 6.3.2 and Later)		 No No Yes No No
SIM-Based Auto-Carrier Selection Yes Yes Yes (AT&T, T-Mobile & Verizon only) No, Carrier Switching via Software-Defined Radios No No
Ports (LAN/WAN) 2 / 2 (GigE), 4 with Ext Dock (2 GigE) 3 / 3 2 / 2, 4 with Ext Dock (1 GigE) 2 / 2, 4 with Ext Dock (1 GigE) 2 / 2 1 / 0
Enterprise-Grade Modems Certified Embedded
3G/4G LTE		 Certified Embedded
4G LTE		 Certified Embedded
4G LTE		 Certified Embedded
4G LTE		 Certified Embedded
3G/4G LTE		 Certified Embedded
3G/4G LTE
Wireless Broadband Technology LTE / HSPA+ / EVDO, LTE / HSPA+ LTE / HSPA+ / EVDO, LTE / HSPA+ LTE / HSPA+ 4G LTE / 3G EVDO / HSPA+ LTE-only, HSPA+, or LTE / HSPA+ / EVDO LTE-only, HSPA+, or LTE / HSPA+ / EVDO
WiFi Dual-band, dual-concurrent WiFi (802.11 a/b/g/n/ac)*
Wave 2		 Dual-band, dual-concurrent WiFi (802.11 a/b/g/n/ac)* 802.11 b/g/n* 2x2 MIMO 802.11 b/g/n 802.11 b/g/n* None
GPS Active GPS with TAIP, NMEA Active GPS with TAIP, NMEA None Passive GPS with TAIP, NMEA Passive, NMEA None
SIM Slots 2 2 2 2 1 1 or 2
Housing Ruggedized Ruggedized Semi-Ruggedized Semi-Ruggedized Semi-Ruggedized Industrial plastic
Operating Temperature -22°F to +158°F
(-30°C to 70°C)		 -22°F to +158°F
(-30°C to 70°C)		 -4°F to 140°F
(-20°C to 60°C)		 -4°F to 140°F
(-20°C to 60°C)		 -4°F to 140°F
(-20°C to 60°C)		 32°F to 104°F
(0 to 40°C)
Dock Option COR Extensibility Dock Dual-Modem Dock COR Extensibility Dock COR Extensibility Dock No No
Redundant Power Capabale With COR Extensibility Dock or 9-Wire GPIO Cable No With COR Extensibility Dock only With COR Extensibility Dock only No No
GPIOs 2 + 4 with 9-Wire GPIO Cable 2 + 3 with Serial to GPIO Cable 2 + 4 with 9-Wire GPIO Cable 2 + 4 with 9-Wire GPIO Cable 2 No
Ignition Sensing / Sleep Mode Yes Yes Yes Yes No No
Supports FirstNet (Band 14) With Extensibility Dock With Dual-Modem Dock With Extensibility Dock With Extensibility Dock No No

*Non-WiFi version available
**Extended temperature spec power supply required to support full range

CradleCare Support:

CradleCare SupportFrom initial device deployment to long-term operations, Cradlepoint Global Support offers world-class resources and expertise to keep your network secure, simple and efficient. Cradlepoint offers multiple tiers of support to provide you exactly what you need.

With Cradlepoint Global Support and CradleCare, you can:

  • Maximize revenue through always-on uptime and response times
  • Save time with our web-based Connect Portal and Knowledge Base
  • Collaborate with our multi-certified technical team
  • Maintain PCI Compliance with up-to-date router and modem firmware

The following chart provides an overview of Cradlepoint's support and maintenance offerings:

Included with every Cradlepoint purchase CradleCare Basic CradleCare

Web-based Cradlepoint Connect Portal:

  • 24x7x365 access to our Knowledge Base and Firmware download library
  • 12x5 email support (for Enterprise Cloud Manager and NetCloud Gateway only)
  • Knowledge Base access
  • Firmware upgrades
  • Standard warranty with extended warranty options

Included +

  • Covers all products and services
  • 12x5 phone, email and chat support for Cradlepoint routers, ECM and NetCloud Gateway
  • Knowledge Base access
  • Firmware upgrades
  • Standard warranty with extended warranty options

CradleCare Basic +

  • 24x7 qualified phone support and 12x5 email/chat support for Cradlepoint routers, ECM and NetCloud Gateway
  • Advanced Exchange: Next business day replacement
  • Service level targets
  • Assigned Enterprise Support Engineer (for deployments of 50 routers or more)
  • Enterprise engineering resources for network design and best practices implementation
  • Priority consideration of future feature requests and beta trials
  • Knowledge Base access
  • Firmware upgrades
  • Extended Warranty for routers for the term of CradleCare license

Extended Warranties

Extended Warranties can be purchased in subsequent years, and as a follow-on warranty at the conclusion of the standard warranty period. No gap in coverage is allowed: the new warranty must be in place before the existing warranty expires.

Standard One-Year Warranty (With Extended Warranty Option) Includes:

  • Access to Cradlepoint Connect portal and Knowledge Base
  • Hardware repair/replacement with 3-5 day shipping
  • Software bug fixes
  • An option to extend your warranty to 2, 3, or 5 years at the conclusion of the standard warranty period*

*Hardware warranties cannot be extended beyond 5 years from the date of purchase.

Documentation:

Download the Cradlepoint COR Series Datasheet (.PDF)

Download the Cradlepoint IBR1100/IBR1150 Datasheet (.PDF)

Download the Cradlepoint IBR1100/IBR1150 Spec Sheet (.PDF)

Pricing Note:
