Cradlepoint COR IBR950
Ruggedized 3G/4G LTE Router Designed for Advanced In-Vehicle & High-Performance M2M/IoT Connectivity

Features:

In-Vehchle, M2M & IoT Networking and More

• For business-critical applications: parallel networks, kiosks, video digital signs, & more
• Supports SIM-based Auto-Carrier Selection*
• High network availability with automatic failover & failback
• Ruggedized for vibration, shock, dust, splash & humidity
• Wave 2 dual-band, dual concurrent Gigabit WiFi for passenger & device connectivity**
• Ignition sensing & built-in transient & reverse polarity voltage protection
• Active GPS for easy integration into AVL systems (Automatic Vehicle Location)

NetCloud Platform

• Cloud-managed for ease of deployment, remote management, & reporting
• Supports NetCloud Engine for easy integration into cloud-based networks

Extensibility

• COR Extensibility dock for increased availability & bandwidth
• Supports FirstNet (Band 14) modem (MC400L2) for first responders
• Supports Router SDK for customized scripts running on the router
• Supports Router API to utilize router data in 3rd party applications & network management tools

*LP6 versions only
**IBR900 only

Benefits:

Increase Network Availability

• Multi-carrier 3G/4G LTE support with dual-SIM capability
• Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi
• Dual-modem capability for failover or load balancing
• Ruggedized to ensure always-on connectivity
• Monitor uptime with real-time alerts

Deploy & Scale Quickly

• Increase speed to deployment with “zero-touch” configuration
• Configure, manage, troubleshoot remotely with Enterprise Cloud Manager
• Create a virtual cloud network in minutes with NetCloud Engine

Secure & Protect

• Advanced security, VPN, and stateful firewall to protect sensitive data
• Designed for PCI compliant network architectures
• Cloud-managed security and content filtering (CIPA compliant)

Extend & Customize

• Extensibility Dock: add a second modem, FirstNet modem, or custom sensor or radio module
• Router SDK: Support unique applications with custom scripts running on the router
• ECM API: Utilize router data while maintaining single-pane-of-glass network management

Specifications:

Cradlepoint IBR900 / IBR950 Series Specifications
Technical Specifications
WAN	Dual-modem capable with optional IBR900/IBR950 Dual-Modem Dock Integrated LP6 Category 6 LTE Advanced LTE modem (with DC-HSPA+ failover) or LP5 Category 6 LTE Advanced LTE modem (with DC-HSPA+ failover) Two LAN/WAN switchable 10/100/1000 Gigabit Ethernet ports – one default WAN (cable/DSL/T1/satellite/Metro Ethernet) WiFi as WAN, Metro WiFi; 2x2 MIMO “N” 2.4 GHz or 5 GHz; 802.11 a/b/g/n/ac wave 2 (IBR900 only)
LAN	Dual-band, dual-concurrent WiFi; 802.11 a/b/g/n/ac wave 2 (IBR900 only) Two LAN/WAN switchable 10/100/1000 Gigabit Ethernet ports – one default LAN Serial console support for Out-of-Band Management of a connected device
Ports	Power 2-wire GPIO Add more GPIO ports with optional 9-wire GPIO cable or COR Extensibility Dock (see Accessories section below) USB 2.0 Two Ethernet LAN/WAN Two cellular antenna connectors (SMA) One active GPS antenna connector (SMA) Two WiFi antenna connectors (R-SMA) 15-pin dock port for COR Extensibility Dock or 9-wire GPIO cable
Temperature	−30 °C to 70 °C (−22 °F to 158 °F) ambient air operating −40 °C to 85 °C (−40 °F to 185 °F) storage
Humidity (non-condensing)	5% to 95% operating non-condensing 5% to 90% storage non-condensing
Power	DC input steady state voltage range: 9–33 VDC (requires inline fuse for vehicle installations) For 9–24 VDC installations, use a 3 A fuse For > 24 VDC installations, use a 2.5 A fuse Reverse polarity and transient voltage protection per ISO 7637-2 Ignition sensing (automatic ON and time-delay OFF) Power consumption: Idle: 4 W WiFi Tx/Rx: 9 W LTE Tx/Rx: 6.25 W 12 VDC / 2 A adapter recommended
Size	4.6 x 4.5 x 1.2 in (118 x 113.5 x 29.3 mm)
Weight	14 oz (400 g)
Certifiication	FCC, CE, IC AS, NZS, SGP (IMDA) WiFi Alliance (IBR900 only) – 802.11a/b/g/n/ac wave 2 certified Safety: UL/CUL, CB Scheme, EN60950-1 Shock/Vibration/Humidity: compliant with MIL STD 810G and SAEJ1455 Ingress Protection: compliant with IP54 (includes protection from dust and splashing water) Materials: WEEE, RoHS, RoHS-2, California Prop 65 Telecom: PTCRB/CTIA, GCF-CC Regulatory Models: S5A643A, S5A644A, S5A648A, S5A701A, S5A706A
WiFi Power	2.4 GHz: 18 dBm conducted 5 GHz VHT20: 17.5 dBm conducted 5 GHz VHT40: 17 dBm conducted 5 GHz VHT80: 16.5 dBm conducted
GPS	GPS Protocols: TAIP and NMEA 0183 V3.0 Satellite channels: Maximum 40 channels, simultaneous tracking Concurrent standalone GPS, GLONASS, BeiDou and Galileo 1 Hz refresh rate Accuracy: < 2 m: 50% < 5 m: 90% Horizontal: < 2 m (50%); < 5 m (90%) Altitude: < 4 m (50%); < 8 m (90%) Velocity: < 0.2 m/s Acquisition (measured with signal strength = -135 dBm): Hot start: 1 second Warm start: 29 seconds Cold start: 32 seconds Sensitivity Tracking: −160 dBm (tracking sensitivity is the lowest GNSS signal level for which the device can still detect an in-view satellite 50% of the time when in sequential tracking mode) Acquisition (standalone): −145 dBm (acquisition sensitivity is the lowest GNSS signal level for which the device can still detect an in-view satellite 50% of the time) Operational limits: altitude < 6000 m or velocity < 100 m/s (either limit may be exceeded, but not both)
Specific Features
WAN	Dual-modem capable with optional COR Extensibility Dock LP6: LTE Advanced LTE/HSPA+ (SIM-based, Auto-carrier Selection for all North American, European, and Asia Pacific carriers; includes support for 700 MHz Band 28 in Asia Pacific LP5: Cat 6 LTE Advanced for operators in Asia Pacific and Saudi Arabia (SIM-based Auto-Carrier selection) LPE: 4G LTE/HSPA+/EVDO (multi-carrier) WiFi as WAN1, with WPA2 Enterprise Authentication for WiFi as WAN³ Failover/Failback Load Balancing Advanced Modem Failure Check WAN Port Speed Control WAN/LAN Affinity IP Passthrough Standby
LAN	VLAN 802.1Q DHCP Server, Client, Relay DNS and DNS Proxy DynDNS UPnP DMZ Multicast/Multicast Proxy QoS (DSCP and Priority Queuing) MAC Address Filtering
WiFi (only on IBR900)	Dual-band, dual-concurrent 802.11 a/b/g/n/ac wave 2 MU-MIMO and 256 QAM support Up to 128 connected devices (64 per radio – 2.4 GHz and 5 GHz) Multiple SSIDs: 2 per radio (4 total) WPA2 Enterprise (WiFi) Hotspot/Captive Portal SSID-based Priority Client Mode for faster data offload
Management	radlepoint Enterprise Cloud Manager2 Web UI, API, CLI Active GPS support on all models Data Usage Alerts (router and per client) Advanced Troubleshooting (support) Device Alerts SNMP SMS control Serial Redirector Auto APN recovery Syslog
VPN and Routing	IPsec Tunnel – up to five concurrent sessions L2TP3 GRE Tunnel OSPF/BGP/RIP3 Route Filters (Access Control Lists, Prefix Filters, Route Maps, Communities for BGP) Per-Interface Routing Routing Rules Policy-based Routing NAT-less Routing Virtual Server/Port Forwarding NEMO/DMNR3 IPv6 VRRP3 STP3 NHRP3 VTI Tunnel support3 OpenVPN support3 CP Secure VPN compatible Serial PAD Mode
Security	RADIUS and TACACS+ support* 802.1x authentication for Ethernet Zscaler integration3 Certificate support ALGs MAC Address Filtering Advanced Security Mode (local user management only) Per-Client Web Filtering IP Filtering Content Filtering (basic) Website Filtering Zone-Based Object Firewall with host address (IP or FQDN), port, and MAC address
Cloud Optimized IP Communications	Automated WAN Failover/Failback support WAN Affinity and QoS allow prioritization of VoIP services Advanced VPN connectivity options to HQ SIP ALG and NAT to allow VoIP and UC communications to traverse firewall MAC Address Filtering 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN Private Network support (wired and 4G WAN) Cloud-based management2
What's In The Box
What's In The Box	Ruggedized router with integrated business-class 3G/4G modem; includes integrated mounting plate Quick Start Guide with warranty information External 3G/4G mobile broadband modem antennas (2) (SMA), finger tighten only External WiFi antennas (2) (reverse SMA*), < 5 dBi gain, finger tighten only 12 V / 2 A power supply w/ locking connector; DC GPIO/power cable available Extra SIM door screws (2) NPS SKU** comes with no antennas or power supply, and includes a 2-meter locking power and GPIO cable (direct wire). *- IBR900 only **- -NPS SKU available in North America only
Support and Warranty
Support and Warranty	CradleCare Support available in the US and Canada with technical support, software upgrades, and advanced hardware exchange – 1-, 3-, and 5-year options. Three-year limited hardware warranty available world-wide on IBR900/IBR950 series products when purchased from an approved Cradlepoint Partner or Distributor – extend warranty to five years.
Accessories
Extensibility	COR Extensibility Dock (Part # 170700-000), FirstNet/Band 14 ready
Power	Vehicle options Vehicle locking power adapter for COR (Part # 170635-000) Two meter locking power and GPIO cable (direct wire) (Part # 170585-000) – included by default on IBR900LP6-NA-NPS only Power Supplies/Adapters North America COR IBR900/IBR950 power supply (Part # 170716-000) International power supply -- includes adapters for US, EU, UK, AU (Part # 170717-000) Barrel to 4-pin power adapter (Part # 170665-000)
Antennas - 3G/4G Modem, WiFi, & GPS	700 MHz – 2700 MHz Wide Band Directional Antenna (Yagi/Log- Periodic) Part #: 170588-000 12” Mag-Mount Antenna with SMA Male Connector Part #: 170605-000 4” Mini Mag-Mount Antenna with SMA Male Connector Part #: 170606-000 2.4/5 GHz Dual-band, Dual-concurrent WiFi Antenna Part #: 170628-000 (WiFi models only) Universal 3G/4G/LTE Modem Antenna Part #: 170649-000 GPS Screw-Mount Antenna Part #: 170651-000 Vehicle Antennas 3-in-1 GPS & Modem Screw-Mount Part #: 170653-000 5-in-1 GPS, Modem & WiFi Screw-mount Part #: 170654-000

* Native support for authentication. Authorization and accounting support through hotspot/captive portal services.
¹ WiFi-related functions are only supported on IBR900 models
² Enterprise Cloud Manager requires a subscription
³ Requires an Extended Enterprise License or Enterprise Cloud Manager PRIME

Business-Grade Modem Specifications:

Below is a list of carrier-supplied modems compatible with the IBR900/IBR950.

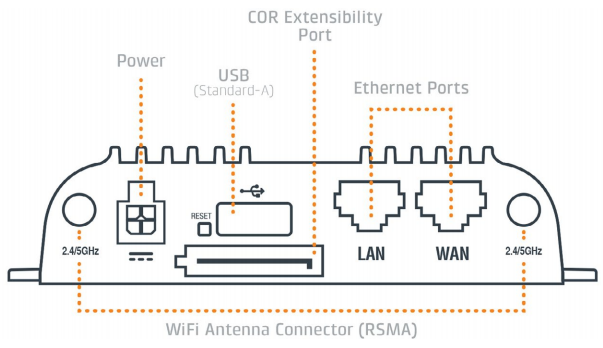

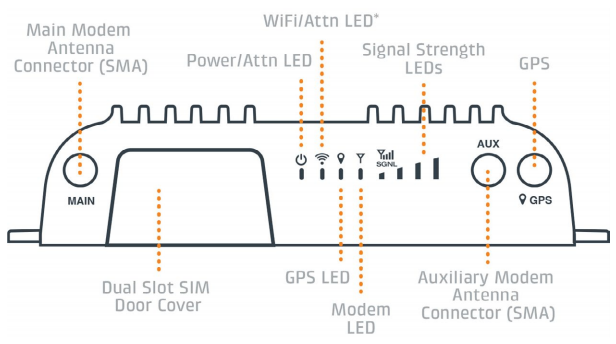

Hardware Specifications:

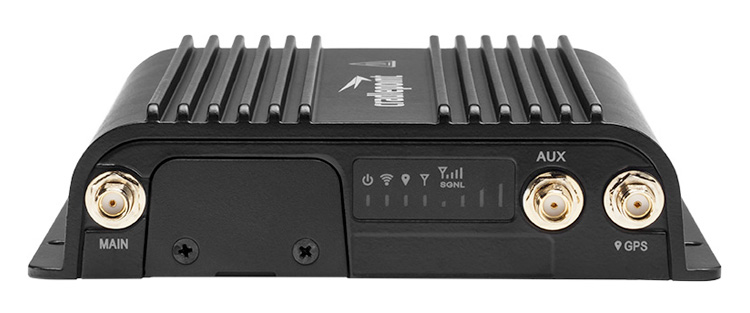

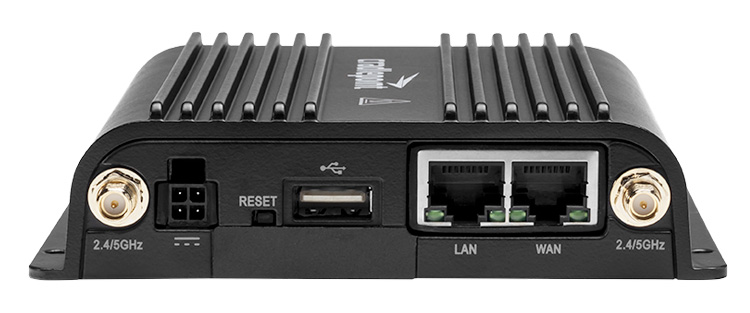

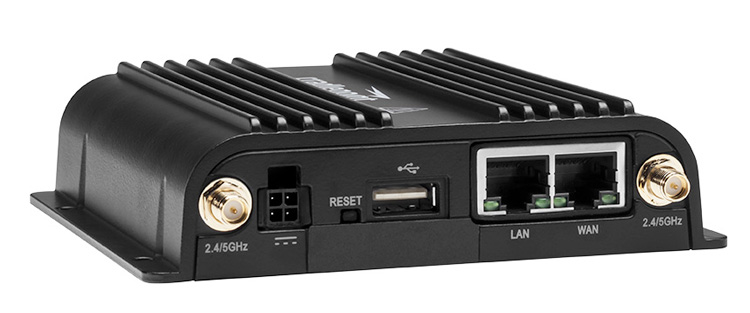

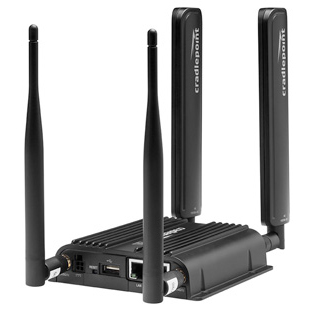

Views:

Software:

Routing Firmware, Management, & Virtual Cloud Networking for M2M/IoT & In-Vehicle

Cradlepoint’s NetCloud platform combines industry-leading router firmware, award-winning Enterprise Cloud Manager, and the new NetCloud Engine network-as-a-service. This integrated platform of flexible, extensible, and rapidly deployable applications enables an entirely new way to easily build, secure, control, and manage end-to-end private networks in the cloud using wired and wireless broadband Internet services.

NetCloud OS

Firewall, Advanced Routing-Optimized for LTE
Firmware is the heart of our industry leading LTE routers. Sustained commitment to new features and capabilities ensures your network is always up to date and secure.

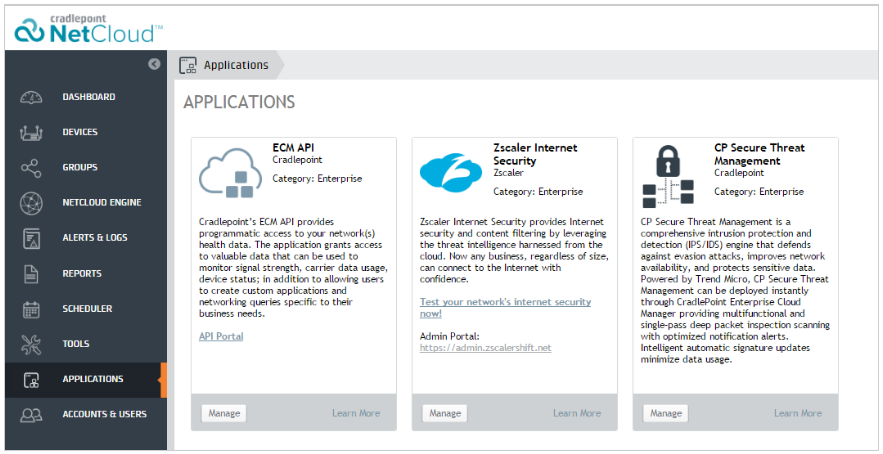

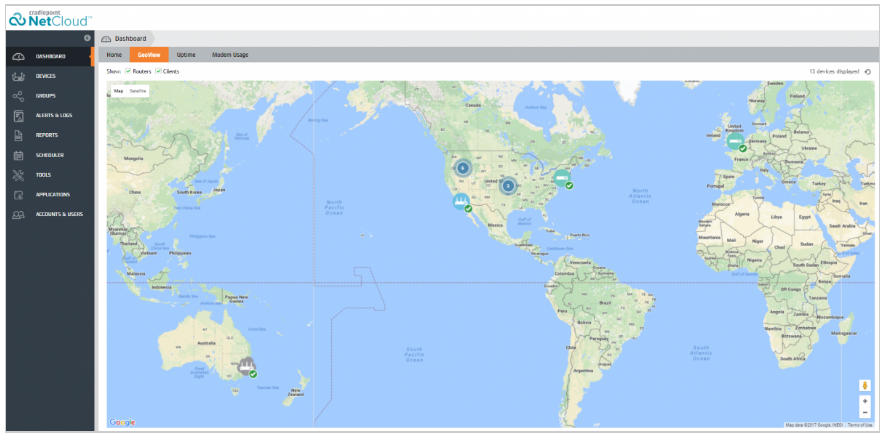

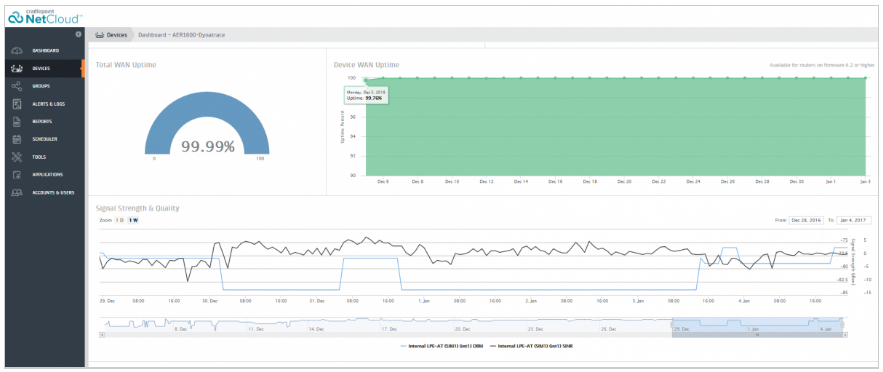

NetCloud Manager

Quickly Deploy, Manage & Monitor Your Network
Cloud Management Service that enables zero-touch deployment, remote management, alerting, and analytics of in-vehicle routers and IoT gateways.

NetCloud Engine

Software-Defined. Security-Driven. Cloud-Delivered.
NetCloud Engine enables virtual cloud networking that leverages cloud, Software-Defined Networking (SDN), and Network Function Virtualization (NFV) technologies.

Security Applications

Enhance network security with best-in-class applications from Cradlepoint Technology Partners. Create, deploy, and manage network security applications at remote locations with the Cradlepoint NetCloud platform. Improve productivity, reduce costs, and enhance the security intelligence of your network.

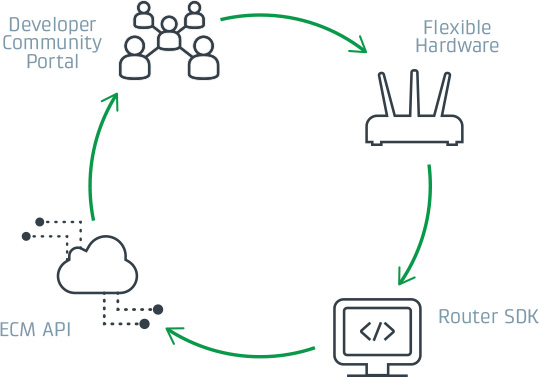

COR Platform Extensibility

Cradlepoint Extensibility enables customers and developers to build one-of-a-kind applications and vertical solutions by extending key elements of the Cradlepoint platform. By leveraging our hardware, firmware, and cloud services, developers can add differentiation and unique value to the solutions they offer.

COR Extensibility Dock
Extend select Cradlepoint COR Family routers with an additional modem, additional Ethernet ports, and more general purpose input/outputs (GPIOs).

Router SDK (Open Beta)
Build custom vertical applications securely running at the edge, protected on device, and deployed through the cloud. Manage, deploy, and monitor customer Edge applications from the cloud across the entire fleet.

Developer Community (Open Beta)
Developer Community to leverage knowledge, share, and collaborate with other developers—for a one stop shop.

ECM API
Cradlepoint’s API provides the building blocks developers need to craft applications that access the data from a software platform.

Compare:

IoT / M2M & In-Vehicle: COR Routers

Keep machines connected 24x7 with Cradlepoint COR, the industry's most reliable solution for M2M/IoT and Transportation networking.

	IBR900 / IBR950	IBR1100 / IBR1150	IBR600B / IBR650B	IBR600C / IBR650C	IBR600 / IBR650	IBR350
Router	In-Vehicle Router	In-Vehicle Router	M2M/IoT Router	IoT/M2M & In-Vehicle Router	M2M/IoT Router	M2M/IoT Router
Supports LTE-A	Yes	Yes	With COR Extensibility Dock only	With 2nd modem in COR Extensibility Dock only	No	No
Cloud Management	Yes	Yes	Yes	Yes	Yes	Yes
NetCloud Engine	Yes	Yes	Yes	Yes	No	Yes
Zone-Based Firewall	Yes	Yes	Yes	Yes	Yes	Yes
Zscaler Internet Security Support	Yes	Yes	Yes	Yes	Yes	No
CP Secure Threat Management Support	Yes (FW 6.3.2 and Later)	No	No	Yes	No	No
SIM-Based Auto-Carrier Selection	Yes	Yes	Yes (AT&T, T-Mobile & Verizon only)	No, Carrier Switching via Software-Defined Radios	No	No
Ports (LAN/WAN)	2 / 2 (GigE), 4 with Ext Dock (2 GigE)	3 / 3	2 / 2, 4 with Ext Dock (1 GigE)	2 / 2, 4 with Ext Dock (1 GigE)	2 / 2	1 / 0
Enterprise-Grade Modems	Certified Embedded 3G/4G LTE	Certified Embedded 4G LTE	Certified Embedded 4G LTE	Certified Embedded 4G LTE	Certified Embedded 3G/4G LTE	Certified Embedded 3G/4G LTE
Wireless Broadband Technology	LTE / HSPA+ / EVDO, LTE / HSPA+	LTE / HSPA+ / EVDO, LTE / HSPA+	LTE / HSPA+	4G LTE / 3G EVDO / HSPA+	LTE-only, HSPA+, or LTE / HSPA+ / EVDO	LTE-only, HSPA+, or LTE / HSPA+ / EVDO
WiFi	Dual-band, dual-concurrent WiFi (802.11 a/b/g/n/ac)* Wave 2	Dual-band, dual-concurrent WiFi (802.11 a/b/g/n/ac)*	802.11 b/g/n*	2x2 MIMO 802.11 b/g/n	802.11 b/g/n*	None
GPS	Active GPS with TAIP, NMEA	Active GPS with TAIP, NMEA	None	Passive GPS with TAIP, NMEA	Passive, NMEA	None
SIM Slots	2	2	2	2	1	1 or 2
Housing	Ruggedized	Ruggedized	Semi-Ruggedized	Semi-Ruggedized	Semi-Ruggedized	Industrial plastic
Operating Temperature	-22°F to +158°F (-30°C to 70°C)	-22°F to +158°F (-30°C to 70°C)	-4°F to 140°F (-20°C to 60°C)	-4°F to 140°F (-20°C to 60°C)	-4°F to 140°F (-20°C to 60°C)	32°F to 104°F (0 to 40°C)
Dock Option	COR Extensibility Dock	Dual-Modem Dock	COR Extensibility Dock	COR Extensibility Dock	No	No
Redundant Power Capabale	With COR Extensibility Dock or 9-Wire GPIO Cable	No	With COR Extensibility Dock only	With COR Extensibility Dock only	No	No
GPIOs	2 + 4 with 9-Wire GPIO Cable	2 + 3 with Serial to GPIO Cable	2 + 4 with 9-Wire GPIO Cable	2 + 4 with 9-Wire GPIO Cable	2	No
Ignition Sensing / Sleep Mode	Yes	Yes	Yes	Yes	No	No
Supports FirstNet (Band 14)	With Extensibility Dock	With Dual-Modem Dock	With Extensibility Dock	With Extensibility Dock	No	No

*Non-WiFi version available
**Extended temperature spec power supply required to support full range

CradleCare Support:

From initial device deployment to long-term operations, Cradlepoint Global Support offers world-class resources and expertise to keep your network secure, simple and efficient. Cradlepoint offers multiple tiers of support to provide you exactly what you need.

With Cradlepoint Global Support and CradleCare, you can:

• Maximize revenue through always-on uptime and response times
• Save time with our web-based Connect Portal and Knowledge Base
• Collaborate with our multi-certified technical team
• Maintain PCI Compliance with up-to-date router and modem firmware

The following chart provides an overview of Cradlepoint's support and maintenance offerings:

Included with every Cradlepoint purchase	CradleCare Basic	CradleCare
Web-based Cradlepoint Connect Portal: 24x7x365 access to our Knowledge Base and Firmware download library 12x5 email support (for Enterprise Cloud Manager and NetCloud Gateway only) Knowledge Base access Firmware upgrades Standard warranty with extended warranty options	Included + Covers all products and services 12x5 phone, email and chat support for Cradlepoint routers, ECM and NetCloud Gateway Knowledge Base access Firmware upgrades Standard warranty with extended warranty options	CradleCare Basic + 24x7 qualified phone support and 12x5 email/chat support for Cradlepoint routers, ECM and NetCloud Gateway Advanced Exchange: Next business day replacement Service level targets Assigned Enterprise Support Engineer (for deployments of 50 routers or more) Enterprise engineering resources for network design and best practices implementation Priority consideration of future feature requests and beta trials Knowledge Base access Firmware upgrades Extended Warranty for routers for the term of CradleCare license

Extended Warranties

Extended Warranties can be purchased in subsequent years, and as a follow-on warranty at the conclusion of the standard warranty period. No gap in coverage is allowed: the new warranty must be in place before the existing warranty expires.

Standard One-Year Warranty (With Extended Warranty Option) Includes:

• Access to Cradlepoint Connect portal and Knowledge Base
• Hardware repair/replacement with 3-5 day shipping
• Software bug fixes
• An option to extend your warranty to 2, 3, or 5 years at the conclusion of the standard warranty period*

*Hardware warranties cannot be extended beyond 5 years from the date of purchase.

Documentation:

Download the Cradlepoint COR Series Datasheet (.PDF)

Download the Cradlepoint IBR900/IBR950 Datasheet (.PDF)

Download the Cradlepoint IBR900/IBR950 Spec Sheet (.PDF)
