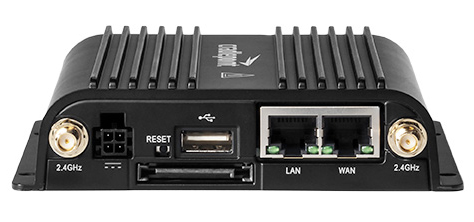

Cradlepoint COR IBR600C
Semi-Ruggedized 3G/4G LTE Router with WiFi for M2M & IoT and In-Vehicle Connectivity

Features:

The heart of your M2M network

• For in-vehicle applications when active GPS is not required. Passive GPS is supported.
• Embedded 100/50 Mbps 3G/4G LTE modem with Dual-SIM slots; supports Verizon & Sprint EVDO fallback
• Supports user-initiated carrier switching with software-defined radios
• High network availability with automatic failover & failback between wired & wireless WAN connections
• Wireless 2x2 MIMO “N” WiFi (802.11 b/g/n)*

NetCloud Platform

• Cloud-managed for ease of deployment, remote management & reporting
• Supports NetCloud Engine for easy integration into cloud-based networks

Extensibility

• COR Extensibility dock for increased availability & bandwidth
• Supports FirstNet (Band 14) modem (MC400L2) for first responders
• Supports Router SDK for customized scripts running on the router
• Supports Router API to utilize router data in third-party applications & network management tools

*WiFi is only supported on IBR600C models

Benefits:

Increase Network Availability

• Multi-carrier software-defined radios support 4G LTE and 3G EVDO and HSPA+ fallback
• Supports Ethernet WAN (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi
• Dual-modem capability for failover or load balancing

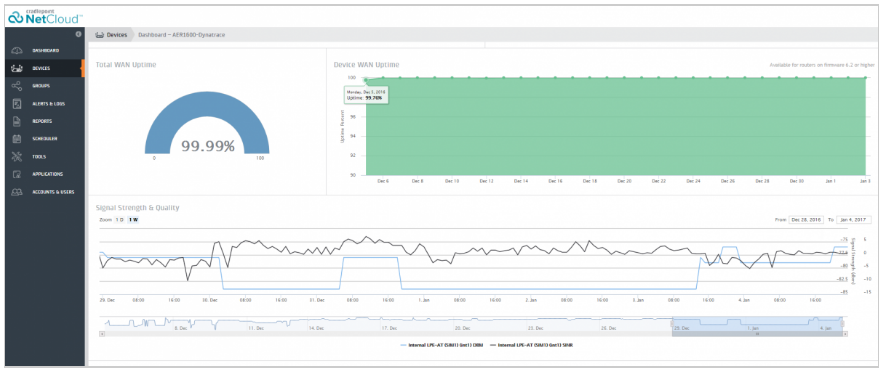

• Create real-time alerts to monitor network availability

Deploy & Scale Quickly, Manage Remotely

• Configure, monitor, and manage remotely: individually or in groups
• Dashboards for at-a-glance network status

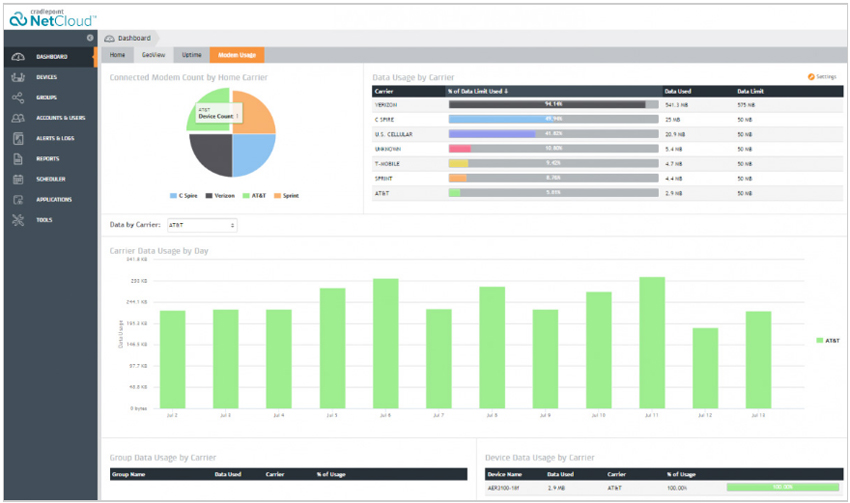

• Robust analytics to manage data and usage

Secure & Protect

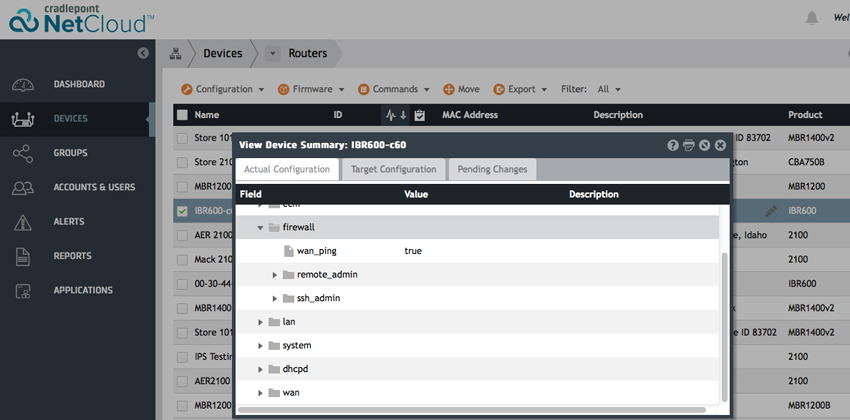

• Advanced security, VPN, and stateful firewall to protect sensitive data
• Designed for PCI compliant network architectures
• Cloud-managed security and content filtering (CIPA compliant)
• Build, secure, control, and manage private virtual cloud networks with NetCloud

Extend & Customize

• Extensibility Dock: add a second modem, FirstNet modem, or custom sensor or radio module
• Router SDK: Support unique applications with custom scripts running on the router
• ECM API: Utilize router data while maintaining single-pane-of-glass network management
• Developer Community Forum

Specifications:

Cradlepoint IBR600C / IBR650C Series Specifications
Technical Specifications
WAN	Dual-modem capable with optional COR Extensibility Dock Integrated LPE modem Two LAN/WAN switchable Ethernet ports (one 10/100/1000 and one 10/100) - one default WAN (cable/DSL/T1/satellite/Metro Ethernet) WiFi as WAN, Metro WiFi; 2×2 MIMO "N" 2.4 GHz; 802.11 b/g/n (IBR600C-LPE only)
LAN	2×2 MIMO "N" 2.4 GHz WiFi; 802.11 b/g/n (IBR600C-LPE only) Two LAN/WAN switchable Ethernet ports (one 10/100/1000 and one 10/100) - one default LAN
Ports	Power 2-wire GPIO Add more GPIO ports with optional 9-wire GPIO cable or COR Extensibility Dock (see Accessories section below) USB 2.0 Two Ethernet LAN or WAN Two cellular antenna connectors (SMA) Two WiFi antenna connectors* (reverse SMA) 15-pin dock port for COR Extensibility Dock or 9-wire GPIO cable
Temperature	-20 °C to 60 °C (-4 °F to 140 °F) operating
Humidity (non-condensing)	5% to 95% operating 5% to 95% storage
Power	DC input steady state voltage range: 9-33 VDC (requires inline fuse for vehicle installations) For 9-24 VDC installations, use a 3 A fuse For > 24 VDC installations, use a 2.5 A fuse Reverse polarity and transient voltage protection per ISO 7637-2 Ignition sensing (automatic ON and time-delay OFF) Power consumption: Idle: 4 W WiFi Tx/Rx: 9 W LTE Tx/Rx: 6.25 W 12 VDC / 2 A adapter recommended
WiFi Power	2.4 GHz: 18 dBm conducted
Size	4.6 × 4.5 × 1.2 in (118 × 113.5 × 29.3 mm)
Weight	14 oz. (400 g)
Certifiication	FCC, IC WiFi Alliance* - 802.11 b/g/n certified Safety: UL/CUL, CB Scheme, EN60950-1 Shock/Vibration/Humidity: compliant with MIL STD 810G and SAEJ1455 Materials: WEEE, RoHS, RoHS-2, California Prop 65 Telecom: PTCRB/CTIA
Specific Features
WAN	Dual-modem capable with optional COR Extensibility Dock LPE WiFi as WAN*, with WPA2 Enterprise Authentication for WiFi as WAN Failover/Failback Load Balancing Advanced Modem Failure Check WAN Port Speed Control WAN/LAN Affinity IP Passthrough Standby
LAN	VLAN 802.1Q DHCP Server, Client, Relay DNS and DNS Proxy DynDNS DMZ Multicast/Multicast Proxy QoS (DSCP and Priority Queuing) MAC Address Filtering
WiFi (IBR600C Only)	802.11 b/g/n Up to 64 connected devices Multiple SSIDs WPA2 Enterprise WiFi Hotspot/Captive Portal SSID-based Priority Client Mode for faster data offload
Management	Cradlepoint Enterprise Cloud Manager1 Web UI, API, CLI Data Usage Alerts (router and per client) Advanced Troubleshooting (support) Device Alerts SNMP SMS control Serial Redirector Auto APN Recovery Syslog
VPN and Routing	IPsec Tunnel – up to five concurrent sessions L2TP2 GRE Tunnel OSPF/BGP/RIP2 Route Filters (Access Control Lists, Prefix Filters, Route Maps, Communities for BGP) Per-Interface Routing Routing Rules Policy-based Routing NAT-less Routing Virtual Server/Port Forwarding NEMO/DMNR2 IPv6 VRRP2 STP2 NHRP2 VTI Tunnel support OpenVPN support CP Secure VPN compatible Serial PAD Mode
Security	RADIUS and TACACS+ support3 802.1x authentication for Ethernet Zscaler integration2 Certificate support ALGs MAC Address Filtering Advanced Security Mode (local user management only) Per-Client Web Filtering IP Filtering Content Filtering (basic) Website Filtering Zone-Based Object Firewall with host address (IP or FQDN), port, and MAC address
What's In The Box
What's In The Box	Ruggedized router with integrated business-class 3G/4G modem; includes integrated mounting plate Quick Start Guide with warranty information External 3G/4G mobile broadband modem antennas (2) (SMA) w/ support for GPS on auxiliary connection (some models); finger tighten only External WiFi antennas (2) (reverse SMA*), < 5 dBi gain, finger tighten only 12 V / 2 A power supply w/ locking connector; DC GPIO/power cable available Extra SIM door screws (2)
Support and Warranty
Support and Warranty	CradleCare Support available in the US and Canada with technical support, software upgrades, and advanced hardware exchange – 1-, 3-, and 5-year options. Three-year limited hardware warranty available world-wide on IBR600C/IBR650C series products when purchased from an approved Cradlepoint Partner or Distributor – extend warranty to 5 years.
Accessories
Power	Vehicle options Vehicle locking power adapter for COR (Part # 170635-000) Power Supplies/Adapters North America COR IBR600C-LPE/IBR650C-LPE power supply (Part # 170716-000) Barrel to 4-pin power adapter (Part # 170665-000)
Antennas – 3G/4G Modem, WiFi	700 MHz – 2700 MHz Wide Band Directional Antenna (Yagi/Log- Periodic) Part #: 170588-000 12” Mag-Mount Antenna with SMA Male Connector Part #: 170605-000 4” Mini Mag-Mount Antenna with SMA Male Connector Part #: 170606-000 Universal 3G/4G/LTE Modem Antenna Part #: 170649-000

* WiFi is only supported on IBR600B models
¹ Enterprise Cloud Manager requires a subscription.
² Cradlepoint Secure VPN-NAT configuration only
³ Native support for authentication. Authorization and accounting support through hotspot/captive portal services.

Business-Grade Modem Specifications:

COR IBR600C-LPE/IBR650C-LPE models include an integrated 4G LTE/HSPA+/EVDO modem – specific model names include a specific modem (e.g., the COR IBR650C-LPE-VZ includes a Verizon LTE modem).

COR IBR600C-LPE, COR IBR650C-LPE

• Technology: LTE, HSPA+, EVDO Rev A
• Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
• Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
• Frequency Bands:
  • LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
  • HSPA+/UMTS: (850/900/1900/2100 MHz, AWS)
  • GSM/GPRS/EDGE: (850/900/1800/1900 MHz)
  • CDMA EVDO: Rev A/1xRTT (800/1900 MHz)
• Power: LTE 23 dBm ± 1; HSPA+ 23 dBm ± 1; EVDO 24 dBm ± 1 (typical conducted)
• Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm2)
• GPS: passive, muxed on aux port
• Industry Standards & Certs: FCC, WiFi Alliance (IBR600C-LPE only), AT&T, Sprint, Verizon, Verizon NEMO/DMNR for Primary Wireless Access
• SIM: two 2FF slots

Below is a list of carrier-supplied modems compatible with the IBR600C.

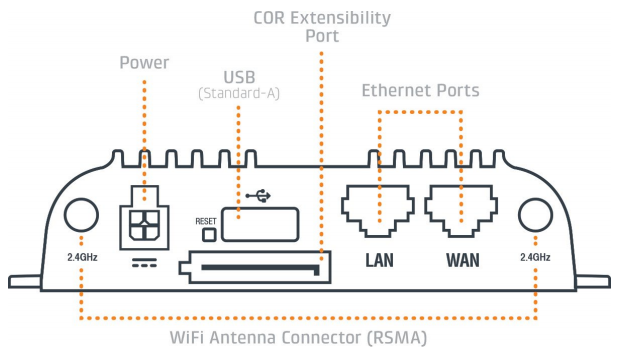

Hardware Specifications:

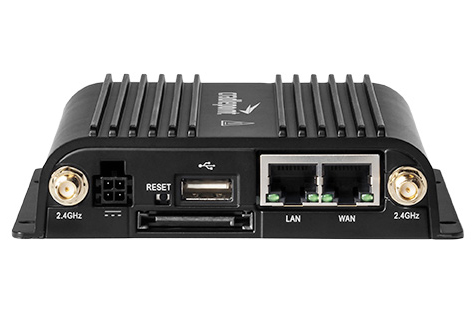

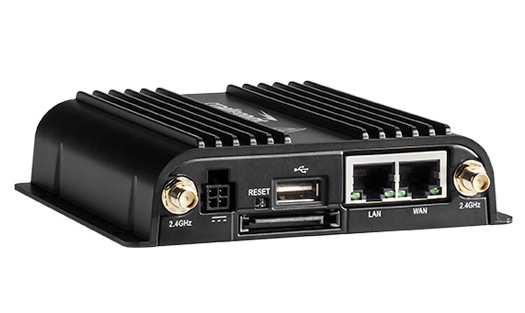

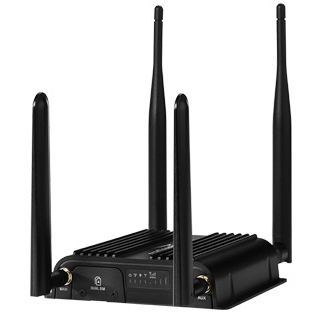

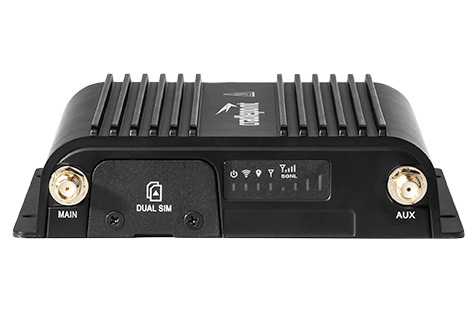

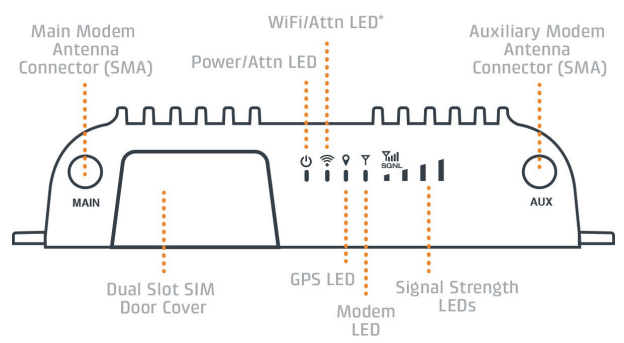

Views:

Software:

Routing Firmware, Management, & Virtual Cloud Networking for M2M/IoT & In-Vehicle

Cradlepoint’s NetCloud platform combines industry-leading router firmware, award-winning Enterprise Cloud Manager, and the new NetCloud Engine network-as-a-service. This integrated platform of flexible, extensible, and rapidly deployable applications enables an entirely new way to easily build, secure, control, and manage end-to-end private networks in the cloud using wired and wireless broadband Internet services.

NetCloud OS

Firewall, Advanced Routing-Optimized for LTE
Firmware is the heart of our industry leading LTE routers. Sustained commitment to new features and capabilities ensures your network is always up to date and secure.

NetCloud Manager

Quickly Deploy, Manage & Monitor Your Network
Cloud Management Service that enables zero-touch deployment, remote management, alerting, and analytics of in-vehicle routers and IoT gateways.

NetCloud Engine

Software-Defined. Security-Driven. Cloud-Delivered.
NetCloud Engine enables virtual cloud networking that leverages cloud, Software-Defined Networking (SDN), and Network Function Virtualization (NFV) technologies.

Security Applications

Enhance network security with best-in-class applications from Cradlepoint Technology Partners. Create, deploy, and manage network security applications at remote locations with the Cradlepoint NetCloud platform. Improve productivity, reduce costs, and enhance the security intelligence of your network.

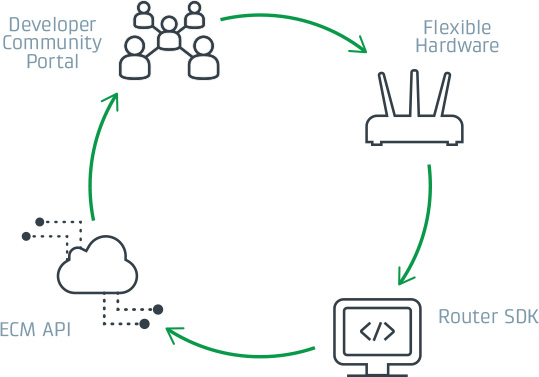

COR Platform Extensibility

Cradlepoint Extensibility enables customers and developers to build one-of-a-kind applications and vertical solutions by extending key elements of the Cradlepoint platform. By leveraging our hardware, firmware, and cloud services, developers can add differentiation and unique value to the solutions they offer.

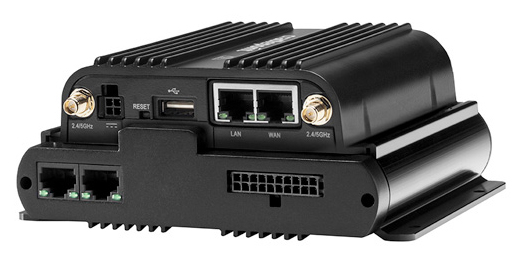

COR Extensibility Dock
Extend select Cradlepoint COR Family routers with an additional modem, additional Ethernet ports, and more general purpose input/outputs (GPIOs).

Router SDK (Open Beta)
Build custom vertical applications securely running at the edge, protected on device, and deployed through the cloud. Manage, deploy, and monitor customer Edge applications from the cloud across the entire fleet.

Developer Community (Open Beta)
Developer Community to leverage knowledge, share, and collaborate with other developers—for a one stop shop.

ECM API
Cradlepoint’s API provides the building blocks developers need to craft applications that access the data from a software platform.

Compare:

IoT / M2M & In-Vehicle: COR Routers

Keep machines connected 24x7 with Cradlepoint COR, the industry's most reliable solution for M2M/IoT and Transportation networking.

	IBR900 / IBR950	IBR1100 / IBR1150	IBR600B / IBR650B	IBR600C / IBR650C	IBR600 / IBR650	IBR350
Router	In-Vehicle Router	In-Vehicle Router	M2M/IoT Router	IoT/M2M & In-Vehicle Router	M2M/IoT Router	M2M/IoT Router
Supports LTE-A	Yes	Yes	With COR Extensibility Dock only	With 2nd modem in COR Extensibility Dock only	No	No
Cloud Management	Yes	Yes	Yes	Yes	Yes	Yes
NetCloud Engine	Yes	Yes	Yes	Yes	No	Yes
Zone-Based Firewall	Yes	Yes	Yes	Yes	Yes	Yes
Zscaler Internet Security Support	Yes	Yes	Yes	Yes	Yes	No
CP Secure Threat Management Support	Yes (FW 6.3.2 and Later)	No	No	Yes	No	No
SIM-Based Auto-Carrier Selection	Yes	Yes	Yes (AT&T, T-Mobile & Verizon only)	No, Carrier Switching via Software-Defined Radios	No	No
Ports (LAN/WAN)	2 / 2 (GigE), 4 with Ext Dock (2 GigE)	3 / 3	2 / 2, 4 with Ext Dock (1 GigE)	2 / 2, 4 with Ext Dock (1 GigE)	2 / 2	1 / 0
Enterprise-Grade Modems	Certified Embedded 3G/4G LTE	Certified Embedded 4G LTE	Certified Embedded 4G LTE	Certified Embedded 4G LTE	Certified Embedded 3G/4G LTE	Certified Embedded 3G/4G LTE
Wireless Broadband Technology	LTE / HSPA+ / EVDO, LTE / HSPA+	LTE / HSPA+ / EVDO, LTE / HSPA+	LTE / HSPA+	4G LTE / 3G EVDO / HSPA+	LTE-only, HSPA+, or LTE / HSPA+ / EVDO	LTE-only, HSPA+, or LTE / HSPA+ / EVDO
WiFi	Dual-band, dual-concurrent WiFi (802.11 a/b/g/n/ac)* Wave 2	Dual-band, dual-concurrent WiFi (802.11 a/b/g/n/ac)*	802.11 b/g/n*	2x2 MIMO 802.11 b/g/n	802.11 b/g/n*	None
GPS	Active GPS with TAIP, NMEA	Active GPS with TAIP, NMEA	None	Passive GPS with TAIP, NMEA	Passive, NMEA	None
SIM Slots	2	2	2	2	1	1 or 2
Housing	Ruggedized	Ruggedized	Semi-Ruggedized	Semi-Ruggedized	Semi-Ruggedized	Industrial plastic
Operating Temperature	-22°F to +158°F (-30°C to 70°C)	-22°F to +158°F (-30°C to 70°C)	-4°F to 140°F (-20°C to 60°C)	-4°F to 140°F (-20°C to 60°C)	-4°F to 140°F (-20°C to 60°C)	32°F to 104°F (0 to 40°C)
Dock Option	COR Extensibility Dock	Dual-Modem Dock	COR Extensibility Dock	COR Extensibility Dock	No	No
Redundant Power Capabale	With COR Extensibility Dock or 9-Wire GPIO Cable	No	With COR Extensibility Dock only	With COR Extensibility Dock only	No	No
GPIOs	2 + 4 with 9-Wire GPIO Cable	2 + 3 with Serial to GPIO Cable	2 + 4 with 9-Wire GPIO Cable	2 + 4 with 9-Wire GPIO Cable	2	No
Ignition Sensing / Sleep Mode	Yes	Yes	Yes	Yes	No	No
Supports FirstNet (Band 14)	With Extensibility Dock	With Dual-Modem Dock	With Extensibility Dock	With Extensibility Dock	No	No

*Non-WiFi version available
**Extended temperature spec power supply required to support full range

CradleCare Support:

From initial device deployment to long-term operations, Cradlepoint Global Support offers world-class resources and expertise to keep your network secure, simple and efficient. Cradlepoint offers multiple tiers of support to provide you exactly what you need.

With Cradlepoint Global Support and CradleCare, you can:

• Maximize revenue through always-on uptime and response times
• Save time with our web-based Connect Portal and Knowledge Base
• Collaborate with our multi-certified technical team
• Maintain PCI Compliance with up-to-date router and modem firmware

The following chart provides an overview of Cradlepoint's support and maintenance offerings:

Included with every Cradlepoint purchase	CradleCare Basic	CradleCare
Web-based Cradlepoint Connect Portal: 24x7x365 access to our Knowledge Base and Firmware download library 12x5 email support (for Enterprise Cloud Manager and NetCloud Gateway only) Knowledge Base access Firmware upgrades Standard warranty with extended warranty options	Included + Covers all products and services 12x5 phone, email and chat support for Cradlepoint routers, ECM and NetCloud Gateway Knowledge Base access Firmware upgrades Standard warranty with extended warranty options	CradleCare Basic + 24x7 qualified phone support and 12x5 email/chat support for Cradlepoint routers, ECM and NetCloud Gateway Advanced Exchange: Next business day replacement Service level targets Assigned Enterprise Support Engineer (for deployments of 50 routers or more) Enterprise engineering resources for network design and best practices implementation Priority consideration of future feature requests and beta trials Knowledge Base access Firmware upgrades Extended Warranty for routers for the term of CradleCare license

Extended Warranties

Extended Warranties can be purchased in subsequent years, and as a follow-on warranty at the conclusion of the standard warranty period. No gap in coverage is allowed: the new warranty must be in place before the existing warranty expires.

Standard One-Year Warranty (With Extended Warranty Option) Includes:

• Access to Cradlepoint Connect portal and Knowledge Base
• Hardware repair/replacement with 3-5 day shipping
• Software bug fixes
• An option to extend your warranty to 2, 3, or 5 years at the conclusion of the standard warranty period*

*Hardware warranties cannot be extended beyond 5 years from the date of purchase.

Documentation:

Download the Cradlepoint COR Series Datasheet (.PDF)

Download the Cradlepoint IBR600C/IBR650C Datasheet (.PDF)

Download the Cradlepoint IBR600C/IBR650C Spec Sheet (.PDF)
