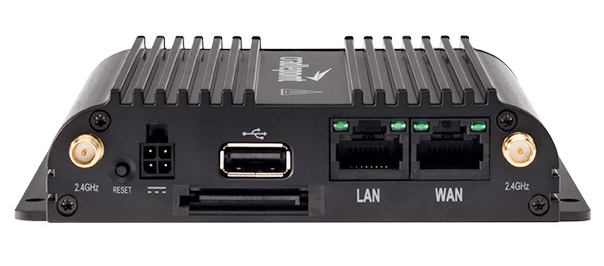

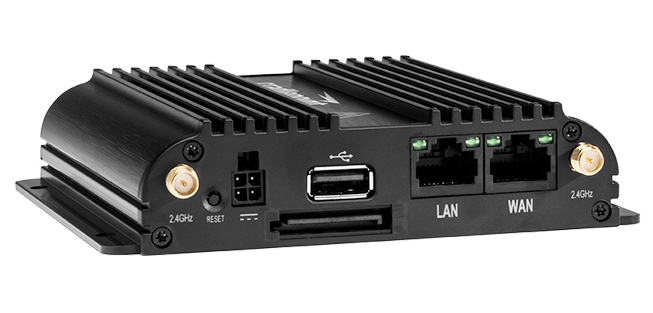

Cradlepoint COR IBR600B
Semi-Ruggedized 4G LTE Router with WiFi for Mission-Critical M2M/IoT & Enterprise Applications That Require 24x7 Connectivity

Cradlepoint COR IBR600B

Sorry, this product is no longer available, please contact us for a replacement.

Click here to jump to more pricing!


Ideal for Kiosks, Surveillance, Digital Signs, and Parallel Networks

Ideal for Kiosks, Surveillance, Digital Signs, and Parallel Networks

The Cradlepoint COR IBR600B Series is a semiruggedized router built for M2M, IoT and industrial networks. With an embedded Category 4 4G LTE modem with HSPA+ failback, the COR IBR600B Series is an affordable, feature-rich compact router designed for critical business and enterprise applications that require 24/7 connectivity. With its compact size, built-in mounting bracket, external mobile broadband and WiFi antennas (IBR600B only), wide temperature spec, shock and vibration certifications, and sleep mode/ignition sensing, the Cradlepoint COR IBR600B Series is ideal for use in high-availability portable or fixed applications like kiosks/ATMs, surveillance, digital signs, and parallel networking.

Cradlepoint COR provides instant network connectivity with a built-in modem—just add a mobile broadband plan or insert an activated SIM (2FF) and go. It also supports traditional wired data networks like DSL, cable, or T1 for maximum network flexibility. Business-continuity features like failover/ failback come standard in Cradlepoint COR. When configured for failover, COR detects network failures and seamlessly switches over to a secondary WAN— keeping your network online.

The Cradlepoint COR IBR600B Series includes an embedded Category 4 LTE modem with HSPA+ failback that offers faster download speeds, dual-SIMs, and SIM-based Auto Carrier Selection for Verizon, T-Mobile and AT&T in the US. As an important element in the Cradlepoint Platform Extensibility, the COR IBR600B Series supports the COR Extensibility Dock accessory, Router SDK and ECM API.

  • For use in 24/7 business-critical applications: kiosks, surveillance cameras, digital signage, parallel networking, and many other industrial/M2M applications
  • Faster: Category 4 modem, faster processor, and Gigabit Ethernet port
  • Embedded Category 4 modem with dual SIMs; supports Verizon, AT&T, and T-Mobile in the US
  • SIM-based Auto-carrier selection for flexibility and faster deployments
  • Cloud-managed for ease of deployment, remote management, and reporting
  • High network availability with automatic failover and failback
  • WiFi (IBR600B) Wireless 2x2 MIMO “N” WiFi (802.11 b/g/n) and no-WiFi (IBR650B) options available
  • Certified for shock and vibration in accordance with MIL STD 810G and SAE J1455—be confident in the device’s ability to survive challenging environments, including vehicles
  • COR Extensibility Dock: Enables additional modem, Ethernet ports, GPIOs, and redundant power
  • Support Extensibility Platform: Extensibility Dock, GPIO cable, Router SDK, ECM API

Mission-Critical Networking for the Most Challenging Environments

Wired and Wireless Routing Platforms for M2M/IoT & In-Vehicle

Keep your vehicles, machines, and IoT networks connected and cloud-managed 24/7 with the Cradlepoint COR Series, the most reliable, capable, and rugged routers in the industry. Purpose-built for the most demanding M2M / IoT and mobile in-vehicle connectivity.

  • Fully integrated with Cradlepoint NetCloud Platform for cloud management and virtual cloud networking.
  • Supported by Cradlepoint Extensibility Platform & SDK to enable an infinite set of applications and capabilities.


Ensure mission-critical connectivity on the move

Key Features:

  • Ruggedized for vibration, shock, dust, splash, humidity
  • Supports LTE Advanced & active GPS
  • Advanced security, VPN, stateful firewall
  • Extensibility Dock for second modem, more ports, etc.
  • Constant network access anywhere

M2M / IoT

The most reliable networking solutions for M2M/IoT

Key Features:

  • Compact form factor & ruggedized for extreme applications
  • Built-in wired & multi-carrier wireless failover
  • Supports advanced routing protocols
  • Extensibility dock for more GPIOs
  • Router SDK enables custom applications

Parallel Networks

Safeguard mission-critical networks such as payment systems, banking & healthcare

Key Features:

  • Air-gapped, highly secure connectivity
  • Simplified, secure network configuration
  • Remote monitoring & alerts
  • Day-1 Internet
  • Decrease PCI scope


Internet Access and Device Connectivity

  • Includes embedded 4G/Cat 4 LTE modem (see product spec sheet for options and specifications)
  • Two Ethernet LAN/WAN ports (one Gigabit Ethernet) for Ethernet-enabled devices or landline Internet
  • Wireless 2x2 MIMO “N” WiFi (802.11 b/g/n)*


  • IPsec VPN (up to 5 concurrent sessions) and GRE Tunneling option, also supports passthrough VPN connections (IPsec, L2TP, PPTP)
  • Layer 2 Tunneling Protocol (L2TP)**
  • WEP, WPA, WPA2, WPA2 Enterprise with AES encryption for secure WiFi*
  • SPI (stateful packet inspection) firewall and NAT (network address translation) to prevent unwanted access to connected computers
  • Zone-based firewall
  • Variety of security features (URL filtering, IP & traffic filtering, DMZ, port forwarding) for safer Internet access
  • Advanced security mode and reporting to facilitate PCIDSS compliance


  • SIM-based Auto Carrier selection + First-time and advanced setup wizards for easy, swift, and secure setup
  • IP passthrough support provides 4G-to-Ethernet adapter
  • Network failover support & load balancing
  • VRRP for enterprise router redundancy**
  • SNMP v1/2c/3, CLI over SSH, and SMS
  • IPv6 support
  • LAN/WAN affinity or Policy Based Routing to assign specific LAN traffic to a WAN
  • Enterprise routing protocols:** BGP, OSPF, RIP
  • Advanced APN management
  • Network Mobility (NEMO) support for session continuity in mobile networks**

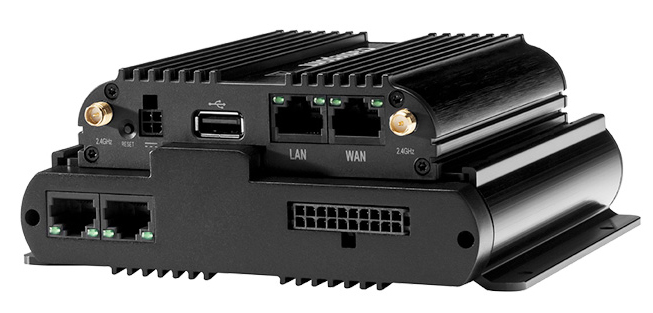

  • COR Extensibility Dock
    • Dual-modem support w/MC400
    • 2 extra 10/100 Ethernet ports
    • 2x10 connector for Extra GPIOs
    • 5V DC 50mA sensor power
    • Redundant power supply-capable
  • USB-to-serial console available
  • +9 wire GPIO cable available with 4 GPIOs ignition sensing and redundant power

*WiFi is only supported on IBR600B models
**Requires an Extended Enterprise License


Increase Internet Availability

  • Multi-carrier 4G LTE support with dual-SIM capability
  • Supports Ethernet (T1, DSL, Cable, MetroE), WiFi-as-WAN, and Metro WiFi
  • Create real-time alerts to monitor network availability

Increase Internet Availability

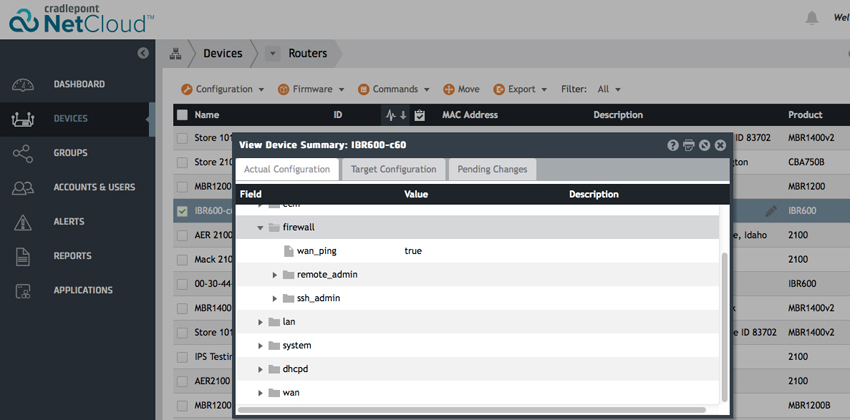

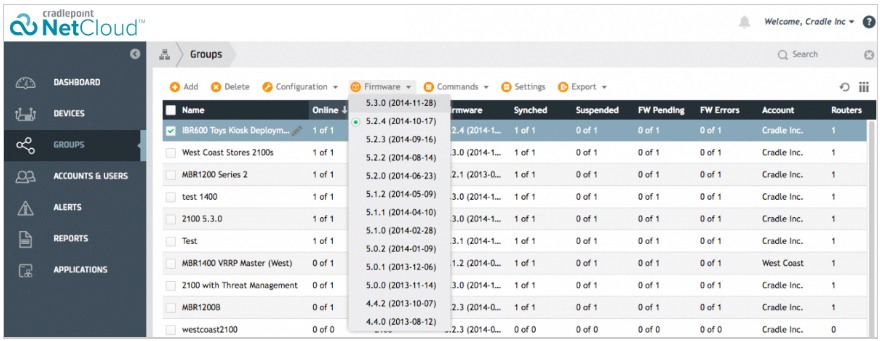

Manage Remotely

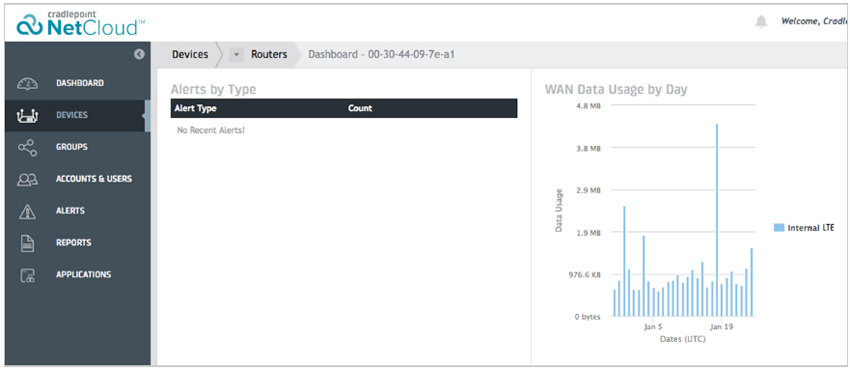

  • Dashboards for at-a-glance network status

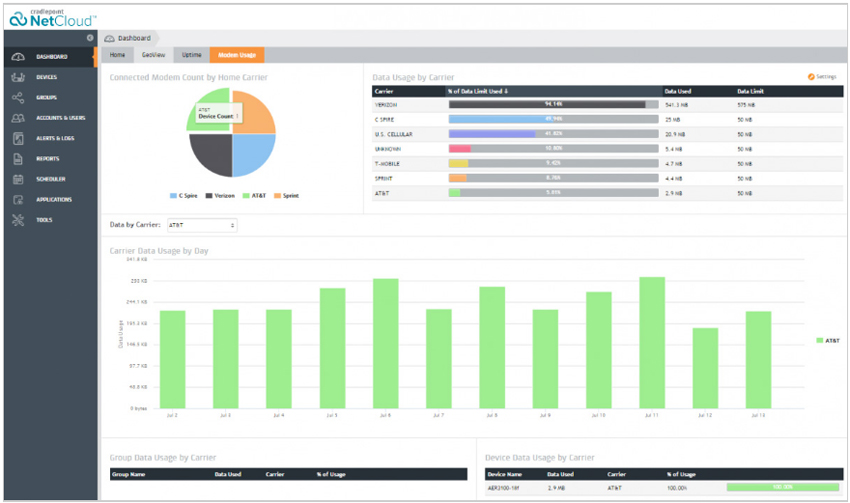

  • Robust analytics to manage, data, and usage
  • Configure, monitor, and manage remotely: individually or in groups

Manage Remotely

Deploy Quickly, Scale, and Lower Installation Costs

  • Increase speed to deployment with “zero-touch” configuration at installation
  • Integrate easily into physical spaces with small form factor

Deploy Quickly, Scale, and Lower Installation Costs

Secure & Protect

  • Stateful firewall to protect sensitive data
  • VPN Tunneling (IPSec, GRE, NAT-less routing, Virtual Server/Port Forwarding, IPv6)
  • Designed for PCI 3.0 compliant network architectures

Secure & Protect


Cradlepoint IBR600B / IBR650B Series Specifications
Technical Specifications
  • Integrated 4G LTE modem (with HSPA+ failover)
  • Dual-modem capable with optional COR Extensibility Dock
  • One 10/100/1000 Ethernet port (WAN or LAN), one 10/100 (WAN or LAN)
LAN One 10/100/1000 Ethernet port (WAN or LAN), one 10/100 Ethernet port (WAN or LAN)
  • Power
  • 2-wire GPIO
  • Two Ethernet LAN or WAN
  • Two cellular antenna connectors (SMA)
  • Two WiFi connectors* (reverse SMA)
  • Cradlepoint COR Extensibility Dock Port/custom cable Port (15-pin) with 4 GPIOs, power input, ignition sensing and 5 V out
  • -20 °C to 60 °C (-4 °F to 140 °F) operating
  • -30 °C to 70 °C (-22 °F to 158 °F) storage
Humidity (non-condensing)
  • 5% to 95% operating
  • 5% to 95% storage
  • IBR600B
    • Idle: 0.17 A @ 12 V
    • Typical: 0.45 A @ 12 V
    • Max: 1.2 A @ 12 V
  • IBR650B
    • Idle: 0.13 A @ 12 V
    • Typical: 0.25 A @ 12 V
    • Max: 1.0 A @ 12 V
  • DC input steady state voltage range: 9–33 V DC
  • Recommended inline fuse for vehicle installations: 1.5 A fast-blow
Size 4.6 × 4.1 × 1.1 in (117 × 104 × 27.3 mm)
Weight 10.1 oz. (285 g)
  • FCC
  • WiFi Alliance*
  • Safety: UL/CUL, CB Scheme, EN60950-1
  • Shock/Vibration/Humidity: compliant with MIL STD 810G and SAEJ1455
  • Materials: WEEE, RoHS, RoHS-2, California Prop 65
  • Vehicle: E-Mark, compliant with ISO 7637-2
  • Telecom: PTCRB/CTIA
  • Carrier certifications (see individual SKUs for additional certifications)
GPS Protocols TAIP and NMEA 0183 V3.0

NOTE: GPS requires COR Extensibility Dock with 2nd modem that supports GPS (MC400LP6, MC400LPE)
Specific Features
  • Cat 4 LTE modem with auto-carrier selection (Verizon, AT&T, T-Mobile)
  • Dual-modem capable with optional COR Extensibility Dock 4G LTE/HSPA+
  • WiFi as WAN
  • Failover/Failback
  • Load Balancing
  • Advanced Modem Failure Check
  • WAN Port Speed Control
  • WAN/LAN Affinity
  • IP Passthrough
  • VLAN 802.1Q
  • DHCP Server, Client, Relay
  • DNS and DNS Proxy
  • DynDNS
  • UPnP
  • DMZ
  • Multicast/Multicast Proxy
  • QoS (DSCP and Priority Queuing)
  • MAC Address Filtering

WiFi (IBR600B Only)

  • 802.11 b/g/n
  • Up to 64 connected devices
  • Two SSIDs
  • WPA2 Enterprise WiFi
  • Hotspot/Captive Portal
  • SSID-based Priority
  • Cradlepoint Enterprise Cloud Manager1
  • Web UI, API, CLI
  • Data Usage Alerts (router and per client)
  • Advanced Troubleshooting (support)
  • Device Alerts
  • SNMP
  • SMS control
  • Auto APN Recovery
VPN and Routing
  • IPsec Tunnel – up to five concurrent sessions
  • L2TP2
  • GRE Tunnel
  • Per-Interface Routing
  • Routing Rules
  • NAT-less Routing
  • Virtual Server/Port Forwarding
  • IPv6
  • VRRP2
  • STP2
  • NHRP2
  • VTI Tunnel support
  • OpenVPN support
  • CP Secure VPN compatible
  • RADIUS and TACACS+ support3
  • 802.1x authentication for Ethernet
  • Zscaler integration2
  • Certificate support
  • ALGs
  • MAC Address Filtering
  • Advanced Security Mode (local user management only)
  • Per-Client Web Filtering
  • IP Filtering
  • Content Filtering (basic)
  • Website Filtering
  • Zone-Based Object Firewall with host address (IP or FQDN), port, and MAC address
What's In The Box
What's In The Box

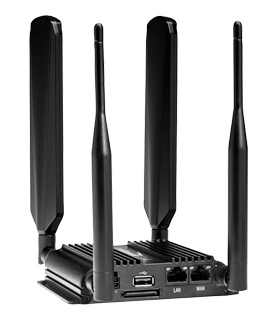

  • COR IBR600B/IBR650B Integrated Broadband Router w/ integrated mounting bracket
  • External 3G/4G mobile broadband modem antennas (2) (SMA), finger tighten only
  • External WiFi antennas (2) reverse SMA*, 5 dBi gain, finger tighten only
  • 12 V / 1.5 A power supply w/ locking connector; GPIO/power cable available
  • Quick Start Guide, regulatory and warranty information
Support and Warranty
Support and Warranty
  • CradleCare Support available in the US and Canada with technical support, software upgrades, and advanced hardware exchange – 1-, 3-, and 5-year options.
  • Three-year limited hardware warranty available world-wide on IBR600B/IBR650B series products when purchased from an approved Cradlepoint Partner or Distributor – extend warranty to 5 years.
  • COR Extensibility Dock (Part # 170700-000)
  • Indoor/Outdoor Panel Patch (Part # 170669-000)
  • Multi-Band Omni-Directional Antenna (Part # 170668-000)
  • Universal 3G/4G/LTE antenna w/ SMA connector (2dBi/3dBi) (Part # 170649-000)
  • Directional Yagi (Log-Periodic) antenna for external (outside) mounting (Part # 170588-000)
  • 12” Mag-mount antenna (Part # 170605-000)
  • 4” Mini mag-mount antenna (Part # 170606-000)
  • COR 2 meter power & GPIO cable (direct wire) (Part # 170585-000)
  • COR vehicle power adapter (Part # 170635-000)
  • COR wall power adapter (Part # 170584-000)

* WiFi is only supported on IBR600B models
1 Enterprise Cloud Manager requires a subscription.
2 Cradlepoint Secure VPN-NAT configuration only
3 Native support for authentication. Authorization and accounting support through hotspot/captive portal services.

Business-Grade Modem Specifications:

Business-Grade Modem

COR IBR600B/IBR650B models include an integrated 4G LTE/HSPA modem.


  • Technology: Category 4 LTE, HSPA+
  • Downlink Rates: LTE 150 Mbps, HSPA+ 42.2 Mbps
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps
  • Frequency Bands:
    • LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz)
    • DC-HSPA+/UMTS Rel. 9, Cat 24: Bands 5 and 2 (850/1900 MHz)
  • Power: LTE 23 dBm ± 1, HSPA+ 23 dBm ± 1
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm2)
  • Industry Standards & Certs: FCC, WiFi Alliance (IBR600B only), Verizon, AT&T, PTCRB, carrier Private Networks
  • SIM: two 2FF slots (secured)

Below is a list of carrier-supplied modems compatible with the IBR600B.


  • USB
    • Cradlepoint MC400LP6
    • Cradlepoint MC400LPE-AT
    • Cradlepoint MC400LP4

Band 14 Public Safety LTE

  • USB
    • Cradlepoint MC400L2

Bell Mobility (CA)

  • USB
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LP6

Rogers (CA)

  • USB
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LP6


  • USB
    • Cradlepoint MC400LP6
    • Cradlepoint MC400LPE-SP
    • Franklin Wireless U772 [Franklin U772 Smart USB Modem]

T-Mobile (USA)

  • USB
    • Cradlepoint MC400LP6
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LPE-GN


  • USB
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LP6


  • USB
    • Cradlepoint MC400LPE-VZ
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LP6

Hardware Specifications:

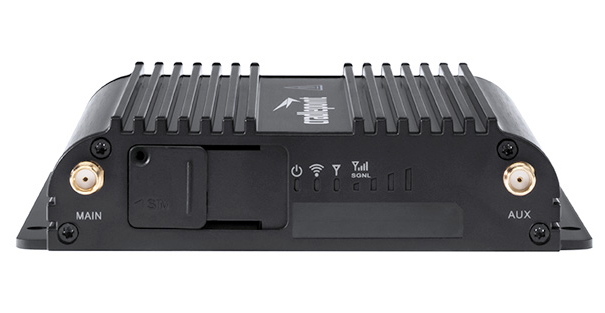

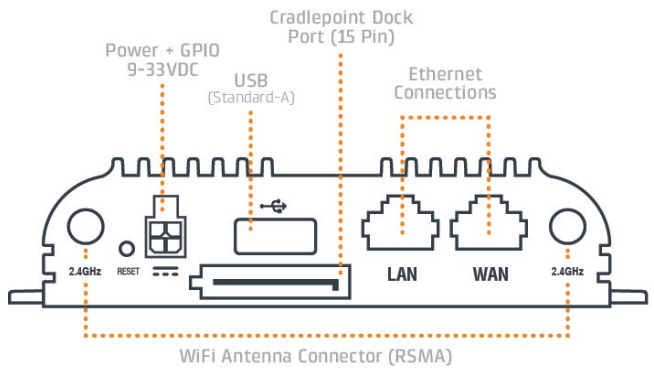

Cradlepoint IBR600B / IBR650B Back Specificaitons

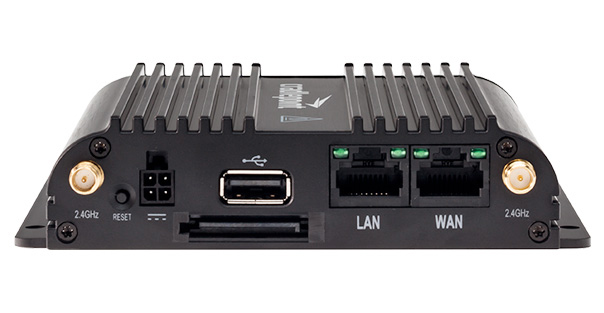

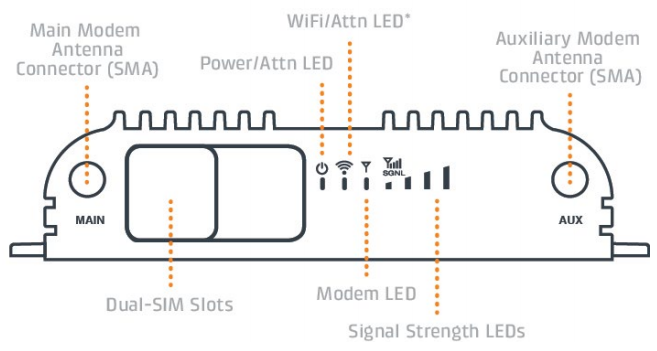

Cradlepoint IBR600B / IBR650B Front Specificaitons


Cradlepoint’s NetCloud

Routing Firmware, Management, & Virtual Cloud Networking for M2M/IoT & In-Vehicle

Cradlepoint’s NetCloud platform combines industry-leading router firmware, award-winning Enterprise Cloud Manager, and the new NetCloud Engine network-as-a-service. This integrated platform of flexible, extensible, and rapidly deployable applications enables an entirely new way to easily build, secure, control, and manage end-to-end private networks in the cloud using wired and wireless broadband Internet services.

NetCloud OS

Firewall, Advanced Routing-Optimized for LTE
Firmware is the heart of our industry leading LTE routers. Sustained commitment to new features and capabilities ensures your network is always up to date and secure.

NetCloud Manager

Quickly Deploy, Manage & Monitor Your Network
Cloud Management Service that enables zero-touch deployment, remote management, alerting, and analytics of in-vehicle routers and IoT gateways.

NetCloud Engine

Software-Defined. Security-Driven. Cloud-Delivered.
NetCloud Engine enables virtual cloud networking that leverages cloud, Software-Defined Networking (SDN), and Network Function Virtualization (NFV) technologies.

Security Applications

Enhance network security with best-in-class applications from Cradlepoint Technology Partners. Create, deploy, and manage network security applications at remote locations with the Cradlepoint NetCloud platform. Improve productivity, reduce costs, and enhance the security intelligence of your network.

Zscaler Internet SecurityZscaler Internet Security

Configured in minutes, best-inclass Zscaler Internet Security protects your organization from web-based threats.

CP Secure Threat ManagementCP Secure Threat Management

A comprehensive intrusion prevention and detection system (IPS/IDS) for full defense-in-depth.

COR Platform Extensibility
COR Platform Extensibility

Cradlepoint Extensibility enables customers and developers to build one-of-a-kind applications and vertical solutions by extending key elements of the Cradlepoint platform. By leveraging our hardware, firmware, and cloud services, developers can add differentiation and unique value to the solutions they offer.

COR Extensibility Dock
Extend select Cradlepoint COR Family routers with an additional modem, additional Ethernet ports, and more general purpose input/outputs (GPIOs).

Router SDK (Open Beta)
Build custom vertical applications securely running at the edge, protected on device, and deployed through the cloud. Manage, deploy, and monitor customer Edge applications from the cloud across the entire fleet.

Developer Community (Open Beta)
Developer Community to leverage knowledge, share, and collaborate with other developers—for a one stop shop.

Cradlepoint’s API provides the building blocks developers need to craft applications that access the data from a software platform.


IoT / M2M & In-Vehicle: COR Routers

Keep machines connected 24x7 with Cradlepoint COR, the industry's most reliable solution for M2M/IoT and Transportation networking.

  IBR900 / IBR950 IBR1100 / IBR1150 IBR600B / IBR650B IBR600C / IBR650C IBR600 / IBR650 IBR350
Router In-Vehicle Router In-Vehicle Router M2M/IoT Router IoT/M2M & In-Vehicle Router M2M/IoT Router M2M/IoT Router
Supports LTE-A Yes Yes With COR Extensibility Dock only With 2nd modem in COR Extensibility Dock only No No
Cloud Management Yes Yes Yes Yes Yes Yes
NetCloud Engine Yes Yes Yes Yes No Yes
Zone-Based Firewall Yes Yes Yes Yes Yes Yes
Zscaler Internet Security Support Yes Yes Yes Yes Yes No
CP Secure Threat Management Support Yes
(FW 6.3.2 and Later)
No No Yes No No
SIM-Based Auto-Carrier Selection Yes Yes Yes (AT&T, T-Mobile & Verizon only) No, Carrier Switching via Software-Defined Radios No No
Ports (LAN/WAN) 2 / 2 (GigE), 4 with Ext Dock (2 GigE) 3 / 3 2 / 2, 4 with Ext Dock (1 GigE) 2 / 2, 4 with Ext Dock (1 GigE) 2 / 2 1 / 0
Enterprise-Grade Modems Certified Embedded
Certified Embedded
Certified Embedded
Certified Embedded
Certified Embedded
Certified Embedded
Wireless Broadband Technology LTE / HSPA+ / EVDO, LTE / HSPA+ LTE / HSPA+ / EVDO, LTE / HSPA+ LTE / HSPA+ 4G LTE / 3G EVDO / HSPA+ LTE-only, HSPA+, or LTE / HSPA+ / EVDO LTE-only, HSPA+, or LTE / HSPA+ / EVDO
WiFi Dual-band, dual-concurrent WiFi (802.11 a/b/g/n/ac)*
Wave 2
Dual-band, dual-concurrent WiFi (802.11 a/b/g/n/ac)* 802.11 b/g/n* 2x2 MIMO 802.11 b/g/n 802.11 b/g/n* None
GPS Active GPS with TAIP, NMEA Active GPS with TAIP, NMEA None Passive GPS with TAIP, NMEA Passive, NMEA None
SIM Slots 2 2 2 2 1 1 or 2
Housing Ruggedized Ruggedized Semi-Ruggedized Semi-Ruggedized Semi-Ruggedized Industrial plastic
Operating Temperature -22°F to +158°F
(-30°C to 70°C)
-22°F to +158°F
(-30°C to 70°C)
-4°F to 140°F
(-20°C to 60°C)
-4°F to 140°F
(-20°C to 60°C)
-4°F to 140°F
(-20°C to 60°C)
32°F to 104°F
(0 to 40°C)
Dock Option COR Extensibility Dock Dual-Modem Dock COR Extensibility Dock COR Extensibility Dock No No
Redundant Power Capabale With COR Extensibility Dock or 9-Wire GPIO Cable No With COR Extensibility Dock only With COR Extensibility Dock only No No
GPIOs 2 + 4 with 9-Wire GPIO Cable 2 + 3 with Serial to GPIO Cable 2 + 4 with 9-Wire GPIO Cable 2 + 4 with 9-Wire GPIO Cable 2 No
Ignition Sensing / Sleep Mode Yes Yes Yes Yes No No
Supports FirstNet (Band 14) With Extensibility Dock With Dual-Modem Dock With Extensibility Dock With Extensibility Dock No No

*Non-WiFi version available
**Extended temperature spec power supply required to support full range

CradleCare Support:

CradleCare SupportFrom initial device deployment to long-term operations, Cradlepoint Global Support offers world-class resources and expertise to keep your network secure, simple and efficient. Cradlepoint offers multiple tiers of support to provide you exactly what you need.

With Cradlepoint Global Support and CradleCare, you can:

  • Maximize revenue through always-on uptime and response times
  • Save time with our web-based Connect Portal and Knowledge Base
  • Collaborate with our multi-certified technical team
  • Maintain PCI Compliance with up-to-date router and modem firmware

The following chart provides an overview of Cradlepoint's support and maintenance offerings:

Included with every Cradlepoint purchase CradleCare Basic CradleCare

Web-based Cradlepoint Connect Portal:

  • 24x7x365 access to our Knowledge Base and Firmware download library
  • 12x5 email support (for Enterprise Cloud Manager and NetCloud Gateway only)
  • Knowledge Base access
  • Firmware upgrades
  • Standard warranty with extended warranty options

Included +

  • Covers all products and services
  • 12x5 phone, email and chat support for Cradlepoint routers, ECM and NetCloud Gateway
  • Knowledge Base access
  • Firmware upgrades
  • Standard warranty with extended warranty options

CradleCare Basic +

  • 24x7 qualified phone support and 12x5 email/chat support for Cradlepoint routers, ECM and NetCloud Gateway
  • Advanced Exchange: Next business day replacement
  • Service level targets
  • Assigned Enterprise Support Engineer (for deployments of 50 routers or more)
  • Enterprise engineering resources for network design and best practices implementation
  • Priority consideration of future feature requests and beta trials
  • Knowledge Base access
  • Firmware upgrades
  • Extended Warranty for routers for the term of CradleCare license

Extended Warranties

Extended Warranties can be purchased in subsequent years, and as a follow-on warranty at the conclusion of the standard warranty period. No gap in coverage is allowed: the new warranty must be in place before the existing warranty expires.

Standard One-Year Warranty (With Extended Warranty Option) Includes:

  • Access to Cradlepoint Connect portal and Knowledge Base
  • Hardware repair/replacement with 3-5 day shipping
  • Software bug fixes
  • An option to extend your warranty to 2, 3, or 5 years at the conclusion of the standard warranty period*

*Hardware warranties cannot be extended beyond 5 years from the date of purchase.


Download the Cradlepoint COR Series Datasheet (.PDF)

Download the Cradlepoint IBR600B/IBR650B Datasheet (.PDF)

Download the Cradlepoint IBR600B/IBR650B Spec Sheet (.PDF)

Pricing Note:
