Cradlepoint COR IBR350
3G/4G LTE M2M Gateway Designed for IoT Connectivity

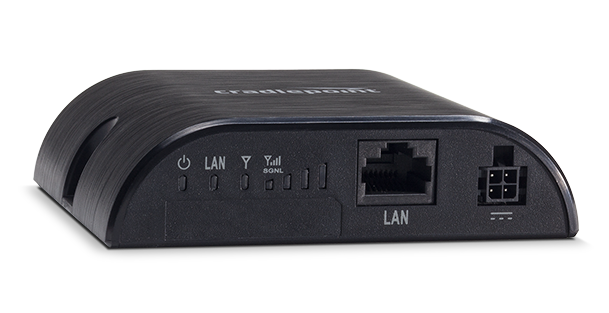

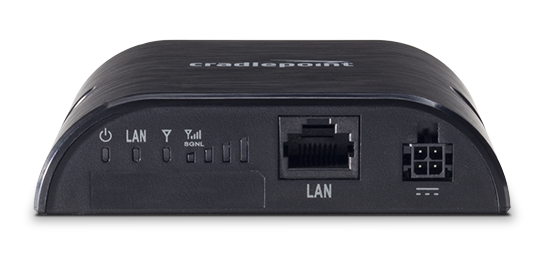

Cradlepoint COR IBR350

Sorry, this product is no longer available, please contact us for a replacement.

Overview:

The Cradlepoint COR IBR350 Series is an affordable, compact, high performance 4G LTE gateway designed for mission critical connectivity to the Internet of Things. Ideal for connecting M2M applications like kiosks, ATMs, and digital signage, this cloud-managed solution allows organizations the ability to scale deployments quickly and manage their distributed networks easily.

With a carrier-certified, integrated modem for enterprise-grade availability, the COR IBR350 delivers high-speed connectivity with a form factor and feature set suited for the Internet of Things. Cradlepoint’s industry-leading Modem Health Management (MHM) optimizes signal strength, defining the industry standard for reliability in cellular routing. Using Enterprise Cloud Manager, network administrators have the ability to configure, monitor, and manage their deployments through the cloud.

  • Cloud-managed for remote management, configuration, and monitoring
  • Integrated 4G LTE or HSPA+ or LTE/HSPA+/EVDO modem for enterprise-grade connectivity
  • Compact form factor
  • 10/100 Ethernet port
  • Modem Health Management (MHM) to optimize modem connectivity
  • Purpose-built for PCI Compliance in distributed network architectures
  • IPSec VPN Tunneling, GRE
  • NAT-less routing, Virtual Server/Port Forwarding, IPv6
  • XLTE Support (IBR350L-VZ and IBR350LPE-VZ only)

Mission-Critical Networking for the Most Challenging Environments

Wired and Wireless Routing Platforms for M2M/IoT & In-Vehicle

Keep your vehicles, machines, and IoT networks connected and cloud-managed 24/7 with the Cradlepoint COR Series, the most reliable, capable, and rugged routers in the industry. Purpose-built for the most demanding M2M / IoT and mobile in-vehicle connectivity.

  • Fully integrated with Cradlepoint NetCloud Platform for cloud management and virtual cloud networking.
  • Supported by Cradlepoint Extensibility Platform & SDK to enable an infinite set of applications and capabilities.

In-Vehicle

Ensure mission-critical connectivity on the move

Key Features:

  • Ruggedized for vibration, shock, dust, splash, humidity
  • Supports LTE Advanced & active GPS
  • Advanced security, VPN, stateful firewall
  • Extensibility Dock for second modem, more ports, etc.
  • Constant network access anywhere

M2M / IoT

The most reliable networking solutions for M2M/IoT

Key Features:

  • Compact form factor & ruggedized for extreme applications
  • Built-in wired & multi-carrier wireless failover
  • Supports advanced routing protocols
  • Extensibility dock for more GPIOs
  • Router SDK enables custom applications

Parallel Networks

Safeguard mission-critical networks such as payment systems, banking & healthcare

Key Features:

  • Air-gapped, highly secure connectivity
  • Simplified, secure network configuration
  • Remote monitoring & alerts
  • Day-1 Internet
  • Decrease PCI scope

Benefits:

Increase Bandwidth

  • High-speed 4G LTE for the most demanding applications
  • Modem Health Management (MHM) to ensure always-on connectivity
  • XLTE support for more coverage

Increase Internet Availability

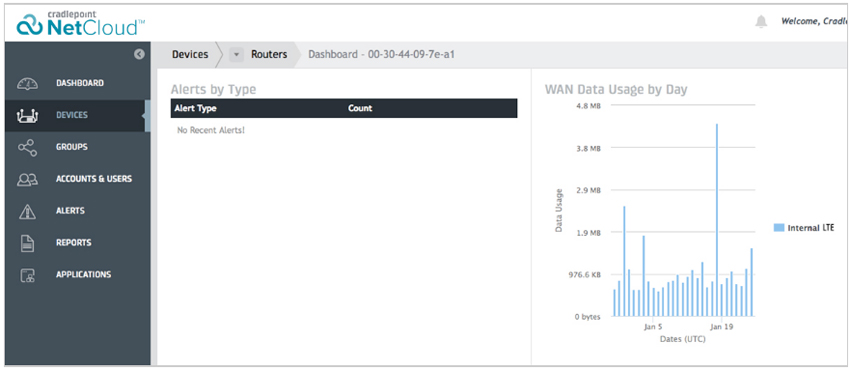

Manage Remotely

  • Robust analytics to manage performance, data, and usage
  • Configure, monitor, and manage remotely
  • Create real-time alerts to monitor network availability

Manage Remotely

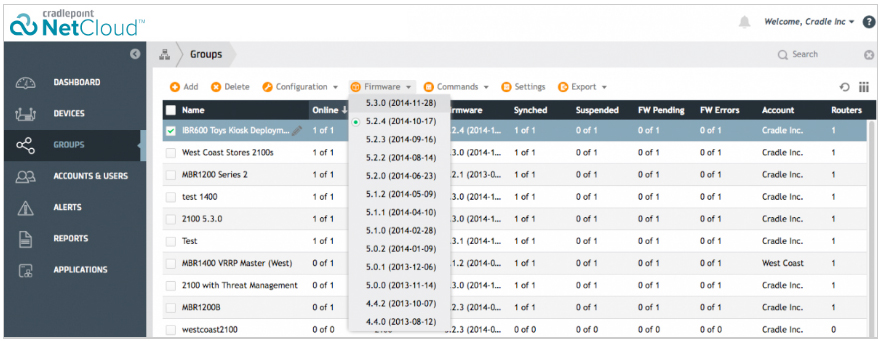

Deploy Quickly, Scale, and Lower Installation Costs

  • Increase speed to deployment with “zero-touch” configuration at installation
  • Integrate easily into physical spaces with small form factor

Deploy Quickly, Scale, and Lower Installation Costs

Secure & Protect

  • Stateful firewall to protect sensitive data
  • VPN Tunneling (IPSec, GRE, NAT-less routing, Virtual Server/Port Forwarding, IPv6)
  • Designed for PCI 3.0 compliant network architectures

Secure & Protect

Specifications:


Cradlepoint IBR350 Series Specifications
Technical Specifications
WAN
  • Embedded HSPA+ or LTE/HSPA+/EVDO modem
  • Dual-SIM slots
LAN One LAN 10/100 Ethernet port
Ports
  • Power
  • One Ethernet LAN
  • Two cellular antenna connectors (SMA)
Temperature 0 °C to 40 °C operating
Humidity (non-condensing)
  • 5% to 95% operating
  • 5% to 95% storage
Power 12 VDC / 1 A adapter
Size 3.0 in × 3.7 in × 1.0 in (76.5 mm × 94.5 mm × 24.5 mm)
Weight 4 oz
Housing Plastic
Certifiication
  • PTCRB, GCF-CC, FCC, IC, CE, Carrier, others pending
  • Safety: UL/CUL
  • Materials: WEEE, RoHS, RoHS-2, California Prop 65
Specific Features
WAN
  • HSPA+ or LTE/HSPA+/EVDO
  • Advanced Modem Failure Check
  • Standby
LAN
  • VLAN 802.1Q
  • DHCP Server, Client, Relay
  • DNS and DNS Proxy
  • DynDNS
  • UPnP
  • DMZ
  • Multicast/Multicast Proxy
  • QoS (DSCP and Priority Queuing)
  • MAC Address Filtering
Management
  • Cradlepoint Enterprise Cloud Manager1
  • Web UI, API, CLI
  • Data Usage Alerts (router and per client)
  • Advanced Troubleshooting (support)
  • Device Alerts
  • SNMP
  • SMS control
VPN and Routing
  • IPsec Tunnel – up to two concurrent sessions
  • GRE Tunnel
  • Routing Rules
  • NAT-less Routing
  • Virtual Server/Port Forwarding
  • IPv6
  • CP Secure VPN compatible2
Security
  • RADIUS and TACACS+ support3
  • 802.1x authentication for Ethernet
  • Certificate support
  • ALGs
  • MAC Address Filtering
  • Advanced Security Mode (local user management only)
  • Per-Client Web Filtering
  • IP Filtering
  • Content Filtering (basic)
  • Website Filtering
  • Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address
Cloud Optimized IP Communications
  • QoS allows prioritization of VoIP services
  • SIP ALG and NAT to allow VoIP and UC communications to traverse firewall
  • MAC Address Filtering
  • 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN
  • Private Network support
  • Cloud-based management1
What's In The Box
What's In The Box
  • M2M router with embedded business-class HSPA+ or LTE/HSPA+/EVDO modem; includes integrated mounting holes
  • 12 VDC / 1 A power adapter (1.5 meter cord)
  • Two modem antennas
  • Quick Start Guide with warranty and regulatory information
Support and Warranty
Support and Warranty
  • CradleCare Support available with technical support, software upgrades, and advanced hardware exchange – 1-, 3-, and 5-year options
  • One-year limited hardware warranty available in the US and Canada – extend warranty to 2, 3, or 5 years
Accessories
Accessories
  • Universal 3G/4G multi-band cellular modem antenna – 2 dBi / 3 dBi (Part # 170649-000)
  • Replacement cellular paddle antenna (▲) (for IBR350P2 only) - 2 dBi (Part #170555-000)
  • Directional Patch antennas for external (outside) mounting (Part # 170587-000)
  • Directional Yagi (Log-Periodic) antennas for external (outside) mounting (Part # 170588-000)
  • Omni-directional antennas for external (outside) mounting (Part # 170586-000)
  • 12" Mag-mount antenna (Part # 170605-000)
  • 4" Mini mag-mount antenna (Part # 170606-000)
  • Barrel to 4-pin power adapter (Part # 170665-000)

1 Enterprise Cloud Manager requires a subscription.
2 Cradlepoint Secure VPN-NAT configuration only
3 Native support for authentication. Authorization and accounting support through hotspot/captive portal services.

Business-Grade Modem Specifications:

COR IBR350 models include an embedded LTE/HSPA+/EVDO or HSPA+ modem – specific model names include a specific modem (e.g., the COR IBR350LPE-VZ includes a Verizon 4G LTE modem with 3G EVDO fallback).

Please note that LPE models are flexible and support bands for multiple cellular providers; however, only the frequency bands in bold below are supported by the listed provider.

COR IBR350LPE-VZ – 4G LTE/HSPA+/EVDO for Verizon

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS: (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE: (850/900/1800/1900 MHz)
    • CDMA EVDO: Rev A/1xRTT (800/1900 MHz)
  • Power: LTE 23 dBm ± 1, HSPA+ 23 dBm ± 1, EVDO 24 dBm +0.5/−1 (typical conducted)
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm2)
  • Industry Standards & Certs: PTCRB, FCC, IC, UL, Verizon
  • SIM: two 2FF slots
  • GPS: passive GPS support

COR IBR350LPE-AT – 4G LTE/HSPA+/EVDO for AT&T

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS: (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE: (850/900/1800/1900 MHz)
    • CDMA EVDO: Rev A/1xRTT (800/1900 MHz)
  • Power: LTE 23 dBm ± 1, HSPA+ 23 dBm ± 1, EVDO 24 dBm +0.5/−1 (typical conducted)
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm)
  • Industry Standards & Certs: PTCRB, FCC, IC, UL, AT&T
  • SIM: two 2FF slots
  • GPS: passive GPS support

COR IBR350LPE-SP – 4G LTE/HSPA+/EVDO for Sprint

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS: (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE: (850/900/1800/1900 MHz)
    • CDMA EVDO: Rev A/1xRTT (800/1900 MHz)
  • Power: LTE 23 dBm ± 1, HSPA+ 23 dBm ± 1, EVDO 24 dBm +0.5/−1 (typical conducted)
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm2)
  • Industry Standards & Certs: PTCRB, FCC, IC, UL
  • SIM: two 2FF slots
  • GPS: passive GPS support

COR IBR350LPE-GN – 4G LTE/HSPA+/EVDO (generic – for use on T-Mobile in the U.S. and Rogers, Bell, & TELUS in Canada)

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE: Band 2 (1900 MHz), Band 4 (AWS), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS: (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE: (850/900/1800/1900 MHz)
    • CDMA EVDO: Rev A/1xRTT (800/1900 MHz)
  • Power: LTE 23 dBm ± 1, HSPA+ 23 dBm ± 1, EVDO 24 dBm +0.5/−1 (typical conducted)
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm)
  • Industry Standards & Certs: PTCRB, FCC, IC, UL
  • SIM: two 2FF slots
  • GPS: passive GPS support

COR IBR350P2/IBR350P2-INTL*

  • Technology: HSPA+
  • Downlink Rates: HSPA+ 21 Mbps (theoretical)
  • Uplink Rates: HSPA+ 5.76 Mbps (theoretical)
  • Frequency Bands:
    • HSPA+/UMTS: (850/900/1900/2100 MHz)
    • GSM/GPRS/EDGE: (850/900/1800/1900 MHz)
  • Module Power: UMTS 23dBm ± 1 (typical conducted)
  • Module Antennas: two SMA male (plug), 2 dBi gain; finger tighten only; maximum torque spec is 7 kgf/cm2
  • Industry Standards & Certs: PTCRB, GCF-CC, FCC, IC, CE; (others pending)
  • Model: S3A519A
  • SIM: two 2FF slots

* Includes International Adapter Clips (US, UK, EU, AU)

Hardware Specifications:

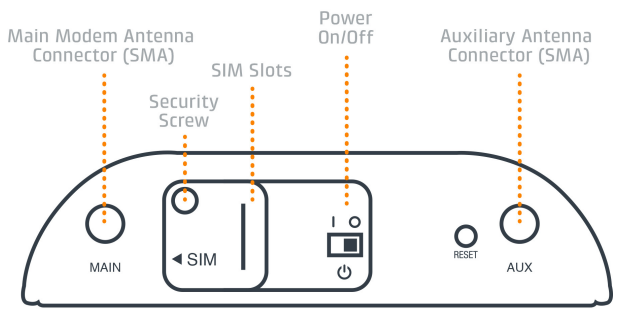

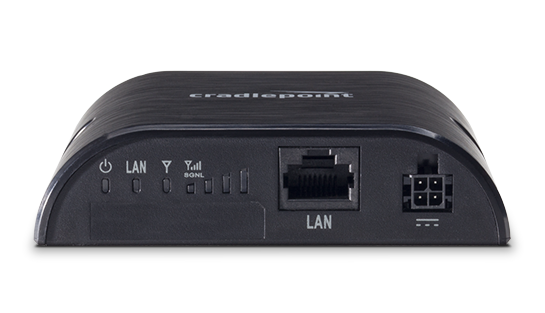

Cradlepoint IBR350 Front Specificaitons

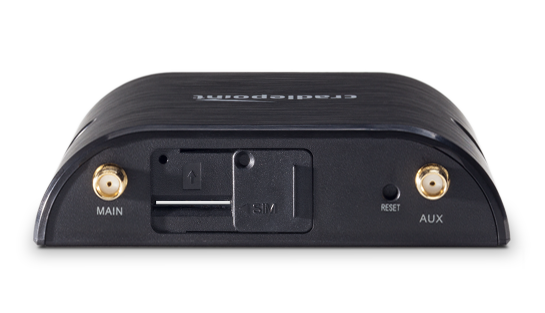

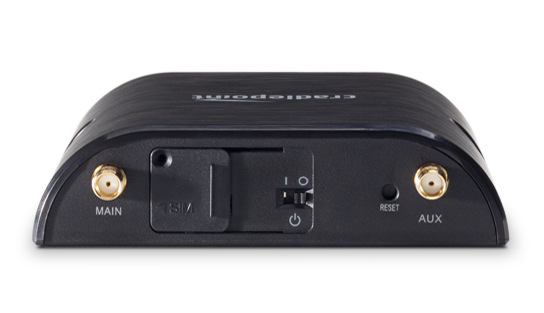

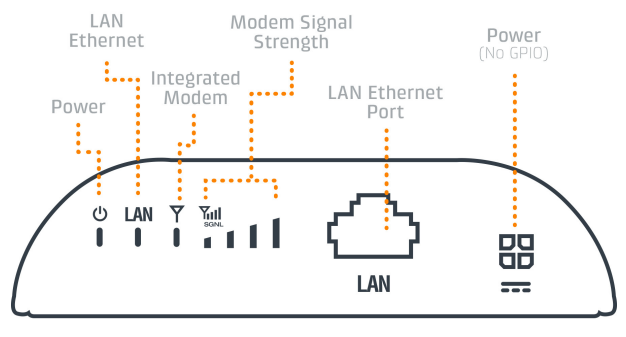

Cradlepoint IBR350 Back Specificaitons

Software:

Cradlepoint’s NetCloud

Routing Firmware, Management, & Virtual Cloud Networking for M2M/IoT & In-Vehicle

Cradlepoint’s NetCloud platform combines industry-leading router firmware, award-winning Enterprise Cloud Manager, and the new NetCloud Engine network-as-a-service. This integrated platform of flexible, extensible, and rapidly deployable applications enables an entirely new way to easily build, secure, control, and manage end-to-end private networks in the cloud using wired and wireless broadband Internet services.

NetCloud OS

Firewall, Advanced Routing-Optimized for LTE
Firmware is the heart of our industry leading LTE routers. Sustained commitment to new features and capabilities ensures your network is always up to date and secure.

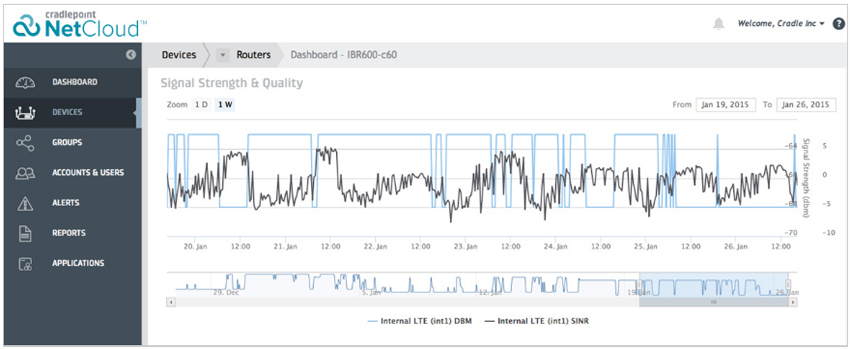

NetCloud Manager

Quickly Deploy, Manage & Monitor Your Network
Cloud Management Service that enables zero-touch deployment, remote management, alerting, and analytics of in-vehicle routers and IoT gateways.

NetCloud Engine

Software-Defined. Security-Driven. Cloud-Delivered.
NetCloud Engine enables virtual cloud networking that leverages cloud, Software-Defined Networking (SDN), and Network Function Virtualization (NFV) technologies.

Security Applications

Enhance network security with best-in-class applications from Cradlepoint Technology Partners. Create, deploy, and manage network security applications at remote locations with the Cradlepoint NetCloud platform. Improve productivity, reduce costs, and enhance the security intelligence of your network.

Zscaler Internet SecurityZscaler Internet Security

Configured in minutes, best-inclass Zscaler Internet Security protects your organization from web-based threats.

CP Secure Threat ManagementCP Secure Threat Management

A comprehensive intrusion prevention and detection system (IPS/IDS) for full defense-in-depth.

COR Platform Extensibility
COR Platform Extensibility

Cradlepoint Extensibility enables customers and developers to build one-of-a-kind applications and vertical solutions by extending key elements of the Cradlepoint platform. By leveraging our hardware, firmware, and cloud services, developers can add differentiation and unique value to the solutions they offer.

COR Extensibility Dock
Extend select Cradlepoint COR Family routers with an additional modem, additional Ethernet ports, and more general purpose input/outputs (GPIOs).

Router SDK (Open Beta)
Build custom vertical applications securely running at the edge, protected on device, and deployed through the cloud. Manage, deploy, and monitor customer Edge applications from the cloud across the entire fleet.

Developer Community (Open Beta)
Developer Community to leverage knowledge, share, and collaborate with other developers—for a one stop shop.

ECM API
Cradlepoint’s API provides the building blocks developers need to craft applications that access the data from a software platform.

Compare:

IoT / M2M & In-Vehicle: COR Routers

Keep machines connected 24x7 with Cradlepoint COR, the industry's most reliable solution for M2M/IoT and Transportation networking.

  IBR900 / IBR950 IBR1100 / IBR1150 IBR600B / IBR650B IBR600C / IBR650C IBR600 / IBR650 IBR350
Router In-Vehicle Router In-Vehicle Router M2M/IoT Router IoT/M2M & In-Vehicle Router M2M/IoT Router M2M/IoT Router
Supports LTE-A Yes Yes With COR Extensibility Dock only With 2nd modem in COR Extensibility Dock only No No
Cloud Management Yes Yes Yes Yes Yes Yes
NetCloud Engine Yes Yes Yes Yes No Yes
Zone-Based Firewall Yes Yes Yes Yes Yes Yes
Zscaler Internet Security Support Yes Yes Yes Yes Yes No
CP Secure Threat Management Support Yes
(FW 6.3.2 and Later)		 No No Yes No No
SIM-Based Auto-Carrier Selection Yes Yes Yes (AT&T, T-Mobile & Verizon only) No, Carrier Switching via Software-Defined Radios No No
Ports (LAN/WAN) 2 / 2 (GigE), 4 with Ext Dock (2 GigE) 3 / 3 2 / 2, 4 with Ext Dock (1 GigE) 2 / 2, 4 with Ext Dock (1 GigE) 2 / 2 1 / 0
Enterprise-Grade Modems Certified Embedded
3G/4G LTE		 Certified Embedded
4G LTE		 Certified Embedded
4G LTE		 Certified Embedded
4G LTE		 Certified Embedded
3G/4G LTE		 Certified Embedded
3G/4G LTE
Wireless Broadband Technology LTE / HSPA+ / EVDO, LTE / HSPA+ LTE / HSPA+ / EVDO, LTE / HSPA+ LTE / HSPA+ 4G LTE / 3G EVDO / HSPA+ LTE-only, HSPA+, or LTE / HSPA+ / EVDO LTE-only, HSPA+, or LTE / HSPA+ / EVDO
WiFi Dual-band, dual-concurrent WiFi (802.11 a/b/g/n/ac)*
Wave 2		 Dual-band, dual-concurrent WiFi (802.11 a/b/g/n/ac)* 802.11 b/g/n* 2x2 MIMO 802.11 b/g/n 802.11 b/g/n* None
GPS Active GPS with TAIP, NMEA Active GPS with TAIP, NMEA None Passive GPS with TAIP, NMEA Passive, NMEA None
SIM Slots 2 2 2 2 1 1 or 2
Housing Ruggedized Ruggedized Semi-Ruggedized Semi-Ruggedized Semi-Ruggedized Industrial plastic
Operating Temperature -22°F to +158°F
(-30°C to 70°C)		 -22°F to +158°F
(-30°C to 70°C)		 -4°F to 140°F
(-20°C to 60°C)		 -4°F to 140°F
(-20°C to 60°C)		 -4°F to 140°F
(-20°C to 60°C)		 32°F to 104°F
(0 to 40°C)
Dock Option COR Extensibility Dock Dual-Modem Dock COR Extensibility Dock COR Extensibility Dock No No
Redundant Power Capabale With COR Extensibility Dock or 9-Wire GPIO Cable No With COR Extensibility Dock only With COR Extensibility Dock only No No
GPIOs 2 + 4 with 9-Wire GPIO Cable 2 + 3 with Serial to GPIO Cable 2 + 4 with 9-Wire GPIO Cable 2 + 4 with 9-Wire GPIO Cable 2 No
Ignition Sensing / Sleep Mode Yes Yes Yes Yes No No
Supports FirstNet (Band 14) With Extensibility Dock With Dual-Modem Dock With Extensibility Dock With Extensibility Dock No No

*Non-WiFi version available
**Extended temperature spec power supply required to support full range

CradleCare Support:

CradleCare SupportFrom initial device deployment to long-term operations, Cradlepoint Global Support offers world-class resources and expertise to keep your network secure, simple and efficient. Cradlepoint offers multiple tiers of support to provide you exactly what you need.

With Cradlepoint Global Support and CradleCare, you can:

  • Maximize revenue through always-on uptime and response times
  • Save time with our web-based Connect Portal and Knowledge Base
  • Collaborate with our multi-certified technical team
  • Maintain PCI Compliance with up-to-date router and modem firmware

The following chart provides an overview of Cradlepoint's support and maintenance offerings:

Included with every Cradlepoint purchase CradleCare Basic CradleCare

Web-based Cradlepoint Connect Portal:

  • 24x7x365 access to our Knowledge Base and Firmware download library
  • 12x5 email support (for Enterprise Cloud Manager and NetCloud Gateway only)
  • Knowledge Base access
  • Firmware upgrades
  • Standard warranty with extended warranty options

Included +

  • Covers all products and services
  • 12x5 phone, email and chat support for Cradlepoint routers, ECM and NetCloud Gateway
  • Knowledge Base access
  • Firmware upgrades
  • Standard warranty with extended warranty options

CradleCare Basic +

  • 24x7 qualified phone support and 12x5 email/chat support for Cradlepoint routers, ECM and NetCloud Gateway
  • Advanced Exchange: Next business day replacement
  • Service level targets
  • Assigned Enterprise Support Engineer (for deployments of 50 routers or more)
  • Enterprise engineering resources for network design and best practices implementation
  • Priority consideration of future feature requests and beta trials
  • Knowledge Base access
  • Firmware upgrades
  • Extended Warranty for routers for the term of CradleCare license

Extended Warranties

Extended Warranties can be purchased in subsequent years, and as a follow-on warranty at the conclusion of the standard warranty period. No gap in coverage is allowed: the new warranty must be in place before the existing warranty expires.

Standard One-Year Warranty (With Extended Warranty Option) Includes:

  • Access to Cradlepoint Connect portal and Knowledge Base
  • Hardware repair/replacement with 3-5 day shipping
  • Software bug fixes
  • An option to extend your warranty to 2, 3, or 5 years at the conclusion of the standard warranty period*

*Hardware warranties cannot be extended beyond 5 years from the date of purchase.

Documentation:

Download the Cradlepoint COR Series Datasheet (.PDF)

Download the Cradlepoint IBR350 Datasheet (.PDF)

Download the Cradlepoint IBR350 Spec Sheet (.PDF)
